Heat Dissipating Nano Copper Foil Sheet for PCB High Conductive Carbon Coated

Product Details:

Place of Origin:	Shanghai, China (Mainland)
Brand Name:	JIMA
Certification:	SGS,ROHS，IOS
Model Number:	CU0035

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	13~16 usd per kg
Packaging Details:	wooden box
Delivery Time:	20-30 days
Supply Ability:	600 ton per month

Contact Now

Detailed Product Description

Thickness::	0.1mm~200mm	Cu (Min)::	99.90%
Application:	Electrical, Electronic，shield/roofing，MRI Scanning Room	Elongation (≥ %)::	35
Surface:	Polished	Sampe:	Free
Color:	Copper And Black
Highlight:	polished copper sheet , copper film , copper foil sheet for pcb

Heat Dissipating Nano Copper Foil Sheet for PCB High Conductive Carbon Coated

Name: Heat Dissipating Nano Copper Foil Sheet for PCB High Conductive Carbon Coated
Brand: JIMA Copper
SKU: CU0035
Price: 14.00 USD
Availability: InStock

Copper foil sheet products introduction
Shanghai Metal Corporation is an international manufacturer and supplier for copper sheet. We produce slitting, edging, and oscillate winding copper to fit your specific requirements.

We are capable of producing a wide variety of precision strip products to special requirements, geared to handle high volumes with tight tolerances. Continuous strip-casting machines produce long, weld-free coils of uniform composition and properties, and automatic electronic gauge-controls maintain consistent thickness.

Quick Details Description

Application:	Electrical, Electronic,shield/roofing,MRI scanning room
Thickness range:	0.1mm~200mm
Shape:	coil,roll
Width range:	20~2500mm
Material:	Brass
Grade:	Nano Carbon Copper Foil, Pure Copper
Cu (Min):	99.90%
Ultimate Strength (≥ MPa):	220--400
Elongation (≥ %):	35
Surface:	Polished
Sample	Free

Copper Copper Foil Physical Property
Density: 8.9g/cm3
Electrical conductivity (20°C): min 90%IACS for annealed to temper min 80%IACS for rolled to temper
Thermal conductivity (20°C): 610W/(m°C)
Elastic modulus: 118000N/m
Softening temperature: ≥380°C

Copper Foil Applicantion
Widely used for copper foil for transformers, digital cameras, cell phones, DVD, HVD precision electronic products, computer communications, wires, cables, high-frequency transmission, isolation, electromagnetic interference. Circuit
turns the path, because of excellent electrical conductivity of copper, used for low attenuation requirements, performance
is better than copper foil mylar and other high-frequency attenuation: 10-25GHz.

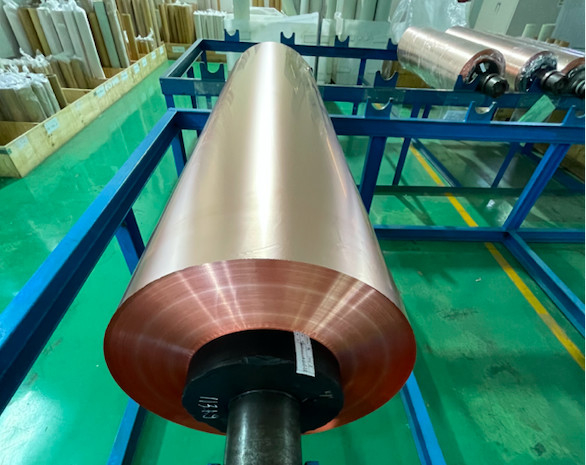

Copper Foil Products Picture

Heat Dissipating Nano Copper Foil Sheet for PCB High Conductive Carbon Coated 2

Packaging Details:
A: Inner Packing:
Cut roll: printed core and shrink wrapping
Original roll: cardboard wrapping
B: Outer Packing:
Cut roll: carton
Original roll: carton + pallet / wood case

Detail Introduction

Material	Copper foil, Nanocarbon, Thermal materials
Color	Black/Copper
Grade	SGS, ROHS, Reach
Used	Thermal conductive, high temperature, Led, PC, Heat sink...etc
Thickness	55um, 75um
Thermal Conductivity	560w/mk
Material	Nano Carbon
Brand	KINGBALI
Usage	Electronic products ,Digital products,Cell phone products,Auto Industry.
others	The size and shape can as customer requirement.
others	Best die-cut Nano Carbon Material Sheet to mount various of precison molded parts.
Features	1.Excellent resistance to heat (dry air), at +260º C continuous and +260º C intermittent.Remains flexible at low temperatures of -40ºC.
	2.Resistant to ultra-violet light, ozone and weathering processing,pharma ceutical and cosmetic manufacturing area.
	3.Good electrical insulation properties
	4.Keep constant even at high temperatures.
	5.Resistance to chemicals; moderate resistance to general chemical products.
Sample	Free samples & Freight Charges will be returned after deal.
Lead time	15 workdays for Nano Carbon Material Sheet
Delivery	FOB Shanghai ,CFR,CIF
Payment	L/C or TT

Heat Dissipating Nano Copper Foil Sheet for PCB High Conductive Carbon Coated 3
