| Place of Origin: | China |
| Brand Name: | JIMA Copper |
| Certification: | SGS,ROHS |
| Model Number: | CU0035 |
| Minimum Order Quantity: | 50kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 30 days |
| Supply Ability: | 500 ton per month |
| Cu (Min):: | 99.90% | Application: | Faraday Cage, Electromagnetic Shielding, Integrated Circuit (IC) Packaging, Printed Circuit Board (PCB), Lithium-ion Battery, Solar Cell, Transformer And Motor, Radio Frequency Identification (RFID) Tag. |
|---|---|---|---|

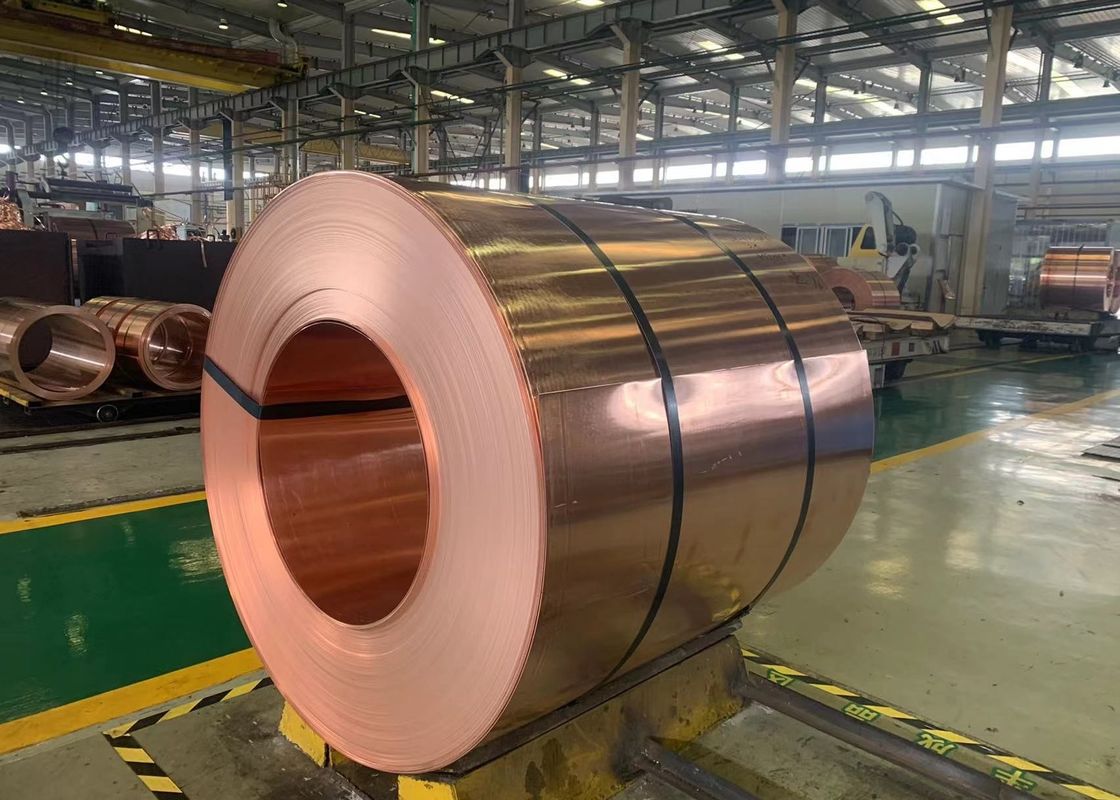

| Item: | Electromagnetic Shielding Copper Strip C1220 C12200 CU DHP CW024A SF Cu | Sample: | Trial Sample 100kgs |
| Max. Width: | Max.1310mm | Core ID: | 80MM 300MM 400MM 500MM |
| Highlight: | C12200 Copper Strip,Cw024a Copper Strip,C1220 Copper Strip |
||
● Alloy/grade:C1220 C12200 CU DHP CW024A SFCu
● Temper: Annealed;half Hard and Hard
● Width: Max. Width 1300-1310mm ,and can be custom as any width request
● Core ID:76mm;80mm,152mm;500mm
●Standard Export Wooden Box Package
●CU content:Min.99.95%
Faraday cage, electromagnetic shielding, integrated circuit (IC) packaging, printed circuit board
(PCB), lithium-ion battery, solar cell, transformer and motor, radio frequency identification (RFID) tag.
Features:
1,Good electrical conductivity.
2,High thermal conductivity.
3,Good processability.
4,Good welding performance.
5,Corrosion resistance.
Product Specification:
Rang and Tolerance Products
|
|||||
Thicness(mm)
|
Tolerance(mm)
|
Width(mm)
|
Tolerance(mm)
|
Panel length(mm)
|
Tolerance(mm)
|
0.1~0.15
|
±0.003
|
17~90
|
±0.03
|
800~2000
|
±1
|
0.16~0.4
|
±0.005
|
91~150
|
±0.05
|
|
|
0.41~0.8
|
±0.015
|
151~300
|
±0.1
|
|
|
0.8~1.5
|
±0.03
|
301~830
|
±0.2
|
|
|
1.51~3.0
|
±0.05
|
|
|
|
|
Chemical Composition
|
|||||
Cu
|
Pb
|
Fe
|
Zn
|
P
|
O
|
≥99.90
|
——
|
——
|
——
|
0.015~0.040
|
——
|
Physical Properties
|
|||||
Specific
(g/cm2)
|
Cofficient of thermal expansion
(x10-6/k)
|
thermal conductivity
(w/(m*k)
|
Electrical conductivity
(%IACS)
|
Resistivity
(uΩ.cm)
|
Modulus of elasticity
(KN/mm2)
|
8.94
|
17.6
|
340
|
≥79
|
2.18
|
135
|
Typical Parameter:
Property
|
Value
|
Description
|
Conductivity
|
Min. 97%
|
Minimum conductivity percentage.
|
Shape
|
Strip
|
Shape of the product is strip.
|
Width
|
20mm - 1400mm
|
Range of widths available.
|
Thickness
|
0.07mm - 4mm
|
Range of thicknesses available.
|
Material
|
Copper
|
Material used is copper.
|
Hardness
|
Soft Temper, Hard Temper
|
Available in soft and hard temper.
|
Parameter
|
Unit
|
Value
|
Description
|
Tensile Strength
|
kg/mm²
|
≥25.0
|
At room temperature.
|
Elongation
|
%
|
≥5.0
|
At room temperature.
|
Leakage Points
|
points/m²
|
No
|
No leakage points per square meter.
|
Quality of electrical resistivity
|
Ω·g/m²
|
≤0.162
|
Electrical resistivity quality.
|
Anti-Oxidization Performance
|
/
|
No Oxidization
|
At 160 centigrade for 30 minutes.
|
Width Tolerance
|
mm
|
1290.0±1.0 / 1320.0±1.0 / 1370.0±1.0
|
Width tolerance values for different widths.
|
Q1: What is the Brand Name of the Copper Strip?
A1: The Brand Name of the Copper Strip is JIMA Copper.
Q2: Where is the Place of Origin of the Copper Strip?
A2: The Place of Origin of the Copper Strip is China.
Q3: What is the Certification of the Copper Strip?
A3: The Certification of the Copper Strip is ISO9001 SGS RoHS2.
Q4: What is the Minimum Order Quantity of the Copper Strip?
A4: The Minimum Order Quantity of the Copper Strip is 50KGS.
Q5: What is the Price of the Copper Strip?
A5: The Price of the Copper Strip is USD10~20.
