| Place of Origin: | China |
| Brand Name: | JIMA |
| Certification: | SGS,ROHS |
| Model Number: | CU0035 |
| Minimum Order Quantity: | 50kg |
|---|---|
| Price: | 15 usd per kg |
| Packaging Details: | wooden box |
| Delivery Time: | 30 days |
| Supply Ability: | 500 ton per month |
| Cu (Min):: | 99.95% | Application: | Faraday Cage, Electromagnetic Shielding, Integrated Circuit (IC) Packaging, Printed Circuit Board (PCB), Lithium-ion Battery, Solar Cell, Transformer And Motor, Radio Frequency Identification (RFID) Tag. |
|---|---|---|---|
| Sample: | Trial Sample 100kgs | Width Sheet: | Max.1310mm |
| Core ID: | 500mm 152mm 76mm 80mm 300mm | Temper: | Hard, Half Hard ,SOFT,R220,Annealed |
| Highlight: | TU2 Copper Oxide,1310mm Width Copper Strip,C1020 Copper Oxide |
||
Copper Oxide C103 C1020 OF Cu TU1 TU2 T1:
C10100 vs C10200
C10200 alloy
Astm C10200
C10200 copper alloy
C10200 copper sheet
Copper 10200
C10200 composition
C10200 copper coil
Copper Oxide Suppier Detail :
1. Material : C103 C1020 OF Cu TU1 TU2 T1
2. Temper : Hard ;Half Hard ; SOFT;R220;Annealed ; 1/2-hard ;R240 ; Hard
3. Core ID: 76MM,80mm,152MM 300mm,500mm
4. Max. roll weight : 1500kgs/roll
5, Trial sample min.quantity :50-100kgs
6. Typical big width : 914mm,1000mm, 1250mm,1300mm,1310mm
7. Standard export wooden box
8.Application:Faraday cage, electromagnetic shielding, integrated circuit (IC) packaging, printed circuit
board (PCB), lithium-ion battery, solar cell, transformer and motor, radio frequency identification
(RFID) tag.
9. Width range :20mm-1310mm
10. Inner package : vacuum packaging
Feture :
Good stability, reactivity, moderate density, high melting point.
C-10200 copper Specification :
Rang and Tolerance Products
|
|||||
Thicness(mm)
|
Tolerance(mm)
|
Width(mm)
|
Tolerance(mm)
|
Panel length(mm)
|
Tolerance(mm)
|
0.1~0.15
|
±0.003
|
17~90
|
±0.03
|
800~2000
|
±1
|
0.16~0.4
|
±0.005
|
91~150
|
±0.05
|
|
|
0.41~0.8
|
±0.015
|
151~300
|
±0.1
|
|
|
0.8~1.5
|
±0.03
|
301~830
|
±0.2
|
|
|
1.51~3.0
|
±0.05
|
|
|
|
|
Chemical Composition
|
|||||
Cu
|
Pb
|
Fe
|
Zn
|
P
|
O
|
≥99.95
|
——
|
——
|
——
|
——
|
——
|
Physical Properties
|
|||||
Specific
(g/cm2)
|
Cofficient of thermal expansion
(x10-6/k)
|
thermal conductivity
(w/(m*k)
|
Electrical conductivity
(%IACS)
|
Resistivity
(uΩ.cm)
|
Modulus of elasticity
(KN/mm2)
|
8.94
|
17
|
391
|
≥100
|
1.724
|
117.2
|
C-10200 copper other features:
Data Category
|
Details
|
Range and Tolerance Products - Thickness (3.1 - 6.0 mm)
|
±0.08
|
Range and Tolerance Products - Width (for thickness 3.1 - 6.0 mm range, width 831 - 1500 mm)
|
±0.3
|
Range and Tolerance Products - Panel length (for thickness 3.1 - 6.0 mm range)
|
±2
|
Chemical Composition - Sn
|
——
|
Chemical Composition - Ni
|
——
|
Chemical Composition - Al
|
——
|
Physical Properties - Melting Point (°C)
|
1083
|
Physical Properties - Hardness (HV)
|
50 - 80
|
Physical Properties - Yield Strength (MPa)
|
60 - 100
|
Physical Properties - Tensile Strength (MPa)
|
180 - 250
|

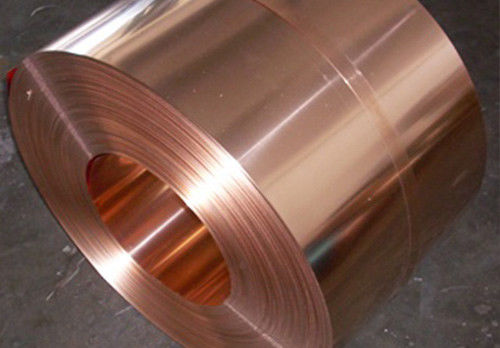

C-10200 copper Photos:
Inner Package :vacuum packaging
Stadnard Export Wooden Box Package:
