Name: 0.28mm Copper Strip Foil C110 Cu ETP CW004A CU58 C11000
Brand: JIMA Copper
SKU: CU0035
Price: 15 USD
Availability: InStock

Home Products Copper Strip

0.28mm Copper Strip Foil C110 Cu ETP CW004A CU58 C11000

Product Details:

Place of Origin:	China
Brand Name:	JIMA
Certification:	SGS,ROHS
Model Number:	CU0035

Payment & Shipping Terms:

Minimum Order Quantity:	50kg
Price:	15 usd per kg
Packaging Details:	wooden box
Delivery Time:	30 days
Supply Ability:	500 ton per month

Contact Now

Detailed Product Description

Cu (Min)::	99.95%	Application:	Faraday Cage,RF MRI Shieding / RFI/EMI Chembers,builds MRI Rooms ,RF Shielded Rooms
Sample:	Trial Sample 100kgs	Width Sheet:	Max.1310mm
Core ID:	500mm 152mm 76mm 80mm 300mm	Temper:	Hard, Half Hard ,SOFT,R220,Annealed
Highlight:	ETP Copper strip Foil , C110 Copper strip Foil , 0.28mm Copper strip Foil

0.28mm Copper Strip Foil C110 Cu ETP CW004A CU58 C11000


ETP Copper

cu etp copper foil

cu-etp copper

etp copper

c11000 h02

c110 copper sheet

c110 copper plate

copper c110

Copper Foil Strip Suppier Detail :

1. Material : C110 Cu ETP CW004A CU58 C11000

2. Temper : Hard ;Half Hard ; SOFT;R220;Annealed ; 1/2-hard ;R240 ; Hard

3. Core ID: 76MM,80mm,152MM 300mm,500mm

4. Max. roll weight : 1500kgs/roll

5. Width range :20mm-1310mm

5, Trial sample min.quantity :50-100kgs

6. Typical big width : 914mm,1000mm, 1250mm,1300mm,1310mm

7. Inner package : vacuum packaging

8. Standard export wooden box

C-110 copper Specification :

Thick Copper Plate
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥3.5-8	400-620	≤1800	Annealed(R220);1/2-hard (R240 );Hard
T2( CU-ETP,C1100,CW004A);T3(C1221)	>8-15	400-620	≤1500	Annealed(R220);1/2-hard (R240 );Hard
Width Copper Sheet
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥0.5-3.5	600-1400	500-3200	Annealed(R220);1/2-hard (R240 ); Hard
Width Copper Strip
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥0.3-0.5	300-1400	C	Annealed(R220);1/2-hard (R240);Hard
T2( CU-ETP,C1100,CW004A);T3(C1221)	>0.5-3.5	300-1400	C	Annealed(R220);1/2-hard (R240) ;1/4-hard;Hard
Thin Copper Strip
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥0.05-0.4	30-300	C	Annealed(R220);Hard
T2( CU-ETP,C1100,CW004A);T3(C1221)	>0.4-2.0	100-300	C	Annealed(R220);1/2-hard (R240) ;Hard

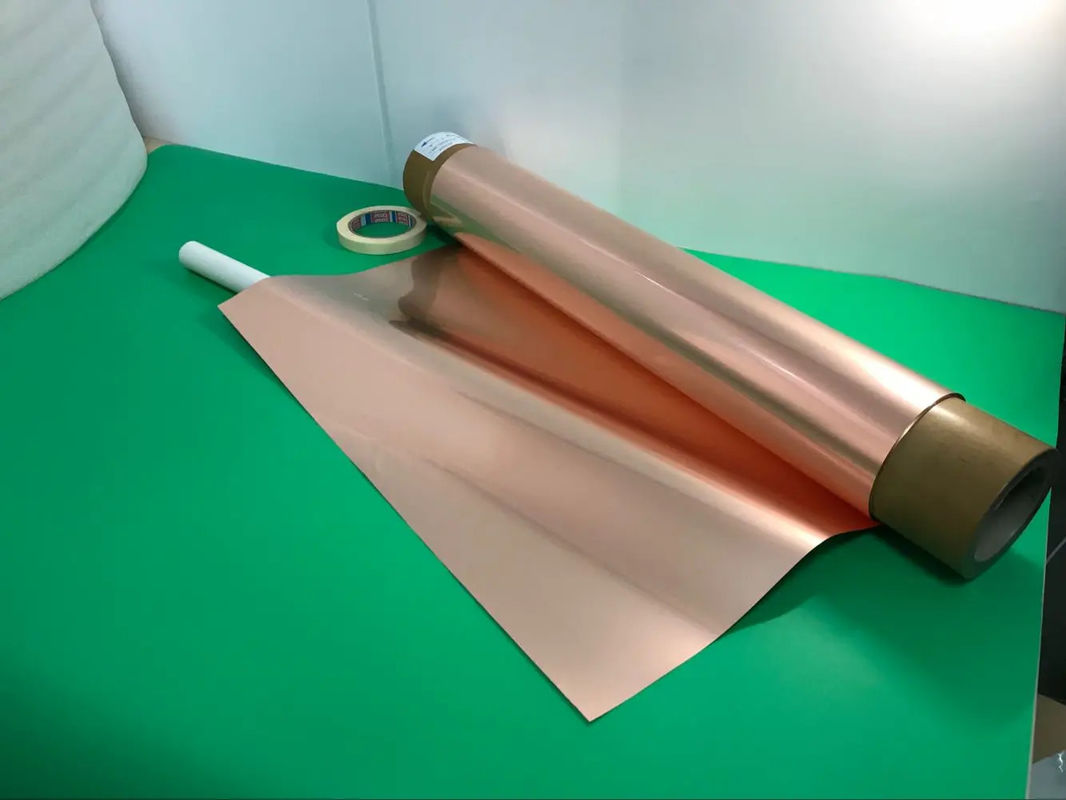

C110 H02 Copper Photos:

0.14mm Copper Foil Package Photos:

Inner Package :Vacuum Packaging

0.28mm Copper Strip Foil C110 Cu ETP CW004A CU58 C11000 1

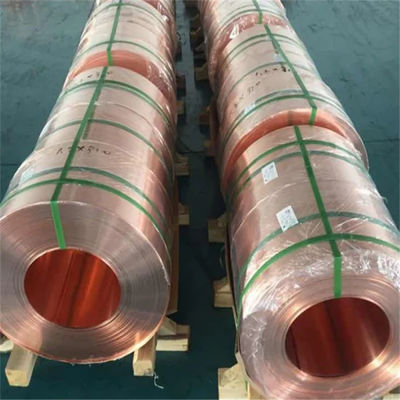

Stadnard Export Wooden Box Package:

0.28mm Copper Strip Foil C110 Cu ETP CW004A CU58 C11000 2
