Ultra Wide Thin Narrow Copper Strip 2mm-1310mm Industrial Grade

Product Details:

Place of Origin:	China
Brand Name:	JIMA Copper
Certification:	SGS,ROHS
Model Number:	CU0035

Payment & Shipping Terms:

Minimum Order Quantity:	50kg
Price:	Negotiation
Packaging Details:	wooden box
Delivery Time:	30 days
Supply Ability:	500 ton per month

Contact Now

Detailed Product Description

Cu (Min)::	99.90%	Item:	Copper Strip 2mm-1310mm Industrial Grade
Sample:	Available	Width Rangecan Supply:	2mm-1310mm ,and Can Be Cutting As Any Width Request
Application:	Electrical Field Wire And Cable Manufacturing Motor And Transformer Manufacturing Electronic Component Manufacturing	Specificities:	Ultra Wide Thin Narrow
Highlight:	2mm Copper Strip , Thin Copper Strip , 1310mm Copper Strip

Ultra Wide Thin Narrow Copper Strip 2mm-1310mm Industrial Grade

About JIMA Copper

JIMA Copper specialized in supply high precision copper foil,copper strip,copper sheet,and Annual production capacity of

155,000 tons

Main products: Cu-ETP copper strip,Cu-ETP copper plate,new energy battery with copper strip,Radio frequency cable copper

strip,the solar energy copper strip,high oxygen annealed copper strip,Transformer copper strip,C10100 oxygen-free copper

strip etc

Product Details

1,Typical Alloy/Grade:C11000 CU-ETP T2 2.0065 CW004A C11000 E-Cu58; C10200,C1200,C1220

2,Temper: Annealed;1/2 Hard,Half Hard, 1/4 Hard and Hard

3,Width: Width 2mm-1310mm ,and can be cutting as any width request

4,Core ID:80mm,152mm,305mm,400mm,500mm

5,Standard Export Wooden Box Package

Specificaition Range & Tolerance Range Products

Thickness	Tolerance	Width	Tolerance	Sheet Length	Toleranee
0.1～0.15	±0.003	17～90	±0.03	800～2000	±1
0.16～0.4	±0.005	91～150	±0.05
0.41～0.8	±0.015	151～300	±0.1
0.8～1.5	±0.03	301～1350	±0.2
1.51～3.0	±0.05
Remarks:Please contact us before if there are any special requirements on tolerance of products.

Chemieal Composition & Physical Properties

Alloy	Cu	P	0	g/cm²	%IACS	μΩ.cm	KN/mm²
Alloy	Cu	P	0	Specific Gravity	Electrical Conductivity	Resistivity	Modulus of Elasticity
C11000	≥99.90	..	..	8.94	≥98	1.75	117
C10200	≥99.95	≤0.001	≤0.001	8.94	≥100	1.724	117.2
C12000	≥99.90	0.004～0.012	..	8.94	≥90	1.91	135
C12200	≥99.90	0.015～0.040	..	8.94	≥79	2.18	135

Copper Strip Mechanical Properties

Alloy

Temper

Tensile Strength Rm/(N/mm²)

ElongtionA11.3/%

Hardness

GB

JIS

ASTM

GB

JIS

ASTM

GB

JIS

ASTM

GB

JIS

ASTM

GB(HV)

JIS(HV)

ASTM(HR)

T2

C1100

C11000

≥195

≥195

≤235

≥30

≥30

≤70

Y4

1/4H

H01

215-275

215-285

235-290

≥25

≥20

60-90

55-100

Y₂

1/2H

H02

245-345

235-315

255-315

≥8

≥10

80-110

75-120

295-380

≥275

≥3

90-120

≥80

≥350

≥110

TU1

≥195

≥30

≤70

Y4

215-275

≥25

60-90

Y2

245-345

≥8

80-110

295-380

≥3

90-120

≥350

≥110

TU2

≥195

≥30

≤70

Y4

215-275

≥25

60-90

Y₂

245-345

≥8

80-110

295-380

≥3

90-120

≥350

≥110

TU3

C1020

C10200

H00

≥195

≥195

200-275

≥30

≥20

≤70

Y4

1/4H

H01

215-275

215-285

235-295

≥25

≥15

60-90

55-100

Y₂

1/2H

H02

245-345

235-315

255-315

≥8

≥10

80-110

75-120

H03

≥275

285-345

≥80

H04

295-380

295-360

≥3

90-120

H06

325-385

H08

≥350

345-400

≥110

H10

≥360

TP1

C1200

C12000

H00

≥195

≥195

200-275

≥30

≥20

≤70

一

Y4

1/4H

H01

215-275

215-285

235-295

≥25

≥15

60-90

55-100

Y₂

1/2H

H02

245-345

235-315

255-315

≥8

≥10

80-110

75-120

H03

≥275

285-345

≥80

H04

295-380

295-360

≥3

90-120

H06

325-385

一

H08

≥350

345-400

≥110

H10

≥360

TP2

C1220

C12200

H00

≥195

≥195

200-275

≥30

≥20

≤70

一

Y4

1/4H

H01

215-275

215-285

235-295

≥25

≥15

60-90

55-100

Y₂

1/2H

H02

245-345

235-315

255-315

≥8

≥10

80-110

75-120

H03

≥275

285-345

≥80

H04

295-380

295-360

≥3

90-120

H06

325-385

H08

≥350

345-400

≥110

H10

≥360

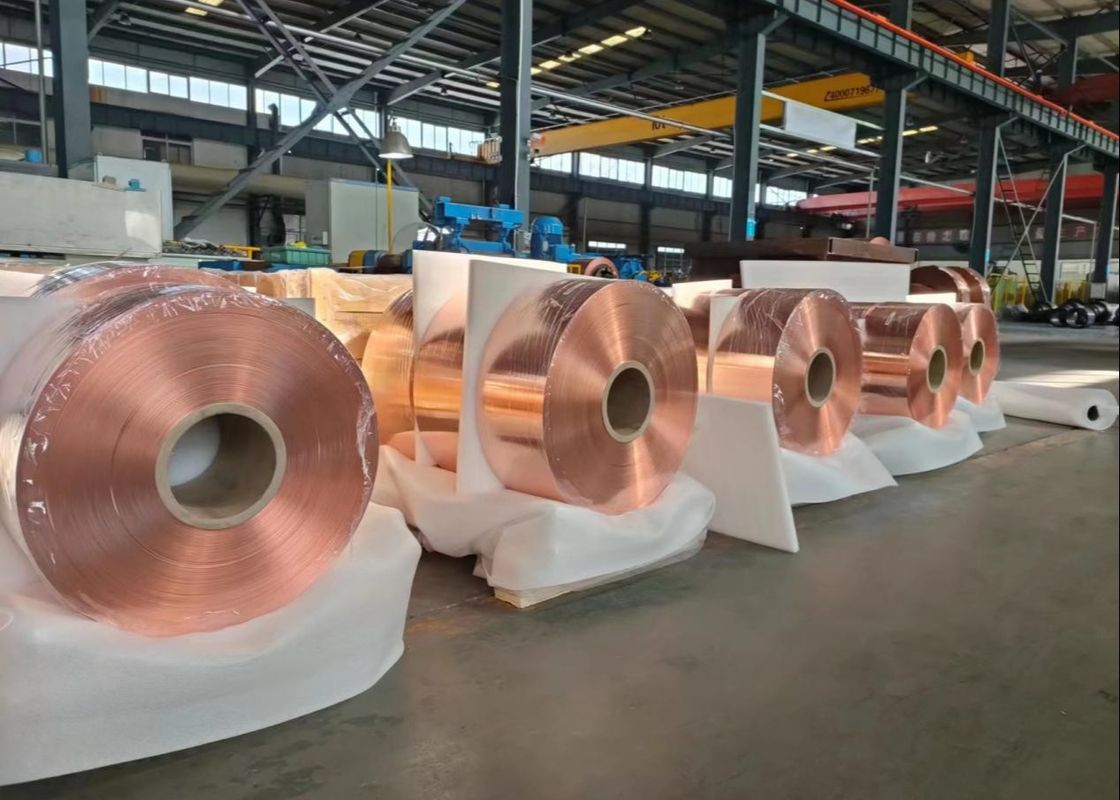

Copper Strip Supplier Picture

Ultra Wide Thin Narrow Copper Strip 2mm-1310mm Industrial Grade 0

Ultra Wide Thin Narrow Copper Strip 2mm-1310mm Industrial Grade 1
