| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | RACULP-S-B/G/R |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Ton per month |
| Purity: | 99.95% | Pinholes: | None |
|---|---|---|---|
| Storage Condition: | T≤25℃,RH≤60%,180 Days | Thickness: | 9μm，10μm，12μm，15μm，20μm，1/2 Oz,3/4 Oz,1 Oz |
| High Light: | copper foil sheet,copper sheet roll |
||

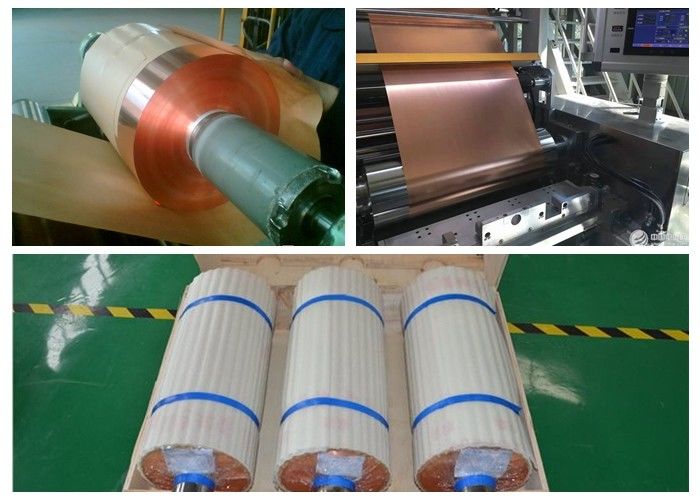

Color uniformity Thickness 0.009 (9um) RA Roll soft annealed copper foil For Mylar tape
Quickly details
. Double side shiny
. Thickness:0.009mm,9um
. Width: 5-620 mm
. Length: Max 5000 meter.
Features:
1. Eco-friendly products and processes.
2. Excellent uniformity and infiltration.
Application:
. Mylar tape
. Conductive tape
. EMI tape
Compare between CA copper foil and ED copper foil
. Process: Rolled copper foil be produced with Rolling process, ED copper foil be produced with Electrodeposition process.
. Strength toughness: Rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.
Package:wooden carton
FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Technical data sheet of Copper foil for Mylar tape
| Thickness | 0.009-0.09mm | Width≤620mm | ||||||||
| Item | Unit |
Parameter |
||||||||
| Thickness | MM | 0.009 | 0.012 | 0.020 | 0.035 | 0.07 | 0.09 | |||
| Grade | － | C1100 | C1100 | C1100 | C1100 | C1100 | C1100 | |||
|
Copper content |
% | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | ≥99.95 | |||
| Area Weight | g/㎡ | 80±2 | 107±4 | 178±6 | 311±10 | 623±19 | 801±24 | |||
| Roughness | (RA) | Um | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||
|
Tensile Strength |
Temper soft (O) | Mpa | 150-180 | 160-200 | 180-220 | 200-230 | 210-240 | 220-260 | ||
|
Elongation(%) |
Temper soft (O) | % | ≥5 | ≥6 | ≥8 | ≥15 | ≥20 | ≥25 | ||
| Inter diameter | mm | 3in,6in,80mm | ||||||||
| Storage condition | － | T≤25℃,RH≤60%,180 days | ||||||||
Remark:Other thickness products can be customized
Contact Person: JIMA Annie
