Name: 8um 10um 12um Thickness Customized Size Copper Foil Roll
Brand: JIMA Copper
SKU: CU0035
Price: 15.00 USD
Availability: InStock

Home Products Copper Strip

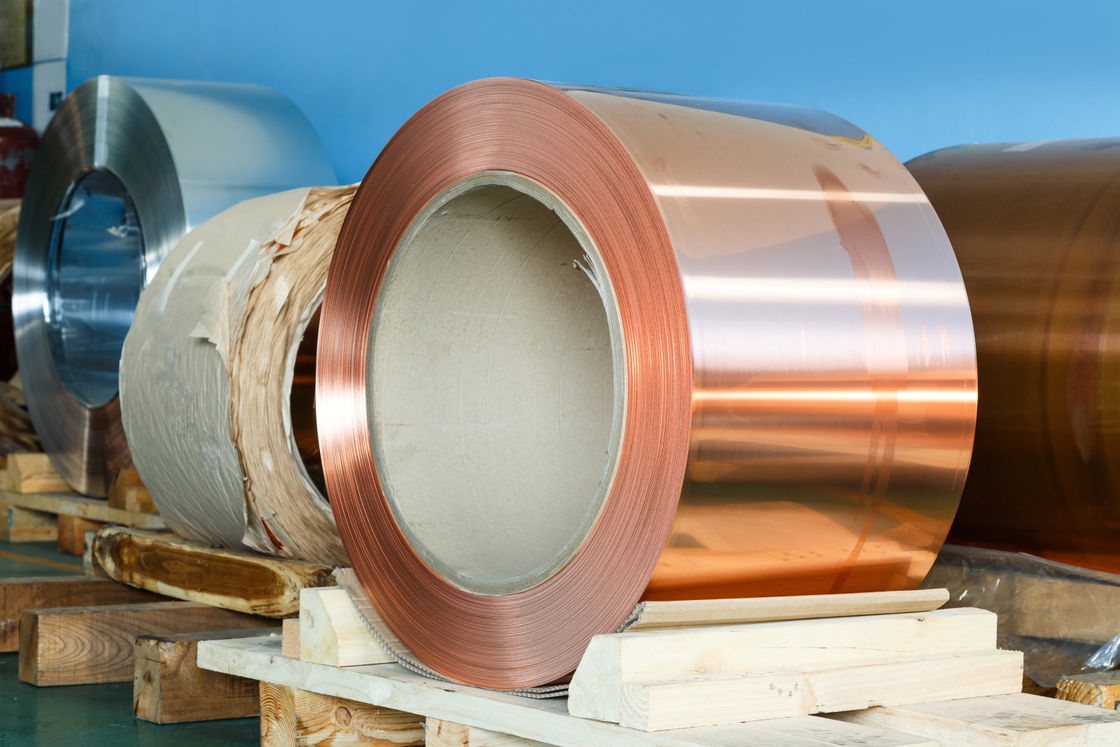

8um 10um 12um Thickness Customized Size Copper Foil Roll

Product Details:

Place of Origin:	Shanghai, China (Mainland)
Brand Name:	JIMA
Certification:	SGS,ROHS
Model Number:	CU0035

Payment & Shipping Terms:

Minimum Order Quantity:	50kg
Price:	negotiation
Packaging Details:	wooden box
Delivery Time:	20-30 days
Supply Ability:	500 ton per month

Contact Now

Detailed Product Description

Thickness::	0.15mm-8mm	Cu (Min)::	99.90%
Alloy Or Not:	Is Alloy	Application:	Transformer,Water Heater Exchanger Unit
Material::	Brass	Type:	Copper Foil Roll
Highlight:	copper metal sheets , polished copper sheet , customized copper foil roll

8um 10um 12um Thickness Customized Size Copper Foil Roll

8u 10u 12u, thickness and width can be customized.

10um*200mm(W), 2.5kg/roll, sample price is 80usd/roll.

Item		T-Cu-08	T-Cu-10	T-Cu-12
Thickness (um)		8	10	12
Areal density (g/m2)		85-90	95-100	105-110
Purity(%) More than 99.9%		Cu ≥99.9%
		Fe < 0.0010%
		Bi < 0.00020%
		Pb < 0.0005%
Roller core inner diameter		76mm
Width		200mm
Tensile strength (MPa)		≥294	≥300	≥305
Normal elongation(%)		2.5	2.7	3.0
High temperature Tensile strength180℃(MPa)		≥147	≥150	≥153
High temperature elongation180℃(%)		2	2	2.5
Anti oxidization (180℃ Heating 1h)		No oxidation of points on the surface The color does not change Copper foil without fracture
Surface roughness(um) Rz	Drum side(um)	Less than 0.3	Less than 0.3	Less than 0.35
	Matte side(um)	Less than 3.0	Less than 3.5	Less than 4.0
Surface tension(dyne/cm)	Drum side	62	65	68
	Matte side	62	65	68
Coating performance		Cu foil with uniform tension on both sides slurry coating uniformity
