150μm Copper Strip coil C1201 C12000 CuDLP CW023A SWCu TP1
● Alloy/grade:C1201 C12000 CuDLP CW023A SWCu TP1
● Temper: Annealed;half Hard and Hard
● Width: Max. Width 1300-1310mm ,and can be custom as any width request
● Core ID:76mm;80mm,152mm;500mm
● Standard Export Wooden Box Package
● CU content:Min.99.95%
Application:
Faraday cage, electromagnetic shielding, integrated circuit (IC) packaging, printed circuit board
(PCB), lithium-ion battery, solar cell, transformer and motor, radio frequency identification (RFID) tag.
feature :
1,Good electrical conductivity
2,no hydrogen embrittlement tendency
3,good welding performance
4,good processability
5,good corrosion resistance
6,excellent thermal conductivity
Product Specification:
| Rang and Tolerance Products |
| Thicness(mm) |
Tolerance(mm) |
Width(mm) |
Tolerance(mm) |
Panel length(mm) |
Tolerance(mm) |
| 0.1~0.15 |
±0.003 |
17~90 |
±0.03 |
800~2000 |
±1 |
| 0.16~0.4 |
±0.005 |
91~150 |
±0.05 |
|
|
| 0.41~0.8 |
±0.015 |
151~300 |
±0.1 |
|
|
| 0.8~1.5 |
±0.03 |
301~830 |
±0.2 |
|
|
| 1.51~3.0 |
±0.05 |
|
|
|
|
| Chemical Composition |
| Cu |
Pb |
Fe |
Zn |
P |
O |
| ≥99.90 |
—— |
—— |
—— |
0.004~0.012 |
—— |
| Physical Properties |
Specific
(g/cm2) |
Cofficient of thermal expansion
(x10-6/k) |
thermal conductivity
(w/(m*k) |
Electrical conductivity
(%IACS) |
Resistivity
(uΩ.cm) |
Modulus of elasticity
(KN/mm2) |
| 8.94 |
17.7 |
350 |
≥90 |
1.91 |
135 |
Product Chemical composition:
| Chemical composition |
Page |
Alloy |
Cu (%) |
O (%) |
P (%) |
Zn (%) |
Ni (%) |
Sn (%) |
Fe (%) |
Mn (%) |
Si (%) |
Mg (%) |
Zr (%) |
Other (%) |
| Chemical composition |
/ |
Cu-1201 |
99.95 |
≤0.025 |
≤0.003 |
≤0.01 |
≤0.01 |
≤0.02 |
≤0.02 |
≤0.02 |
≤0.02 |
≤0.02 |
≤0.02 |
Remain |
Product Physical Properties:
| Mechanical / Physical Properties |
Page |
Alloy |
Density (g/cm3) |
Coefficient of Thermal Expansion (10*-3) |
Heat Conductivity (Watts/(M*Kelvin)) |
Conductivity (Siemens/M) |
Conductivity (IACS/%) |
Elasticity Modulus (Gigabit Pa) |
| Mechanical / Physical Properties |
/ |
Cu-1201 |
8.93 |
17.5 |
380 |
56 |
98 |
125 |
FAQ:
Q1: What is the Brand Name of the Copper Strip?
A1: The Brand Name of the Copper Strip is JIMA Copper.
Q2: Where is the Place of Origin of the Copper Strip?
A2: The Place of Origin of the Copper Strip is China.
Q3: What is the Certification of the Copper Strip?
A3: The Certification of the Copper Strip is ISO9001 SGS RoHS2.
Q4: What is the Minimum Order Quantity of the Copper Strip?
A4: The Minimum Order Quantity of the Copper Strip is 50KGS.
Q5: What is the Price of the Copper Strip?
A5: The Price of the Copper Strip is USD10~20.

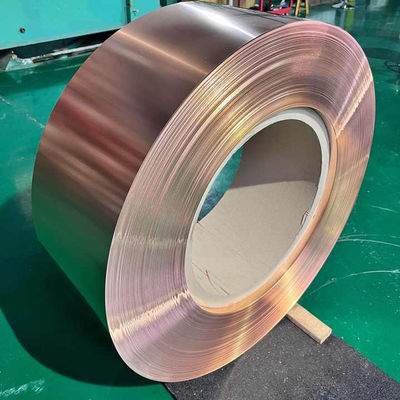

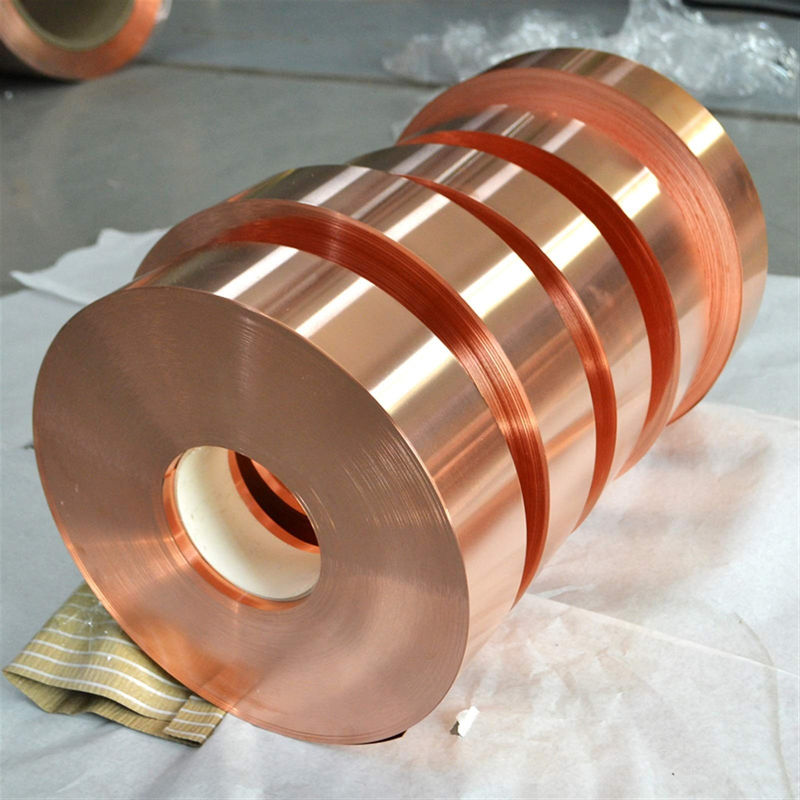

Product display:
Product Packaging Photos:
