Name: 3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms
Brand: JIMA Copper
SKU: CU0035
Price: 15 USD
Availability: InStock

Home Products Copper Strip

3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms

Product Details:

Place of Origin:	China
Brand Name:	JIMA
Certification:	SGS,ROHS
Model Number:	CU0035

Payment & Shipping Terms:

Minimum Order Quantity:	50kg
Price:	15 usd per kg
Packaging Details:	wooden box
Delivery Time:	30 days
Supply Ability:	500 ton per month

Contact Now

Detailed Product Description

Application:	Faraday Cage,RF MRI Shieding / RFI/EMI Chembers,builds MRI Rooms ,RF Shielded Rooms	Sample:	Trial Sample 100kgs; A4 Sample Free
Width Sheet:	Max.1400mm	Supply:	RF Copper Foil，0.1mm Thick Copper Foil ,MRI Copper Foil, 0.14mm Copper Foil
Material:	CU ETP, C1100，CU-ETP,T2, CW004A	ID:	500mm 152mm 76mm 300mm
Highlight:	3OZ Copper Foil , Builds MRI Rooms Copper Strip , Copper Strip 1400mm Width

3OZ and 0.10mm thickness Copper foil 1400mm width make used for builds MRI rooms

Copper ETP foill More Detail

1. Material : Cu-ETP (110) ,Cu-ETP(110),C11000,C1100 CU-ETP,T2,CW004A

2. Temper : Hard or Half Hard ; SOFT(R220)/Annealed ; 1/2-hard (R240 ); Hard

3. Core ID: 76MM,152MM 500ML

4. Max. roll weight : 1500kgs/roll

5. Max. width can supply 1400mm

5, Trial sample min.quantity :100kgs

6. Use more width : 914mm,1000mm, 1250mm,1320mm ,1400mm,1320mm

7. Inner package : vacuum packaging

8. Sample: A4 sample free

Cu-ETP (110) Typical Application :

1. For faradays cages

2. For RF MRI shieding / RFI/EMI chembers/builds MRI rooms (RF shielded rooms)

MRI Copper Foil Specification:

Thick Copper Plate
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥3.5-8	400-620	≤1800	Annealed(R220);1/2-hard (R240 );Hard
T2( CU-ETP,C1100,CW004A);T3(C1221)	>8-15	400-620	≤1500	Annealed(R220);1/2-hard (R240 );Hard
Width Copper Sheet
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥0.5-3.5	600-1400	500-3200	Annealed(R220);1/2-hard (R240 ); Hard
Width Copper Strip
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥0.3-0.5	300-1400	C	Annealed(R220);1/2-hard (R240);Hard
T2( CU-ETP,C1100,CW004A);T3(C1221)	>0.5-3.5	300-1400	C	Annealed(R220);1/2-hard (R240) ;1/4-hard;Hard
Thin Copper Strip
Grade/Material	Thickness	Width	Length	Temper
T2( CU-ETP,C1100,CW004A);T3(C1221)	≥0.05-0.4	30-300	C	Annealed(R220);Hard
T2( CU-ETP,C1100,CW004A);T3(C1221)	>0.4-2.0	100-300	C	Annealed(R220);1/2-hard (R240) ;Hard

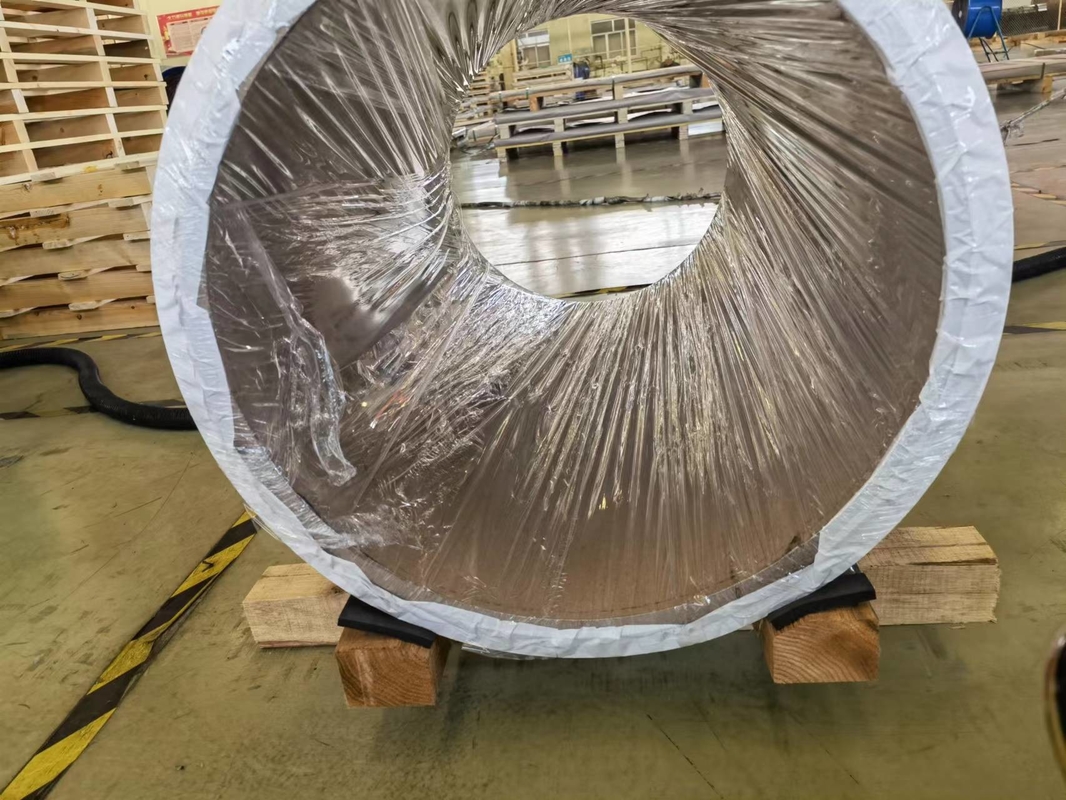

Cu-ETP(110) Width Copper Foil Photos:

3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms 0

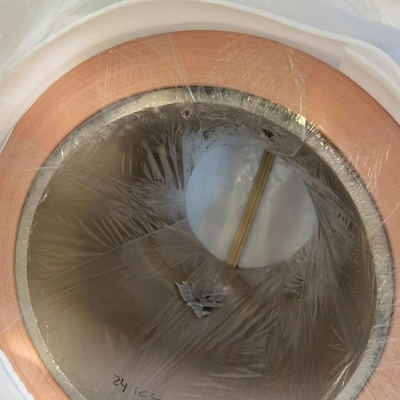

0.28mm Copper Foil Package Photos:

Inner Package :vacuum packaging

3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms 1

C11000 Copper Stadnard Export Wooden Box Package:

3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms 2

Core ID : 500MM Drawing :

3OZ 0.10mm Thickness Copper Strip 1400mm Width For Builds MRI Rooms 3
