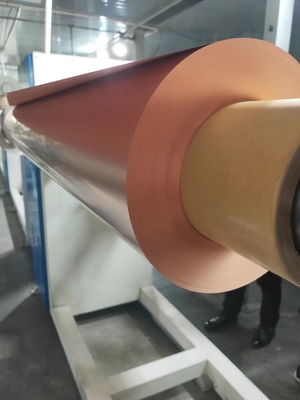

76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength

76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength

  • 76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength
  • 76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength
  • 76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength
  • 76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength
76mm / 152mm ID PCB Copper Foil 500 - 5000 Meter Roll Length High Peel Strength
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree
Thickness: 12mic Color: Red
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch
High Light:

copper foil for pcb

,

pcb copper clad

12um 12micron thickness STD electrodeposited ED electrolytic copper foil 0.012mm for PCB



Quickly details



Thickness: 0.012mm

Width: 5-1380 mm

Length: 500-5000 M

ID: 76 mm,152 mm



Features:

1. the treated foil in gray or red

2. High peel strength



Application:

Phenolic resin board



Compare between CA copper foil and ED copper foil



Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)





Package:wooden carton



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.



Q2: What's your delivery time ?



A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.



Typical properties of Standard copper foil for phenolic resin board and epoxy board.



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1295(±1)mm,May according to the customer request tailor.

2. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
