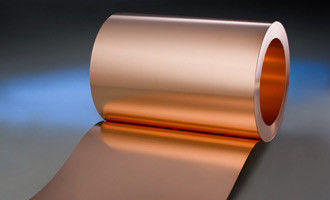

High Coarse Edco Copper Foil  5mm Width Circuit Board Copper Foil Sheet

High Coarse Edco Copper Foil  5mm Width Circuit Board Copper Foil Sheet

  • High Coarse Edco Copper Foil  5mm Width Circuit Board Copper Foil Sheet
  • High Coarse Edco Copper Foil  5mm Width Circuit Board Copper Foil Sheet
High Coarse Edco Copper Foil  5mm Width Circuit Board Copper Foil Sheet
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree
Elongation: ≥ 1.5% Tensile Strength: ≥ 160 MPa
Peel Strength: ≥ 1 N/mm Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch Name: High Coarse Edco Copper Foil 5mm Width Circuit Board Copper Foil Sheet
High Light:

edco copper foil

,

hvlp copper foil

ED Electrolytic Copper Foil with High Coarse for Double Face and Multiayer Printed Circuit Boards



Overview:

  • Range of Thickness: 0.012-0.070 mm
  • Range of Width: 5-520 mm
  • Range of Length: 500-5000 M
  • Available ID: 76 mm,152 mman
  • Purity:99.8%



Features:

  • Perfect normal temperature storage performance
  • High temperature anti-oxidization performance
  • High temperature elongation performance
  • Being used in the production of the different double-face and multi-player printed circuit boards

Application:

  • S-THE ED Copper Foils can be used in the production of the different double face and multiayer printed circuit boards



FAQ:

Q1: Can you supply the sample?

A1: customization



Q2. Do you test all your goods before delivery?
A2: Yes, we have 100% test before delivery.



Q3. what is your max width?

A3: Max width 1380mm





Typical Properties of High Coarse Copper Foil

Classification

Unit Requirement Test Method
Foil Designation / H M 1 IPC-4562A
Nominal thickness / 1/2 OZ 3/4 OZ 1 OZ IPC-4562A
Area Weight g/㎡ 150±5 228±8 285±10

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤8 ≤10 ≤12
Tensile Strength

R.T.(23℃)



Mpa ≥220 ≥235 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3

IPC-TM-650

2.3.18

Peel Strength(FR-4) CEM-1 N/mm ≥1.5 ≥1.7 ≥2.0

IPC-TM-650

2.4.8

PTC ≥0.5 ≥0.6 ≥0.8
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 or customize /
H.T.(200℃) Minutes 60 or customize /



Packaging:

High Coarse Edco Copper Foil  5mm Width Circuit Board Copper Foil Sheet 0
