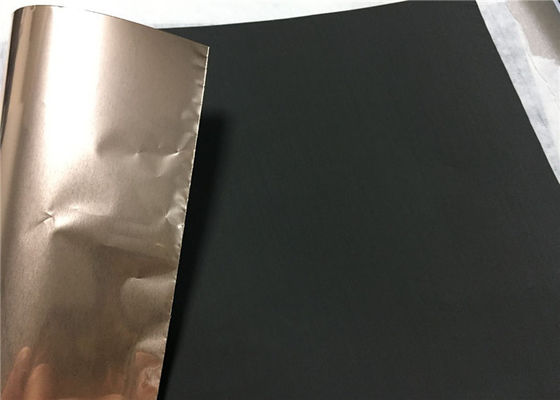

Low Profile Electrolytic Copper Foil

Low Profile Electrolytic Copper Foil

  • Low Profile Electrolytic Copper Foil
Low Profile Electrolytic Copper Foil
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCULP
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: usd 15-20 kg
Packaging Details: wooden carton
Delivery Time: 5-15 days
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.8% Pinholes: None
Anti Oxidation: 200 Degree 60 Minutes, 180 Days 23 Degree Thickness: 105um 70um 50um 35um 25um 12um 9um
Color: Red Or Black Elongation: ≥ 5%
Tensile Strength: ≥ 180 MPa Name: Low Profile Electrolytic Copper Foil Balck Treatment 105um 70um 50um 35um 25um 12um 9um
Highlight:

copper sheet metal

,

thin sheets of copper

,

electrolytic copper foil 105um

LP-S-B/R Low Profile Electrodeposited Electrolytic ED​ Copper Foil for FCCL FPC COF LED

Low Profile Electrolytic Copper Foil Black Treatment 105um 70um 50um 35um 25um 12um 9um

Matte side treatment low profile foil in back/red.



Low Profile Electrolytic Copper Foil Balck treatment 105um 70um 50um 35um 25um 12um 9um



Black Low Profile Electrolytic Copper Foil 105um 70um 50um 35um 25um 12um 9um





Features:

1. The treated foil in gray or red

2. High profile with properties of LP-S-B/R suitable for FCCL

3. Grain structure of copper foil leads to high flexibility

4. Excellent etching performance

5. Low profile enables to make fine circuit pattern

Application:

1. Casting and lamination type FCCL

2. Super fine pattern FPC

3. Chip on flex (COF) for LED





Typical properties of LP-S-B/R ED electrolytic copper foil(for FPC or inner layer of HDI)

Classification



 Unit Requirement Test Method
Foil Designation /   1 H M 1 IPC-4562A
Nominal thickness / 10um 12um 1/2 OZ(18um) 3/4 OZ(25um) 1 OZ(35um) IPC-4562A
Area Weight g/㎡ 98±4 107±4 153±5 228±8 285±10

IPC-TM-650

2.2.12.2
Purity ％ ≥99.8

IPC-TM-650

2.3.15
Foil Profile Shiny side(Ra) սm ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5

IPC-TM-650

2.3.17
Matte side(Rz) um ≤4.0 ≤4.5 ≤5.5 ≤6.0 ≤8.0
Tensile Strength R.T.(23℃) Mpa ≥260 ≥260 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18
H.T.(180℃) Mpa ≥180 ≥180 ≥180 ≥180 ≥180
Elongation R.T.(23℃) ％ ≥5 ≥6 ≥8 ≥10 ≥12

IPC-TM-650

2.3.18
H.T.(180℃) ％ ≥5 ≥6 ≥7 ≥8 ≥8
Peel Strength(FR-4) N/mm 0.7 0.8 1.0 1.1 1.2

IPC-TM-650

2.4.8
Ibs/in 4 4.6 5.7 6.3 6.9
Pinholes&porosity Number No

IPC-TM-650

2.1.2
Anti-oxidization R.T.(23℃) 180days /
H.T.(200℃) 60 Minutes /

1. Standard Width 520mm,max width 1295(±1)mm,May according to the customer request tailor.

We test the peel strength with PI ,please reconfirm with your pp.

Low Profile Electrolytic Copper Foil 0
