1 OZ ED Copper Foil For Special Conductivity Material Red / Black Color

1 OZ ED Copper Foil For Special Conductivity Material Red / Black Color

  • 1 OZ ED Copper Foil For Special Conductivity Material Red / Black Color
  • 1 OZ ED Copper Foil For Special Conductivity Material Red / Black Color
1 OZ ED Copper Foil For Special Conductivity Material Red / Black Color
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree Color: Red Or Black
Elongation: ≥ 1.5% Tensile Strength: ≥ 160 MPa
Peel Strength: ≥ 1 N/mm Length Per Roll: 500 - 5000 Meter
Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch
High Light:

edco copper foil

,

hvlp copper foil

1 OZ ED Copper Foil For Special Conductivity Material Red / Black Color

Description:

  • T: 12 micron-70micron
  • W: 5-520 mm
  • L: 500-5000 M
  • Coil ID: 40/76 /152 mm
  • Purity:99.8%
  • Various kinds of Roughness,Low profile and good peel strength with resin,Good chemical resistance.



Main Category:

  • Standard Electrodeposited Copper Foil(STD-E),

  • High Elongation Electrodeposited Copper Foil(HD-E),

  • Copper foil for Lithium Cell,

  • Low profile Electrodeposited copper foil(LP-E)



Application:

  • Special conductivity material



Overview:

  • We propose two kinds of copper foils and new production method, aiming at improving productivity and yield in coreless board process.
  • 2,PCS or PCM (Peelable Copper Foil on Shiny side or Matte side)
  • PCS or PCM are peelable copper foil with peelable organic material coated on copper surface.
  • PCS or PCM can be laminated with resin(e.g. FR-4) by ordinary PCB process and also released easily from the laminated resin at any timing.

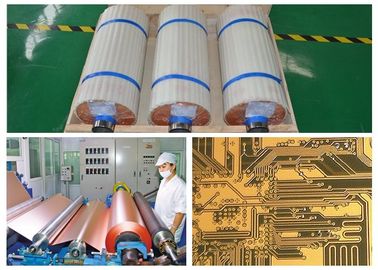

Package:wooden box



FAQ:

Q1: are you product zinc free ?

A1: yes,we can do it .



Q2. What your delivery time ?
A2: About 30 days, urgent order be accept in 5 days for delivery.



Q3. what is your max width?

A3: 1380mm



Typical properties of High coarse copper foil

Classification

Unit Requirement Test Method
Foil Designation / H M 1 IPC-4562A
Nominal thickness / 1/2 OZ 3/4 OZ 1 OZ IPC-4562A
Area Weight g/㎡ 150±5 228±8 285±10

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤8 ≤10 ≤12
Tensile Strength

R.T.(23℃)



Mpa ≥220 ≥235 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3

IPC-TM-650

2.3.18

Peel Strength(FR-4) CEM-1 N/mm ≥1.5 ≥1.7 ≥2.0

IPC-TM-650

2.4.8

PTC ≥0.5 ≥0.6 ≥0.8
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 or customize /
H.T.(200℃) Minutes 60 or customize /
