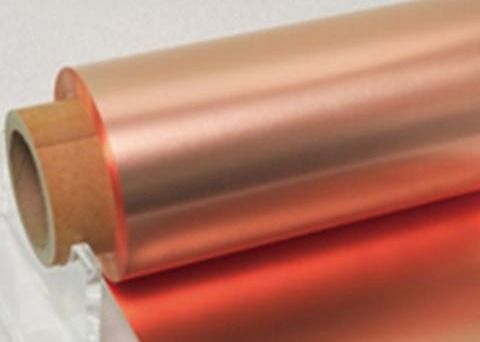

​35μm High-frequency microwave forward copper foil for High Frequency PCB

JIMA Copper is doing copper foil of Li-ion battery 4.5um to 14um more than 12 years. and production capacity 150000tons /years.

With a thickness of 35 μm, JIMAcopper is the ideal choice after careful development and repeated verification. In high-frequency PCB

applications, this precise thickness ensures that the copper foil has the best electrical properties.

Features:

1,Special silane treatment with high peel strength

2,Nanoscale treatment of copper nodules

3,Excellent anti-oxidation and shelf life

4,Excellent electrical performance (low dielectric constant, low dielectric loss, high insulation resistance)

5,outstanding surface quality, stable mechanical properties (high strength, good flexibility, good dimensional stability)

6,reliable thermal performance (high heat resistance, good heat dissipation)

7,special structural design (positive rotation structure, ultra-thin thickness)

Application:

1,(HDI) High Density Interconect

2,HSD (High Speed Digital)

3,Base Station / Server

4,Communication field (satellite communication, 5G communication, radar system)

5,aerospace field (avionics, satellite antenna)

6,medical field (medical equipment, medical imaging)

7,scientific research field (high-frequency electronics laboratory, microwave communication research)

Details Package: wooden box

FAQ:

Q1: delivery time ?

A: The general delivery time is 10~15 working days.

Q2: What's your minimum order quantity?

A: The MOQ is 10kg.

Q3. what is your standard width?

A: 300mm-1300mm we accept customization for the width. we can cut it into any size that you demand after pass discussing.

35μm High-frequency microwave forward copper foil standard sample digital:

Specifications ( 3 5 μ m )

Mechanical Properties

Ra on matte side Rz

4-9 μm customizable

Tensile strength

>330 MPa

Elongation

>5%

Peel Strength(PTFE)

≥1.6 N/mm(PTFE)

35μm High frequency microwave inversion copper foilstandard sample digital:

Specifications (35 μm)

Mechanical Properties

Ra on matte side Rz

2.8-3.0μm customizable

Tensile strength

>330 MPa

Elongation

>5%

Peel Strength(PTFE)

≥1.6 N/mm(PTFE)

35μm High-frequency microwave forward copper foil Technical Data Sheet:

Specification

Details

Thickness

35μm

Width

≤620mm

Item

Unit

Parameter

Grade

-

High-frequency microwave grade (custom specification)

Copper content

%

≥99.95 (typical for high-quality copper foils)

Area Weight

g/㎡

[Calculated value based on thickness and density]

Double-sided(Ra)

um

≤0.1 (smooth surface for enhanced signal transmission)

State Normal (tensile strength)

Mpa

≥450 (high strength for stability and durability)

State Normal (elongation)

%

≥2.0 (sufficient flexibility for processing)

Conductivity

20℃ IACS

≥98% (excellent electrical conductivity)

High temperature oxidation resistance(180℃ 1 hour)

-

Qualified (resistant to oxidation at elevated temperatures)

Remark: accept customization, Standard Width,300-1300(±1)mm,
