Name: 6um 8um 10um 12um Ultra High Tensile Copper Foil
Brand: JIMA Copper
SKU: EDCU
Price: 17.00 USD
Availability: InStock

Home Products Lithium Ion Battery Copper Foil

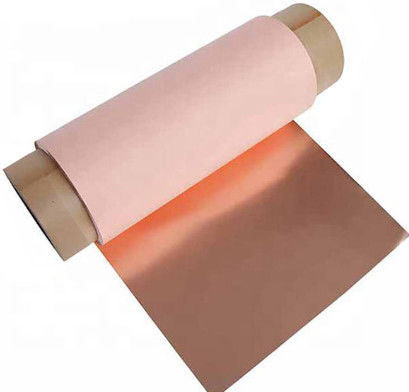

6um 8um 10um 12um Ultra High Tensile Copper Foil

Product Details:

Place of Origin:	china
Brand Name:	JIMA
Certification:	SGS, ISO,Reach, RoHS
Model Number:	EDCU

Payment & Shipping Terms:

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	wooden carton
Delivery Time:	5-15 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 Ton per month

Contact Now

Detailed Product Description

Products Name:	6um 8um 10um 12um Ultra High Tensile Copper Foil	Application:	Applications Include High-end Laptops, Cell Phones, And Smart Watches.
Sample:	A4 Size Free	Core ID:	76mm,152mm
Lead Time:	10-15day	Width:	100mm To 1310mm
Highlight:	12um Ultra High Tensile Copper Foil , 8um Ultra High Tensile Copper Foil , 10um Ultra High Tensile Copper Foil

6um 8um 10um 12um Ultra High Tensile Copper Foil:

JIMA Copper is doing copper foil of Li-ion battery 4.5um to 14um more than 12 years. and production capacity 150000tons /years.

Product Detail:

Thickness: 6um 8um 10um 12um

Purity: Copper purity of 99.8% or more.

Core ID:76mm/152mm

Compliance with domestic and EU standards

Product Features:

Very high tensile strength,

Low surface roughness,

high elongation, etc.

Customized production according to customer's width.

Application Fields:

Applications include high-end laptops, cell phones, and smart watches.

Details Package: wooden box

FAQ:

Q1: delivery time ?

A: The general delivery time is 10~15 working days.

Q2: What's your minimum order quantity?

A: The MOQ is 10kg.

Q3. what is your standard width?

A: 100mm and 1440mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.

Technical Data Sheet:

Project		Unit	Technical Requiremente
Thickness		μm	4.5 (0;+2)	6 (0;+2)	8 (0;+2)	10 (0;+2)	12 (0;+2)

Unit Area weight		g/m2	40±1.5	54±1.5	72±2	87±2	105±2
Roughness	M side Rz	μm	≤3.0
	S side Ra	μm	≤0.32
Tensile Strength	25℃	MPa	≥300	≥300	≥300	≥300	≥300

Elongation	25℃	%	≥3	≥5	≥5	≥8	≥10
Wettability		dyn	≥38

Antioxidant Capacity		140℃ 15min No oxidation or discoloration

6um 8um 10um 12um Ultra High Tensile Copper Foil 0

Remark: accept customization, Standard Width,100-1440(±1)mm,
