Name: 8μM Copper Foil Specially For Solid-State Batteries
Brand: JIMA Copper
SKU: EDCU
Price: 17.00 USD
Availability: InStock

Home Products Lithium Ion Battery Copper Foil

8μM Copper Foil Specially For Solid-State Batteries

Product Details:

Place of Origin:	china
Brand Name:	JIMA
Certification:	SGS, ISO,Reach, RoHS
Model Number:	EDCU

Payment & Shipping Terms:

Minimum Order Quantity:	10kg
Price:	Negotiation
Packaging Details:	wooden carton
Delivery Time:	5-15 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 Ton per month

Contact Now

Detailed Product Description

Products Name:	8μM Copper Foil Specially For Solid-State Batteries.	Application:	Solid/semi-solid State Battery Field (improve Battery Performance And Act As Negative Current Collector); Electronic Equipment Field (smartphones, Tablets, Laptops); Electric Vehicle Field; Grid Energy Storage; Distributed Energy Storage System.
Sample:	A4 Size Free	Core ID:	76mm,152mm
Lead Time:	10-15day	Width:	300mm To 1300mm
Highlight:	8μM Solid-State Batteries Copper Foil , Solid-State Batteries Copper Foil

8μM Copper Foil Specially For Solid-State Batteries.

JIMA Copper is doing copper foil of Li-ion battery 4.5um to 14um more than 12 years. and production capacity 150000tons /years.

Product Detail:

Typical Thickness: 4.5um 6um 8um 10um 12um

Surface: Single - or double - sided polished.

Purity: Copper purity of 99.8% or more.

Sizes: Customizable in width and length.

Core ID:76mm/152mm

Compliance with domestic and EU standards

Product Features

With high surface roughness and high elongation developed can be customized according to the width of the customer to meet the

requirements of high peel strength for downstream applications.

Application Fields:

the product is mainly used in the field of solid state/semi-solid state batteries.

Details Package: wooden box

FAQ:

Q1: delivery time ?

A: The general delivery time is 10~15 working days.

Q2: What's your minimum order quantity?

A: The MOQ is 10kg.

Q3. what is your standard width?

A: 300mm and 1300mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.

8μm copper foil specially for solid-state batteries Technical Data Sheet:

project		Unit	Technical requiremente
Thickness		μm	6(0;+2)
Unit area weight		g/m2	54±2
Roughness	MRz	μm	≤3.0
Roughness	SRa	μm	≤0.32
Tensile strength	25℃	MPa	≥600
Elongation	25℃	%	≥2.5
Wettability		dyn	≥38
Antioxidant capacity			140℃ 15minNo oxidation or discoloration

Project		Unit	Technical requiremente
Thickness		μm	8(0;+2)
Unit area weight		g/m2	72±2
Roughness	MRz	μm	≥2.2
Roughness	SRa	μm	≤0.34
Tensile strength	25℃	MPa	≥300
Elongation	25℃	%	≥3.0
Wettability		dyn	≥38
Antioxidant capacity			140℃ 15min No oxidation

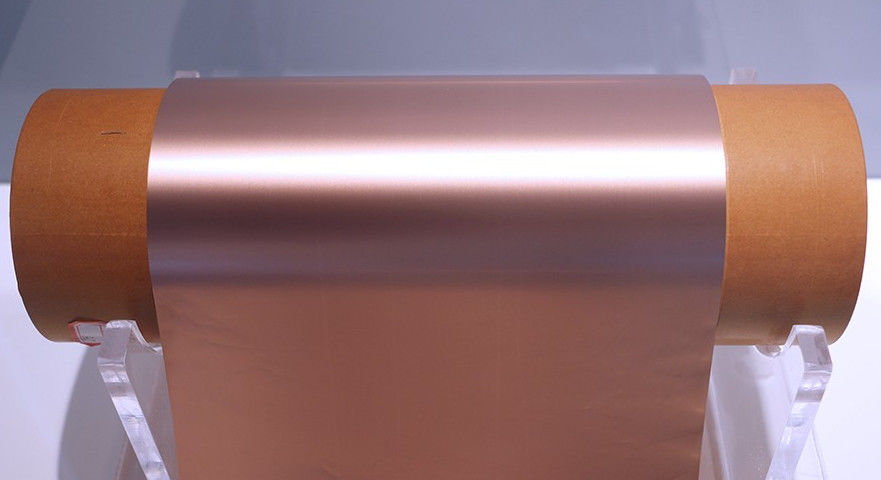

Product Showcase:

8μM Copper Foil Specially For Solid-State Batteries 0

Remark: accept customization, Standard Width,300-1300(±1)mm,
