Low Coarsening Reverse Treated Electrodeposited Copper Foil Roll 35um 70um 105um

Product Details:

Place of Origin:	China
Brand Name:	JIMA
Certification:	SGS, ISO,Reach, RoHS
Model Number:	RAPCB09

Payment & Shipping Terms:

Minimum Order Quantity:	50kg
Price:	Negotiation
Packaging Details:	Wooden box package
Delivery Time:	5-15 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 Ton per month

Contact Now

Detailed Product Description

Application::	Multilayer Board, High Frequency, EMI	Thickness:	12um 18um 35um 70um 105um
Standard Width::	1290mm, Can Be Cutting As Size Request	ID:	76mm，152mm
Lead Time:	7-10days	Sample:	Can Be Supply
Highlight:	105um Electrodeposited Copper Foil , 35um Electrolytic Copper Foil Sheets , Electrodeposited Copper Foil Roll

Low Coarsening Reverse Treated Electrolytic Copper Foil Thickness 12um 18um 35um 70um 105um

Detail:

Nominal Thickness:12um 18um 35um 70um 105um
Length: Customized
Delivery Time: 15-20days

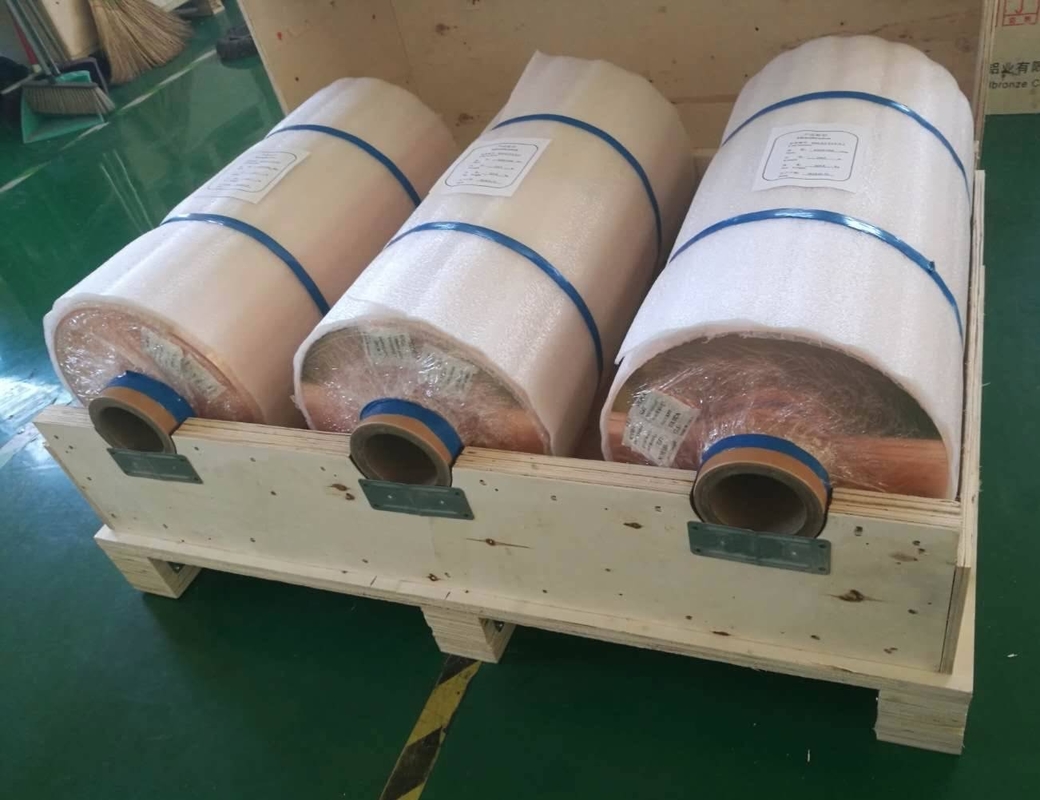

Packing Details: Export Wooden box
Sample can be supply
Low Carbon Developing: JIMA Copper are one type of new material and important link national "low carbon development" strategy new industry, JIMA Copper still upholds the low carbon environmental protection concept from purchase of raw material, manufacturing and sales and constantly adopts new technology, new equipment to improve workmanship and production efficiency and make all types of indexes reach the advanced level in the industry in aspects of energy saving and emission reduction.

Features:

Reverse treated copper foil
Low profile
High MIT
Good etchability
The treated foil is pink

Typical Application

Multilayer board
High frequency
EMI

Typical Properties of Low Coarsening Reverse Treated Electrolytic Copper Foil

Classification		Unit	Requirement					Test Method
Nominal thickness		um	12	18	35	70	105	IPC-4562A
Area Weight		g/m²	107±5	153± 7	285±10	585±20	870±30	IPC-TM-650 2.2.12
Purity		%	≥99.8					IPC-TM-650 2.3.15
Roughness	Shiny Side(Ra)		≤3.0					IPC-TM-650 2.2.17
Roughness	Matte side(Rz)	um	≤5	≤6	≤8	≤10	≤12	IPC-TM-650 2.2.17
Tensile Strength	R.T.(23°C)	Mpa	≥207		≥276			IPC-TM-650 2.4.18
Tensile Strength	H.T.(180°C)	Mpa	≥103		≥138			IPC-TM-650 2.4.18
Elongation	R.T.(23°C)	%	≥2	≥2	≥3	≥3	≥4	IPC-TM-650 2.4.18
Elongation	H.T.(180°C)	%	≥2	≥2	≥2	≥3	≥3	IPC-TM-650 2.4.18
Peel Strength(FR-4)		N/mm	≥0.7	≥0.8	≥1.0	≥1.2	≥1.4	IPC-TM-650 2.4.8
Peel Strength(FR-4)		Lbs/in	≥4.0	≥4.6	≥5.7	≥7.4	≥8.0	IPC-TM-650 2.4.8
Pinholes & Porosity		Number	No					IPC-TM-650 2.1.2
Anti-oxidization	R.T.(23°C)	Days	180					/
Anti-oxidization	R.T.(200°C)	Minutes	40					/

Standard Width, 1295(±1)mm, Width range:200-1340mm. May according to the customer request tailor.

Low Coarsening Reverse Treated Electrodeposited Copper Foil Roll 35um 70um 105um 0

Low Coarsening Reverse Treated Electrodeposited Copper Foil Roll 35um 70um 105um 1
