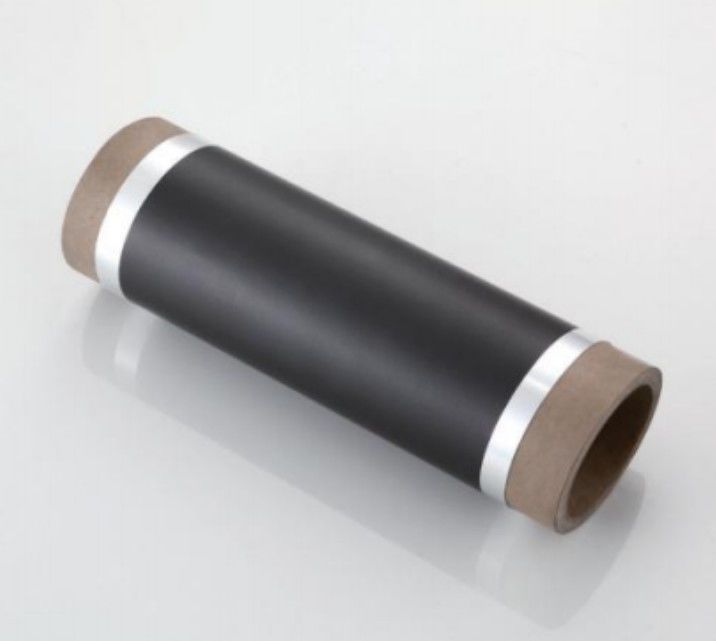

CAW2 12-100um Carbon Coated Aluminum Foil No Exfoliation

CAW2 12-100um Carbon Coated Aluminum Foil No Exfoliation

  • CAW2 12-100um Carbon Coated Aluminum Foil No Exfoliation
CAW2 12-100um Carbon Coated Aluminum Foil No Exfoliation
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: NAMOALCAW1
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: usd 22-30 kg
Packaging Details: wooden carton
Delivery Time: 20-30 days
Supply Ability: 300 Ton per month
Contact Now
Detailed Product Description
Product Name: Carbon Coated Aluminum Foil Corrosion Resistance: No Exfoliation
Purity: 99.9% Thickness: 12-100μm
Conductivity: 2 S/CM Peel Strength: ≥ 2 N/mm
Pinholes: None Application: XEV: Hybrid-electric Vehicle.(HEV) ,Parallel Hybrid Electric Vehicle(PHEV) ,Electric Vehicle(EV),Lithium-ion Batteries Supercapacitor
Coated: Carbon-coated Name: CAW2 12-100um Carbon Coated Aluminum Foil No Exfoliation
High Light:

CAW2 Carbon Coated Aluminum Foil


100um Carbon Coated Aluminum Foil


12um pe coated aluminium foil

Carbon Coated Aluminum Foil Modified AL aluminum Foils

CAW2 12-100um Carbon Coated Aluminum Foil No Exfoliation

Current collector conductive Modified carbon-coated aluminium Foil for Lithium-ion batteries Super capacitor.


Carbon Coated Aluminum Foil Advantage:

  1. Improve the consistency of battery usage group and reduce battery cost significantly.
  2. Improve the adhesion of active material and the collector, and reduce the electrode manufacturing cost.
  3. Reduce the polarization, increase the rate and capacity, improve the battery performance.
  4. Protection of fluid collection, extend battery life.


   CAW2 is one of the best price-ratio “CA” series product, This product shows comparable performance to foreign products, which breaks through the monopolization of conventional carbon-coated Al foil in international market. Conductive carbon is used as main coating material, and special resin is selected as binder. The coating slurry is casted onto both sides of Al foil using an advanced coating machine ,of which the coating velocity can be 150m per minute , in addition,the coatings with various gaps can be realized, resulting the reduce of the production cost.



  1. (LFP.LMO.NCM.NCA.LNM.LTO):for electric vehicles and energy storage(LFP.LMO.NCM.NCA.LNM.LTO)
  2. (LCO.NCM):Lithium-ion batteries for 3C productions(LCO.NCM)
  3. Supercapacitor
  4. Lithium-ion supercapacitor



  1. Improve the surface tension, and increase the adhesion between the aluminium foil and the active material.
  2. Decrease the using amount of binder for the electrode ,enhance energy density of the battery ,and lower the cost of the electrode production
  3. Protect the AI current collector from surface corrosion and oxidation.
  4. Reduce interface resistance and internal resistance of the cell.
  5. Decrease polarization and improve the rate capability and specific capacity of the electrode material
  6. Mitigate exothermic reactions and enhance the battery safety
  7. Improve the production stability and reproducibility ,and raise the pass rate of the cell
  8. Increase the consistency and cycling life of the cell,and lower the cost of the production.


Important Cautions:


  1. Use the product under the temperature of 20-25℃ and humidity of ≤20%RH
  2. The coating layer is highly Hydrophilic, handle it under personal protection.
  3. Avoid using the product under dust, The dust purification should be over 0.1M.
  4. Avoid any collisions against hard materials. Handle the product gently.
  5. This product is developed by our company for the application in batteries , if application in other fields, please discuss with us for it .


Packaging Marketing:

The product type,quantity ,production date and place etc, are indicated on the package.


Usage and Storage:

  1. Use the product in the workshop with humidity of ≤20%RH and a high dust purification.
  2. Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 40-60℃ for 2 hours under vacuum ,then kept in the cabinet filled with nitrogen at room temperature.
  3. The product can be stored under vacuum package for one year at ambient temperature and moisture without direct sun. Once the vacuum package is opened, the product can be kept under vacuum cabinet for at most one month.
