Graphene Coated Aluminum Foil Thermal Conductivity ≤0.03W/m.K

Product Description:

The product is designed as a new-type of aluminum foil current collector with uniform coating of graphene on its surface.

Based on the excellent electrical and two-dimensional layer structure of ultra-thin layer with a thickness of less than 0.5μm on the surface of

aluminum foil has high electrical conductivity,which significantly reduces the interface resistance,

Product Features:

Ø UItra-thin coating composed of graphene.

Ø Reducing the interface resistance to improve rate capability and cycle life of L-ion battery and super capacitors.

Ø Improving the adhesion between active materials and current collector and reducing the corrosion of current collector

Ø Enhancing the safety of batteries by reducing polarization and alleviating the heating-up during charging.

Application:

Ø Lithium-ion batteries

Ø Super capacitors

Specification:

Appearance

Coating Thickness

(double side)/μn

Areal density

(double side)/mg cm-2

Dark gray coating

Typically 0.5

0.04～0.1

Usage and storage:

Ø Use the product in the workshop with humidity of ≤20%RH and a high dust purification.

Ø Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 400℃ for 2 hours under vacuum

,then kept in the cabinet filled with nitrogen at room temperature.

Ø The product can be stored under vacuum package for one year at ambient temperature and moisture without direct sun. Once the vacuum package is

opened, the product can be kept under vacuum cabinet for at most one month


Ø Types :

Product structure diagram and specification :

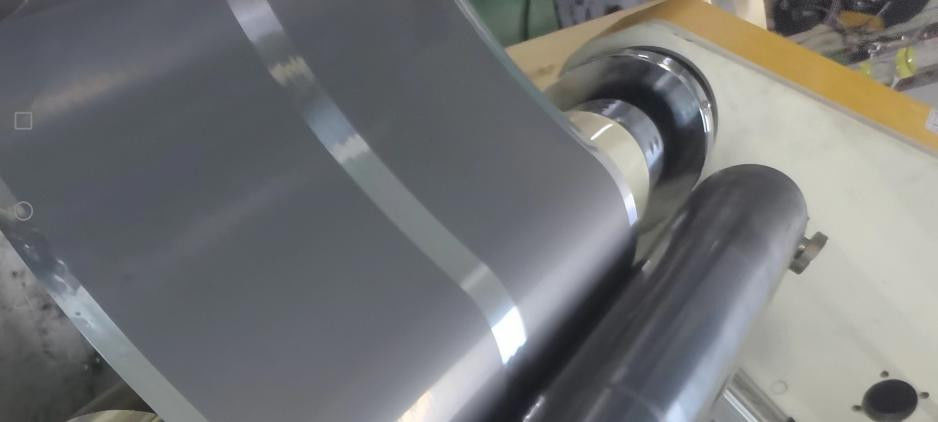

Product Display:
