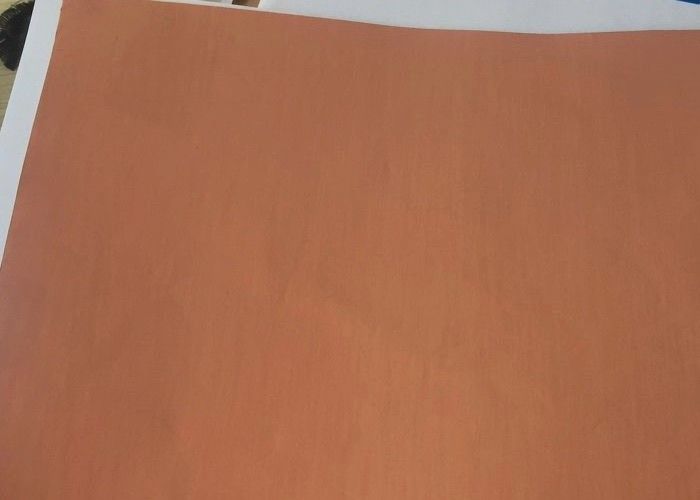

Phenolic Resin Board Nickel ED Copper Foil 0.5Oz Thickness

Phenolic Resin Board Nickel ED Copper Foil 0.5Oz Thickness

  • Phenolic Resin Board Nickel ED Copper Foil 0.5Oz Thickness
Phenolic Resin Board Nickel ED Copper Foil 0.5Oz Thickness
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCUSTD
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: usd 15-20 kg
Packaging Details: wooden carton
Delivery Time: 5-15 days
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.8% Pinholes: None
Anti Oxidation: 200 Degree 60 Minutes, 180 Days 23 Degree Thickness: 1/2 Oz,3/4 Oz,1 Oz,2 Oz,3 Oz,
Color: Red Or Gray Elongation: ≥ 2%
Tensile Strength: ≥ 150 MPa Peel Strength: ≥ 1 N/mm
High Light:

Phenolic Resin Board ED Copper Foil


0.5Oz ED Copper Foil


0.5Oz copper nickel foil

STD Standard ED Copper Foil For Phenolic Resin Board /copper nickel foil



Quickly details


Thickness: 0.012-0.070 mm

Width: 5-520 mm

Length: 500-5000 M

ID: 76 mm,152 mm

Alloy: T2,C11000,C1100,C101,E-Cu58

Temper: H



1. the treated foil in gray or red

2. High peel strength

3. Good etch ability

4. Excellent adhesion to etching resist


1. Phenolic resin board

2. Epoxy board


Compare between CA copper foil and ED copper foil


1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.


Package:wooden carton




Q1: What's your guarantee?


A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?

A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.

Q3: What's your minimum order quantity?

A: The MOQ is 150 kg.


Q4: Can you supply the sample?


A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.


Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.


Q6. what is your standard width?


A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.


Typical properties of Standard copper foil for phenolic resin board and epoxy board.




Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ







Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20


Purity ≥99.8



Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4



Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280






≥2 ≥3 ≥3 ≥4 ≥4 ≥4



Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162



Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1



Pinholes&porosity Number No



Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1295(±1)mm,May according to the customer request tailor.

2. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
