Place of Origin: | china |
Brand Name: | JIMA |
Certification: | SGS, ISO,Reach, RoHS |
Model Number: | EDCULP |
Minimum Order Quantity: | 50kg |
---|---|
Price: | usd 15-20 /kg |
Packaging Details: | wooden carton |
Delivery Time: | 7-20days |
Supply Ability: | 1000 Ton per month |
Name: | Low Profile Reverse Treated Copper Foil For Wireless Charging | Thickness: | 12um, 18um, 35um, 50um, 70um |
---|---|---|---|
Feature: | Reverse Treated Copper Foil | Application: | High Frequency , Multilayer Board, EMI |
Color: | Black Or Red | Sample: | Can Be Supply |
Highlight: | Wireless Charging reverse treated copper foil,18um reverse treated copper foil,18um insulated copper foil |
Feature
1. Reverse Treated Copper Foil
2. Low profile
3. Arsenic free,gree
4. Excellent etchability
5. the treated foil is pink or Black
6. Shiny side treated
7. Low profile for FCCL
Application
1. 2L FCCL
2. Wireless Charging
Typical properties of Reverse Treated Copper Foil
Classification | Unit | Requirement | Test Method | ||||
Nominal thickness | / | 12um | 1/2 OZ(18um) | 1 OZ(35um) | 50UM | 70UM | IPC-4562A |
Area Weight | g/㎡ | 107±4 | 153±5 | 285±10 | 435±1 | 585±20 | IPC-TM-650 2.2.12.2 |
Purity | % | ≥99.8 | IPC-TM-650 2.3.15 | ||||
Roughness | Shiny side(Ra) um | ≤3.0 | ≤3.0 | ≤3.0 | ≤8.0 | ≤10 | IPC-TM-650 2.3.17 |
Matte side(Rz) um | ≤3.0 | ≤4.0 | ≤6.0 | ≤10 | |||
Tensile Strength | R.T.(23℃) | ≥207 | ≥207 | ≥276 | ≥276 | ≥276 | IPC-TM-650. 2.4.18 |
H.T.(180℃) | Mpa | ≥103≥138 | |||||
Elongation | R.T.(23℃) | ≥4 | ≥4 | ≥8 | ≥10 | ≥12 | IPC-TM-650. 2.3.18 |
H.T.(180℃) | % | ≥4 | ≥4 | ≥6 | ≥8 | ≥8 | |
Peel Strength(FR-4) | N/mm | 0.7 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.3 | IPC-TM-650 2.4.8 |
Ibs/in | ≥4.0 | ≥4.6 | ≥5.7 | ≥6.9 | ≥7.4 | ||
Pinholes&porosity | Number | No | IPC-TM-650 2.1.2 | ||||
Anti-oxidization | R.T.(23℃) | 180 | |||||
H.T.(200℃) | 60 Minutes | 40 |

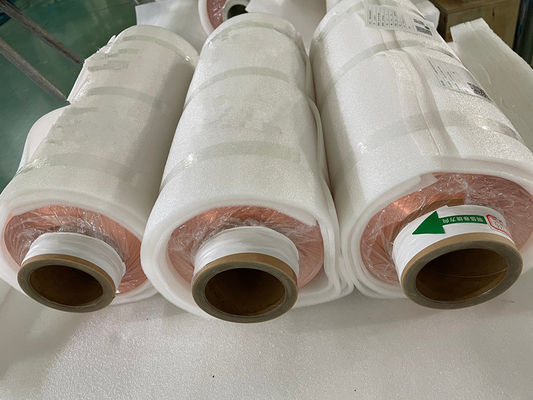

Packing: Wooden box
FAQ
Q: Do you provide samples?
A: Yes, we do.
Q: Can you provide finished product processing service?
A: Yes, we can prodive the finished product after die-cutting.
Q: What is the leadtime for mass production?
A: 7-20 days.
