8um Double Side Shiny Lithium Ion Battery Copper Foil Thick For Capacitor / Notebook PC

8um Double Side Shiny Lithium Ion Battery Copper Foil Thick For Capacitor / Notebook PC

  • High Light

    8um sheet metal copper

    ,

    8um graphene copper

    ,

    Capacitor sheet metal copper

  • Color
    Red
  • Name
    Double Side Shiny Copper Foil 8um 9um 10um 12um Thick For Capacitor
  • Peel Strength
    ≥ 1 N/mm
  • Foil Profile
    RA≤0.15μm,Rz≤1.7μm
  • Application
    Capacitor, Electric Vehicle, LiB:Notebook PC,Mobile Phone
  • Products Name
    Red 12um Thin Graphene Copper Roll
  • Place of Origin
    china
  • Brand Name
    JIMA
  • Certification
    SGS, ISO,Reach, RoHS
  • Model Number
    RACULP-S-B/G/R
  • Minimum Order Quantity
    100kg
  • Price
    Negotiation
  • Packaging Details
    wooden carton
  • Delivery Time
    5-15 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1000 Ton per month

8um Double Side Shiny Lithium Ion Battery Copper Foil Thick For Capacitor / Notebook PC

Double Side Shiny Copper Foil 8um 9um 10um 12um Thick For Capacitor & Notebook PC

Details
1.   Foil Thickness: 6um 7um 8um 9um 10um 12um
2.   Width: 200-1300mm,can be cutting as per request.
3.    Sample can be supply

4.    Details Package: wooden box

Features:
1. Glossy both side ,superior rupture endurance.
2. Excellent uniformity

3.   Excellent infiltration.

4.   Stable properties suitable for high capacity rechargeable battery

5.   Eco-friendly products and processes

Application:

1.   Capacitor

2.   Electric vehicle

3.   LiB:Notebook PC,Mobile Phone

Typical properties of Double Side Shiny Copper Foil

Classification Unit Requirement Test Method
Foil Designation /             IPC-4562A
Nominal thickness / 6um 7um 8um 9um 10um 12um IPC-4562A
Area Weight g/㎡ 54±1 63±1.25 70-75 85-90 95-100 105-110

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) um 0.1-0.43

IPC-TM-650

2.3.17

Matte side(Rz) um 0.8-3.0
Tensile Strength R.T.(23℃) Mpa 294

IPC-TM-650

2.3.18

H.T.(180℃) 196
Elongation R.T.(23℃) 5

IPC-TM-650

2.3.18

H.T.(180℃) 3
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 90 /
H.T.(160℃) Minutes 15 /

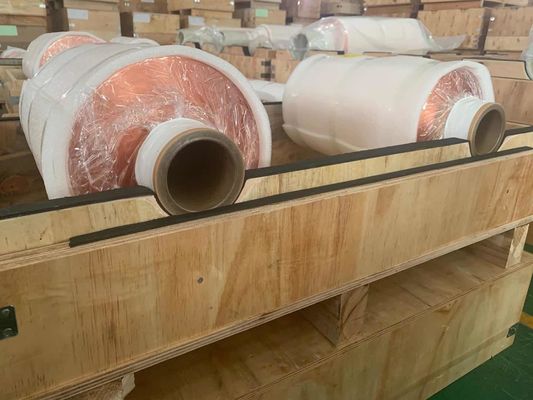

8um Double Side Shiny Lithium Ion Battery Copper Foil Thick For Capacitor / Notebook PC 0

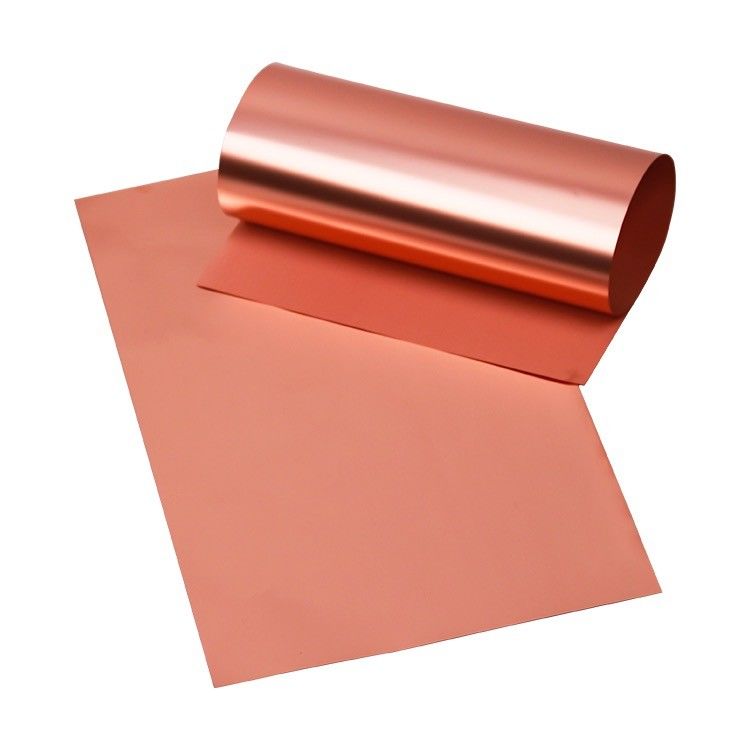

8um Double Side Shiny Lithium Ion Battery Copper Foil Thick For Capacitor / Notebook PC 1
