Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um

Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um

  • High Light

    Wareless Charging Reverse Treated Copper Foil

    ,

    2L FCCL Reverse Treated Copper Foil

    ,

    2L FCCL ED Copper Foil

  • Name
    Low Profile Reverse Treated Copper Foil For 2L-FCCL & Wareless Charging
  • Color
    Red Or Black
  • Thickness
    12um,18um,35um,50um,70um
  • Feature
    Reverse Treated Copper Foil
  • Application
    2L-FCCL , Wareless Charging , EMI
  • Lead Time
    7-10 Days
  • Sample
    Can Be Supply
  • Place of Origin
    china
  • Brand Name
    JIMA
  • Certification
    SGS, ISO,Reach, RoHS
  • Model Number
    EDCULP
  • Minimum Order Quantity
    50kg
  • Price
    Negotiation
  • Packaging Details
    Wooden carton
  • Delivery Time
    7-20days
  • Supply Ability
    1000 Ton per month

Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um



Low Profile Reverse Treated Copper Foil For 2L-FCCL & Wareless Charging 12um 18um 35um 50um 70um



Detail

  • Thickness: 12um 18um 35um 50um 70um
  • Standard Width: 1290mm, can be cutting as per size request
  • Wooden box package
  • ID: 76 mm, 152 mm
  • Length: Customized

Feature

  • Low profile for FCCL
  • High MIT
  • Excellent etchability
  • The treated foil is pink or black
  • Reverse treated copper foil
  • Reverse treated copper foil



Typical Application

  • Wareless Charging
  • 2L-FCCL
  • EMI
  • 2layer FPC
  • Mobile phone Wireless charging

Typical properties of Reverse Treated Copper Foil (LP-D-P/B Cu)

Classification Unit Requirement Test Method
Nominal thickness um 12 18 35 50 70 IPC-4562A
Area Weight g/m² 107±5 153±7 285± 10 435±15 585± 20 IPC-TM-650 2.2.12.2
Purity % ≥99.8 IPC-TM-650 2.3.15
Roughness Shiny side (Ra) սm ≤3.0 IPC-TM-650 2.3.17
Matte side(Rz) um ≤3.0 ≤4.0 ≤6.0 ≤8.0 ≤10
Tensile Strength R.T.(23°C) Mpa ≥207 ≥276 IPC-TM-650 2.4.18
H.T.(180°C) ≥103 ≥138
Elongation R.T.(23°C) % ≥4 ≥4 ≥8 ≥10 ≥12 IPC-TM-650 2.4.18
H.T.(180°C ≥4 ≥4 ≥6 ≥8 ≥8
Peel Strength(FR-4) N/mm ≥0.7 ≥0.8 ≥1.0 ≥1.2 ≥1.3 IPC-TM-650 2.4.8
Lbs/in ≥4.0 ≥4.6 ≥5.7 ≥6.9 ≥7.4 /
Pinholes & Porosity Numbers No IPC-TM-650 2.1.2
Anti-oxidization R.T.(23°C) Days 180 /
H.T.(200°C) Minutes 60            /

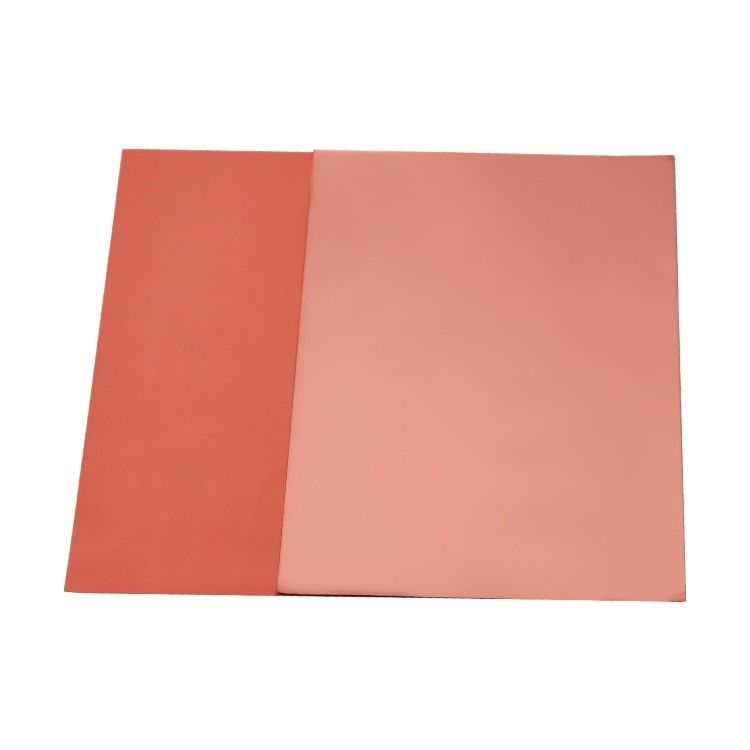

Product Display

Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um 0

Production Line & Factory



Low Profile Reverse Treated Copper Foil For 2L-FCCL / Wareless Charging 12um 18um 35um 50um 70um 1
