10 Micron Copper Foil Sheet Roll , Double - Shiny Pure Copper Foil for Lithium Battery

Product Details:

Place of Origin:	china
Brand Name:	JIMA
Certification:	SGS, ISO,Reach, RoHS
Model Number:	EDCU

Payment & Shipping Terms:

Minimum Order Quantity:	20KGS
Price:	Negotiation
Packaging Details:	wooden carton
Delivery Time:	5-15 days
Payment Terms:	T/T, L/C
Supply Ability:	1200 Ton per month

Contact Now

Detailed Product Description

Purity:	99.99%，Pure Copper Foil	Inter Diameter:	76 Mm
Name:	10 Micron Lithium Battery Copper Foil 10um Double-shiny Copper Foil	Standard:	IPC-TM-650
Thickness:	10um,10micron	Application:	Lithium Battery
Highlight:	Lithium Battery large copper sheet , 10 Micron graphene copper , 10 Micron large copper sheet

10 Micron Lithium Battery Copper Foil 10um Double-shiny Copper Foil

10 Micron Lithium Battery Copper Foil More introduction

Type	Double-shiny Copper Foil
Thickness Range	10um ; 10 Micron
Width	1290mm ,can be cutting into small width as request
Cu(min)	99.99%
Shape	Roll
Sample	Can be supplied
Certificate	Copper products have been approved by the certifications, such as ISO 901:2008, IPC-4562, RoHS


Application	Be used for the Li-ion battery cathode carrier and current collector.
	XEV: hybrid-electric vehicle.(HEV)
	Parallel hybrid electric vehicle(PHEV)
	Electric vehicle(EV)
	Li-ion battery ,lithium battery

Standard

IPC-TM-650

Characteristic of double-shiny of ED Copper Foil:

It is with symmetrial structure of both sides, the metal density nearing the copper theoretical density, very low surface pofile, and high elongation and tensisle strength; comparing with the single-matte and double-matte ED Copper Foils, when it adheres with the cathode materials, the contact area will increase dramatically, it can distincly reduce the contact resistance betweem the cathode current collector and the cathode material; the cathode current collector of the foil also has the excellent resistance of the cold and heat expansion, it can obviously increase the service life of the batteries.

10 Micron Lithium Battery Copper Foil Typical Properties

Classification		Unit	Requirement							Test Method
Foil Designation		/								IPC-4562A
Nominal thickness		/	6um	7um	8um	9/10um	12um	15um	20um	IPC-4562A
Area Weight		g/㎡	54±1	63±1.25	72±1.5	89±1.8	107±2.2	133±2.8	178±3.6	IPC-TM-650 2.2.12.2
Purity		％	≥99.9							IPC-TM-650 2.3.15
Foil Profile	Shiny side (Ra)	um	0.1-0.4							IPC-TM-650 2.3.17
	Matte side(Rz)	um	0.8-2.0
Tensile Strength	R.T.(23℃)	Mpa	＞280							IPC-TM-650 2.3.18
	H.T.(180℃)		＞200
Elongation	R.T.(23℃)	％	＞5							IPC-TM-650 2.3.18
	H.T.(180℃)		＞3
Pinholes&porosity		Number	No							IPC-TM-650 2.1.2
Anti-oxidization	R.T.(23℃)	day	90							/
	H.T.(160℃)	Minutes	15							/

We have many customers from all over the world, such as USA, UK, Korea, India, Iran, Italy, Romania, Russia, Argentina, Peru, Grace German, Netherlands, Polands...

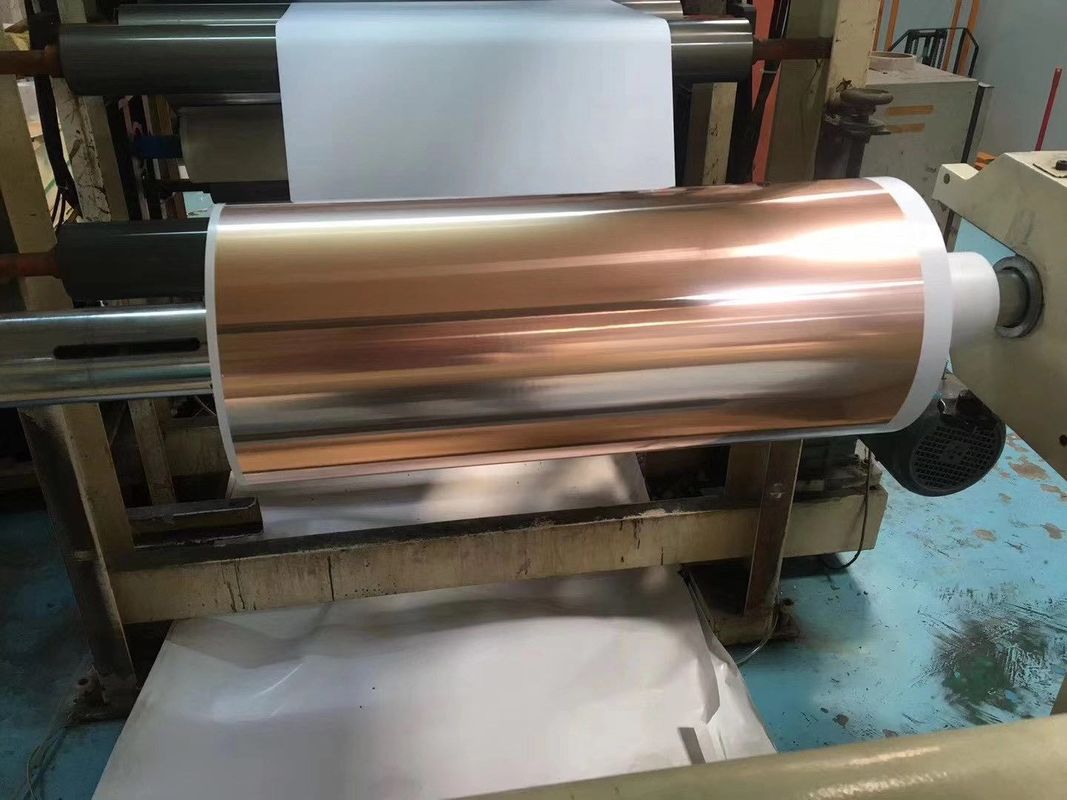

Copper Foil Pictures

10 Micron Copper Foil Sheet Roll , Double - Shiny Pure Copper Foil for Lithium Battery 0

Packing Pictures:

Tag:

sheet metal copper,

graphene copper,

large copper sheet
