Name: HTE ED Copper Foil High Temperature Elongation 12um Thickness For RFPCB
Brand: JIMA Copper
SKU: EDCUHTE
Price: 17.00 USD
Availability: InStock

Home Products ED Copper Foil

HTE ED Copper Foil High Temperature Elongation 12um Thickness For RFPCB

Product Details:

Place of Origin:	CHINA
Brand Name:	JIMA
Certification:	ISO9001：2008,ISO14001:2004，T28001-2011
Model Number:	EDCUHTE

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiations
Price:	Negotiations
Packaging Details:	wooden box
Delivery Time:	10~20days
Payment Terms:	L/C, T/T
Supply Ability:	6000MT per year

Contact Now

Detailed Product Description

Name:	High Temperature Elongation HTE ED Copper Foil 12um Thick With For RFPCB	Standard:	IPC 4562
Package:	Standard Export Wooden Box	Application:	RFPCB
Thickness:	12um,0.012mm	Feature:	High Temperature Elongation
Highlight:	edco copper foil , copper foil paper

High temperature elongation HTE ED copper foil 12um thick with for RFPCB

Products Detail:
a. single side matte and one side shiny
b. Nominal Thickness: 0.012mm.12um
c. Standard width:1290mm and 645,430mm
d. inner diameter: 76 mm
e. Name : High temperature elongation HTE ED copper foil 12um thick with for RFPCB
f. Quality Standard:IPC 4562.

Products use Application:
1.Polyimide board
2.Epoxy board
3. RFPCB

Description.
.Great adhesion to etching resist..
.Anti foil cracking by high elongation at elevated temperature.

HTE copper foil Technical data sheet for 12um (high elongation copper foil at high temperature)

Thickness		um	9	12
Area weight		g/m²	80±1	107±3
Roughness	(RA)	μm	0.2-0.4	0.2-0.4
Roughness	(RZ)	μm	<6.0	<6.5
Copper≥		%	99.8
Tensile Strength	state normal	Mpa	>300	>300
Tensile Strength	state temper (180℃)	Mpa	>15.0	>18.0
ElongationI	state normal	%	>3.0	>3.0
ElongationI	state temper (180℃)	%	>2.0	>2.5
Peel strength		N/mm	>1.0	>1.05
High temperature oxidation resistance(200℃, 40min)		No color change
Solderability		Good
Solderability		Good

FAQ:
Q1. you can provide technical data ?
Yes ,we can
Q2. Can you provide small qunaitty for trial ?
Yes , we can.

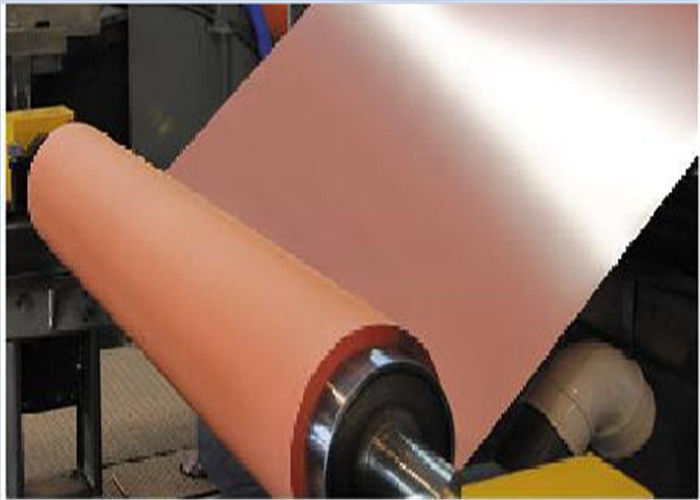

High temperature elongation HTE ED copper foil 12um thick product picture:
