FPC Materials Flexible Laminate Copper Clad Foil With PI Film / Epoxy AD / Copper Foil Structure

FPC Materials Flexible Laminate Copper Clad Foil With PI Film / Epoxy AD / Copper Foil Structure

  • High Light

    copper laminate sheets

    ,

    copper clad sheet

  • Name
    3L-FCCL
  • Category
    Single& Double-sided
  • Package
    Paper Box
  • Structure1
    PI Film/Epoxy AD/Copper Foil
  • Structure2
    Copper Foil/Epoxy AD/PI Film/Epoxy AD/Copper Foil
  • Aoplication
    Manufacturing Flexible PCB
  • Name
    FPC Materials Flexible Laminate Copper Clad Foil
  • Type
    Foil,roll
  • Place of Origin
    CHINA
  • Brand Name
    JIMA
  • Certification
    ISO9001/QC080000
  • Model Number
    SIF0120/DIF0120
  • Minimum Order Quantity
    Negotiations
  • Price
    Negotiations
  • Packaging Details
    wooden box
  • Delivery Time
    10~20days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    120000 m2/month

FPC Materials Flexible Laminate Copper Clad Foil With PI Film / Epoxy AD / Copper Foil Structure


Copper clad Laminate  for FPC Materials and Provide other materials for FPC

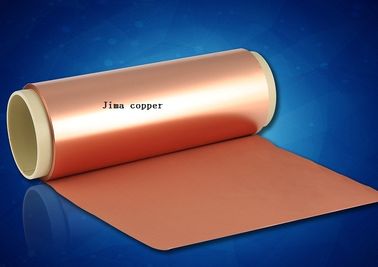

FPC Materials Flexible Laminate Copper Clad Foil With PI Film / Epoxy AD / Copper Foil Structure 0




My company produces the following FPC materials, Need to contact us,
look forward to serving you.


 Product series for FPC

category Specifi
cations
Adhesive PI(mil) Ad(um) Aoplication Structure
3L-FCCL single&
double-sided
SIF/DIF Epoxy 0.3/0.5/1/2/3 08/12/20 LCM,TP,HDD,light Bar 1.PI Film/Epoxy AD/Copper Foil
2.Copper Foil/Epoxy AD/PI Film/Epoxy AD/Copper Foil
Covering
film
Normal CIB Epoxy 0.3/0.5/1 0.8/15/25 LCM,TP,HDD 1.Release Paper/Epoxy AD/PI Film/White ink
2.Release Paper/Epoxy AD/White PI Film
3.Release Paper/Epoxy AD/Black PI Film
4.Release Paper/Epoxy AD/PI Film

white CWB Epoxy 0.5/1+15um ink 0.8/15/25 LED,Light Bar
black CIB Epoxy 0.3/0.5/1 0.8/15/25 LCM,TP
Bonding
Sheet
Low viscosity P-A Acrylic / 12.5/15/25 For multilayer FPC 1.Protective Film/(Acrylic/Epoxy AD)/
(PET Film/Paper)
High viscosity P-A1 Acrylic / 25/35/40 For FR4,
Steel and aluminum
Stiffener Without
adhesive
TIX Epoxy 2~16 / Gold finger of
FPC Reinforce
1.PI Film/Epoxy AD/PI Film/Epoxy AD/PI Film
2.(Release Paper/Film)/Acrylic AD/Composited PI Film
With adhesive TIA Epoxy and Acrylic 2~16 15/25/35
New
Product
Transparent
PET FCCL and CVL
SEK/
DEK/
CEK
Modified
polyester
0.5/1/2/3/5/7 08/12/20/25 For High-
transparent FPC
/
High
performance Bonding Sheet
PH-k Modified
Acrylic
/ 15/25/35 For Steel and aluminum
of FPC Reinforce
/
Epoxy
Bonding Sheet
P-E Epoxy / 12.5/25/40 For multilayer FPC /
LOW DK/DF CVL CIL Modified
Polyimide
0.3/0.5/1 08/15/25 For High-frequency
high speed FPC
/
FCCL
for power battery
SIF/DIF Epoxy 1/2/3/ 70 For power battery /
Note: The above is commonly used specifications, the thickness of the glue can be adjusted according to customer requirements.
S/D single side/double side P Bonding Sheet code
F Halogen free epoxy system T Stiffener
C coverlay X/A Without adhesive/Acrylic Adhesive
I/W (PI base Film/PI+Wihte ink) E PET Base Film
B Halogen free epoxy system K Modified polyester
A Low viscosity A1 High viscosity







Packing  method
