Name: Ultra Thin Rolled Copper Foil , Under 0.025um Roughness Rolled Copper Foil
Brand: JIMA
SKU: RACPFCCL
Rating: 4.6 (196 reviews)

Home Products Thin Copper Foil

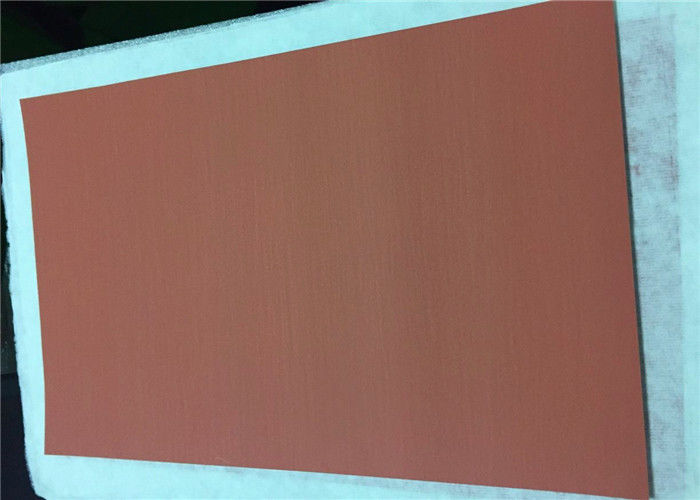

Ultra Thin Rolled Copper Foil , Under 0.025um Roughness Rolled Copper Foil

Product Details:

Place of Origin:	China,Shanghai
Brand Name:	JIMA
Certification:	SGS, ISO,Reach, RoHS
Model Number:	RACPFCCL

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	Negotiation
Packaging Details:	wooden carton
Delivery Time:	5-20days
Payment Terms:	T/T, L/C
Supply Ability:	1500 Ton per month

Contact Now

Detailed Product Description

Application::	FCCL,CCL	Thickness:	12um，12micron,0.012mm
Standard:	IPC-4562 / IPC9TM-650	Name:	Ultra Thin Rolled Copper Foil , Under 0.025um Roughness Rolled Copper Foil
Roughness:	Under 0.025um	Width standard tolerance:	+/-1.5mm
Highlight:	thin copper sheet , copper foil tape

Ultra Thin Rolled Copper Foil , Under 0.025um Roughness Rolled Copper Foil for FCCL CCL

Details

Thickness	12um,12micron,0.012mm
Roll Width range	under620 mm,Standard width:620mm
Roll Length range	500-5000 Me
Features	4.Thickness tolerance range :within +/-0.00054mm 5.Roughness:0.025um 6.Width standard tolerance:+/-1.5mm 7.Excellent uniformity and infiltration. 8.Surface:No indentation,No scratches,No wrinkles,No tear and other defect.
Packing	standard export wooden box package
Cu Content (%)	Above99.8%
Roll Inner Diameter	76mm,152mm, and can accepet custom
MOQ	100kgs,roll weight range:150kgs~350kgs

Application

High Frequency conductive PCB

.Electromagnetic Shielding Materials

.Computer

.Mobile material,cellphone,mobile phone

.FPC,Flexible Printed Circuit

.lithium lon battery

.FCCL

.CCL

Mill Test Certificate of Rolled thin copper foil

Thickness

6/7/8/9/10/12um

Width

≤620mm

Item

Unit

Parameter

Thickness

0.009

0.01

0.012

0.015

0.02

Grade

－

C1100

Copper content

≥99.95

Area Weight

g/㎡

80±3

95±3

107±4

134±4

178±6

Double-sided(Ra)

≤0.17

State Normal

Mpa

≥380

≥400

State Normal

≥1.2

≥1.4

≥1.5

≥1.6

Conductivity

20℃ IACS

≥95%

High temperature oxidation resistance(180℃ 1hour)

－

Qualified

Remark: we can accept customization as per your request, Standard Width,620(±1)mm

P.S

Keep the dry environment,and is better use it in 30days.

Compare between Rolled copper foil and ED copper foil
. Width: rolling copper foil max width is 620mm, electrolytic copper foil max width is 1380mm
. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal,

so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

FAQ:

Q1: What's your guarantee?

A: All our products have 6 months guarantee after you received goods, if any quality problem can contact us.

Q2: What's your delivery time ?

A: The common delivery time is 5-20 working days. but it's depends on the items and the quantity of your order.

A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz

Q3. what is your standard width?

A: 520mm and 620mm,we accept customization as request. we can cut into any size .

Q4. Can you provide Mill Test Certificate?
Yes , we can.

Q5. Can we come to China visit factory ?
Yes ,you can .

Q6. Can you cut into small size?
Yes, we can.

Q7: What's your minimum order quantity?

A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q8. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q9. what is your standard width?
