| Place of Origin: | china.Shanghai |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | EDSHE |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | usd 5-20 /kg |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-16days |
| Supply Ability: | 1900 Ton per month |
| Purity: | 99.95% | Thickness: | 4oz，140um，140micron，0.14mm |
|---|---|---|---|
| Splice: | ≤2 | Application: | Shielding Cooper Foil，shielding Application |
| Max Width: | 1360mm，1290mm，1380mm | Color: | Red |
| Test Method: | IPC 4562 / IPC-TM-650 | Item: | SGS Red Electrodeposited Copper Foil 4oz 140micron 0.14mm |
| High Light: | adhesive copper foil,copper shielding tape |
||

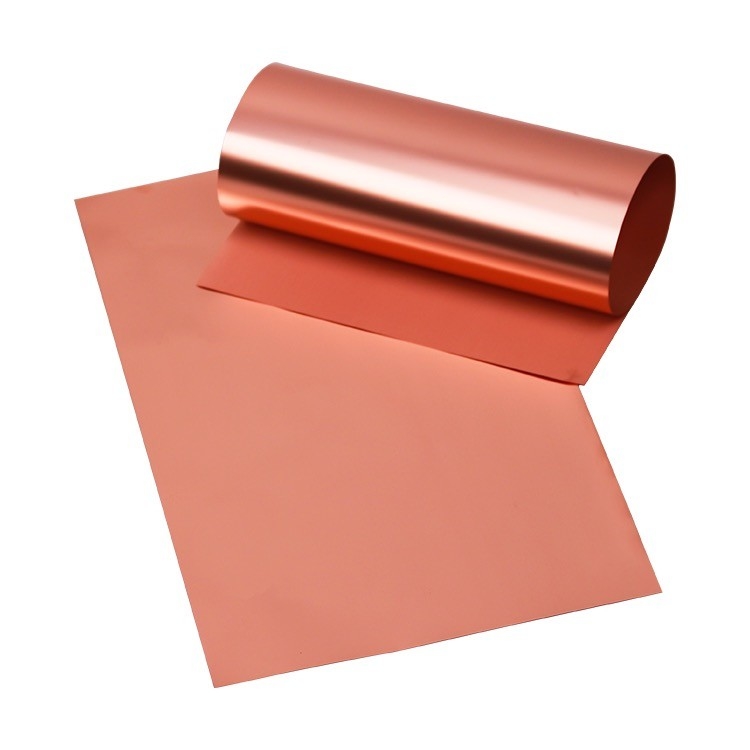

4oz 140micron thickness electrodeposited electrolytic ED shielding copper foil 0.14mm thickness for Shielding
Quickly Introduction
| Max width | 1360mm,1290mm,1380mm,standard width is 1290mm,can Custom as per your request |
| Thickness | 4oz,140um,140micron,0.14mm |
| ID of roll | 76mm or 152mm,can custom |
| Splice of roll | ≤2 |
| Test Method | IPC 4562 and IPC-TM-650 |
| Application | Shielding copper foil, shielding material |
|
1>the treated foil in gray or red |
|
|
Characteristics
|
2>High peel strength |
| 3>Good etch ability | |
| 4>Excellent adhesion to etching resis |
Packing and Mark :wooden box package
General propertites of ED Electromagnetic Copper Foil
| Classification | Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥220 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 | ≥4 | ≥4 | ≥4 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | ||||||||||||
1. Standard Width,1295(±1)mm,Max width is 1380mm,May according to the customer width request .
