Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

    • Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length
  • Thin Copper Foil Excellent Uniformity / Infiltration 500 - 5000m Length

    Product Details:

    Place of Origin: China,Shanghai
    Brand Name: JIMA
    Certification: SGS, ISO,Reach, RoHS
    Model Number: RACP

    Payment & Shipping Terms:

    Minimum Order Quantity: 100kg
    Price: Negotiation
    Packaging Details: wooden carton
    Delivery Time: 5-20days
    Payment Terms: T/T, L/C
    Supply Ability: 1500 Ton per month
    Contact Now
    Detailed Product Description
    Application:: Mobile Phone Material,cellphone Thickness: 6um~12um,6micron~12micron
    Standard: IPC-4562 And IPC9TM-650 Width Range: 100~620mm
    Thickness Toleranc: Within +/-0.00054mm Roughness: Under 0.025um
    Width standard  tolerance: +/-1.5mm
    High Light:

    thin copper sheet

    ,

    conductive copper foil

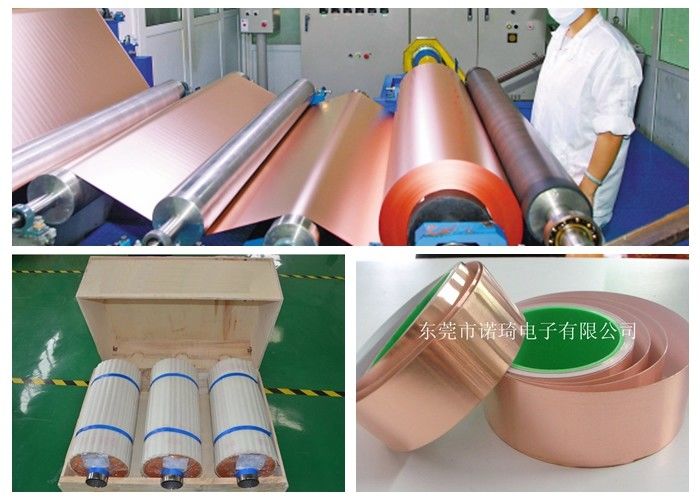

    6um~12um thin rolled copper foil for cellphone mobile phone material lithium battery

    Details

    Thickness 6um~12um,6micron~12micron,0.006mm~0.012mm
    Roll Width range under620 mm,Standard wisth:620mm
    Roll Length range 500 - 5000 Me
    Features



    1. Excellent uniformity and infiltration.

    2. Surface:No indentation​,No scratches​,No wrinkles​,No tear​ and other defect.

    3.Thickness  tolerance range :within +/-0.00054mm

    5. Roughness​:0.025um

    6. Width standard  tolerance:+/-1.5mm

    Packing standard export wooden box package
    Cu Content (%) Above99.8%
    Roll Inner Diameter

    76mm,152mm, and custom

    MOQ

    100kgs,roll weight range:150kgs~500kgs

    Application





    4.High Frequency conductive PCB

    5.Electromagnetic Shielding Materials

    6.Computer

    1.Mobile material,cellphone,mobile phone

    2.FPC,Flexible Printed Circuit

    3.lithium lon battery






    MTC of RA Rolled copper foil

    Thickness

    6/7/8/9/10/12um

    Width ≤620mm
    Item Unit Parameter
    Thickness MM 0.009 0.01 0.012 0.015 0.02
    Grade C1100 C1100 C1100 C1100 C1100
    Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
    Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
    Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
    State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
    State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
    Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
    High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified

     Remark: we can accept customization as per your request, Standard Width,620(±1)mm



    Keep the dry environment,and is better use it in 30days.

    FAQ:
    Q1: What's your guarantee?
    A: All our products have 6 months guarantee after you received goods, if any quality problem can contact us.
    Q2: What's your delivery time ?
    A: The common delivery time is 5-20 working days. but it's depends on the items and the quantity of your order.
    A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz
    Q3. what is your standard width?
    A: 520mm and 620mm,we accept customization as request. we can cut into any size .
    Q4. Can you provide COA?
    Yes , we can.
    Q5. Can we come to China visit factory ?
    Yes ,you can .
    Q6. Can you cut into small size?
    Yes, we can.
    Q7: What's your minimum order quantity?
    A: The MOQ is 150 kg.
    Q8: Can you supply the sample?
    A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
    Q9. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.
    Q10. what is your standard width?

    Compare between CA copper foil and ED copper foil
    . Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
    . Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal,

    so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
