12 Micron Thin Copper Foil Foll For PCB 76mm / 152mm Inner Diameter

12 Micron Thin Copper Foil Foll For PCB 76mm / 152mm Inner Diameter

    • 12 Micron Thin Copper Foil Foll For PCB 76mm / 152mm Inner Diameter
  • 12 Micron Thin Copper Foil Foll For PCB 76mm / 152mm Inner Diameter

    Product Details:

    Place of Origin: china
    Brand Name: JIMA
    Certification: SGS, ISO,Reach, RoHS
    Model Number: RACULP

    Payment & Shipping Terms:

    Minimum Order Quantity: 150kg
    Price: Negotiation
    Packaging Details: wooden carton
    Delivery Time: 5- days
    Payment Terms: T/T, L/C
    Supply Ability: 1500 Ton per month
    Contact Now
    Detailed Product Description
    Color: Red Application:: Mobile Phone Material
    Thickness: 0.012mm 12um,12micron Standard: IPC-4562,IPC9TM-650
    Width Range: 100~620mm Length: 500~5000meter
    High Light:

    thin copper sheet

    ,

    conductive copper foil

    0.012mm 12um 12micron thin rolled copper foil for Samsung mobile material PCB FPC lithium battery

    Quickly
    Introduction

    Thickness 0.012mm ,12um 12micron thin rolled copper foil For samsung mobile material pcb FPC lithium battery
    Width range 100~620 mm
    Length 500-5000 Meter
    Features



    Excellent uniformity and infiltration.

    double shiny side ,superior rupture endurance.

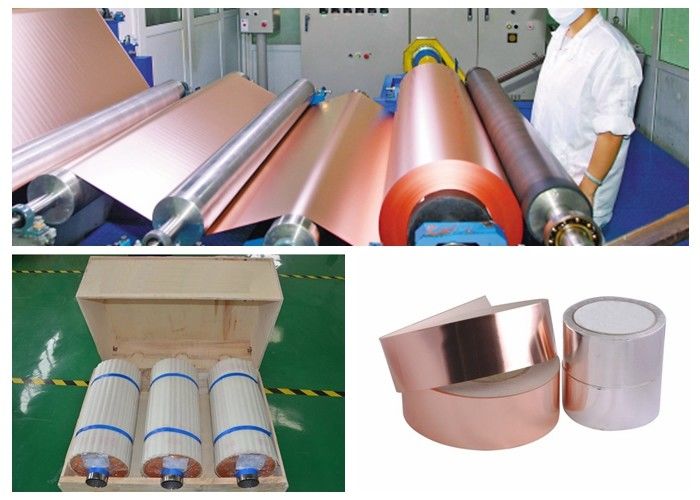

    Packing wooden box
    Cu Content (%) above99.8%
    Inner Diameter 76mm/152mm, custom
    Stype roll ,foil
    Application

    1.Samsung mobile​ ,cellphone, mobile phone

    2.hybrid-electric vehicle.(HEV)

    3.Excellent uniformity and infiltration.

    4.PCB

    5.Lithium battery

    6.FPC

    7.Electronics industry

    8.New energy industry




    Mill Test Certificate of  rolled copper foil

    Thickness

    6/7/8/9/10/12/15/20um

    Width ≤620mm
    Item Unit Parameter
    Thickness MM 0.009 0.01 0.012 0.015 0.02
    Grade C1100 C1100 C1100 C1100 C1100
    Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
    Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
    Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
    State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
    State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
    Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
    High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified

     Remark: we can accept customization as per your request, Standard Width,620(±1)mm


    Compare between rolled copper foil and ED copper foil
    . Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
    . Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.


    FAQ:
    Q1: What's your guarantee?
    A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
    Q2: What's your delivery time ?
    A: The common delivery time is 5-20working days. The specific delivery time depends on the items and the quantity of your order.
    Q3: What's your MOQ?
    A: The MOQ is 150 kg.
    Q4: Can you supply the sample?
    A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.also we can provide A4sampe
    Q5. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.
    Q6. what is your standard width?
    A: 520mm and 620mm,we accept customization for the width. we can cut into as per your any size.

    Keep the dry environment,and is better use it in 30days.
