8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick

8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick

    • 8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick
  • 8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick

    Product Details:

    Place of Origin: china,Shanghai
    Brand Name: JIMA
    Certification: SGS, ISO,Reach, RoHS
    Model Number: RACUMB

    Payment & Shipping Terms:

    Minimum Order Quantity: 50kg
    Price: Negotiation
    Packaging Details: wooden carton
    Delivery Time: 5-15 days
    Payment Terms: T/T, L/C
    Supply Ability: 1500 Ton per month
    Contact Now
    Detailed Product Description
    Application:: Mobile Phone Material,cellphone,Battery Thickness: 8um,8micron,0.008mm
    Standard: IPC-4562/ IPC9TM-650/IPC-4101C Width Range: 100~620mm
    Thickness Toleranc: Within +/-0.00054mm Roughness: Under 0.025um
    Name: 8 Micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick Roll Length: 500~500m
    High Light:

    thin copper sheet

    ,

    copper foil tape

    8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick



    8micron  8um ultra rolled thin copper foil pcb material thin copper foil for Lithium-lon battery FPC



    Product Description

    8 micron ED copper foil with double-shiny surface. used in Li-ion battery. it has the characteristics of the symmetrical structure of both sides, the metal density nearing the copper theoretical density, very low surface profile, and high elongation and tensile strength.


    Quickly details

    Thickness 8micron,8um,0.008mm
    Roll Width 100~620 mm
    Roll Length 500-5000 Meter
    Features



    1. Excellent uniformity and infiltration.

    2. double shiny side ,superior rupture endurance.

    3.Surface:No indentation​,No scratches​,No wrinkles​,No tear​ and other defect.

    4. thickness standard tolerance:within +/-0.00054mm

    5. Roughness​:0.025um

    6. Width standard  tolerance:+/-1.5mm

    7. Drug Resistance

    8. Adhesion of the substrate

    Package wooden box
    Cu Content (%) Above99.8%
    Roll Inner Diameter

    76mm,152mm, custom

    Roll Stype

    roll ,foil



    ED Copper foil techncial data

    Item Nominal thickness
    Double shiny Single (double) matte Super matte
    8µm 9µm 12µm 15µm 20µm 10µm 12µm 10µm 12µm

    Area Weight

    (g/m2)

    70~75 85~90 100~105 128~133 175~181 95~100 105~110 95~100 105~110

    Tensile Strength

    (kg/mm2)

    Normal temperature ≥30.0 ≥30.0 ≥30.0 ≥30.0 ≥30.0 ≥25.0 ≥25.0 ≥25.0 ≥25.0

    Elongation

    (%)

    Normal temperature ≥5.0 ≥5.0 ≥5.0 ≥6.0 ≥8.0 ≥2.5 ≥2.5 ≥3.0 ≥3.0
    Roughness Rz(µm) ≤3.0 negotiable

    Thickness

    (µm)

    (-0;+3) negotiable

    Oxidation resistance

    (160℃/10min)

    No oxidation and discoloration



    Details Package: wooden box



    Keep the dry environment,and is better use it in 30days.

    Compare between CA copper foil and ED copper foil
    . Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
    . Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal,

    so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.



    FAQ:
    Q1: What's your guarantee?
    A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
    Q2: What's your delivery time ?
    A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
    A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz
    Q6. what is your standard width?
    A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing


    Why chooose us

    As a professional thin copper foil manufacturer

    1. We have more than 15 years’ production experience and more than 11 years exporting experience

    2. A full set of advanced facilities and a team of skilled technical workers

    3. Factory direct sales with competitive price

    4. Best materials selection and strict quality control

    5. Considerate service, prompt delivery, each inquiry will be consulted very carefully

    6. A professional and excellent working team

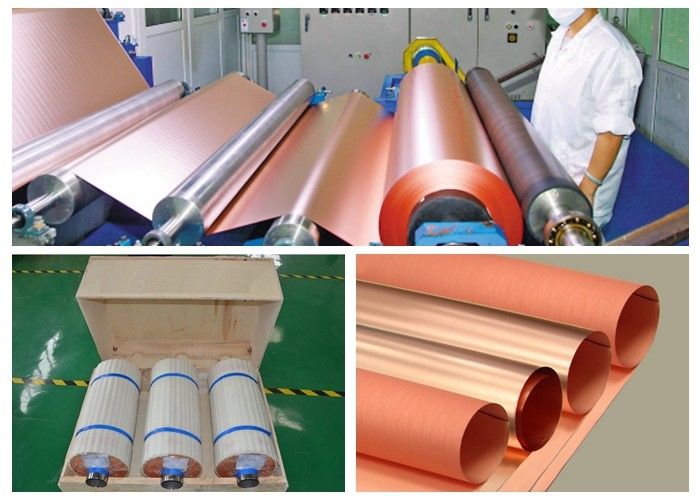

    Copper foil Photos and Packing Pictures

    8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick 0

    8 micron Double Shiny Copper Foil For Mobile Phone Material 8um Thick 1
