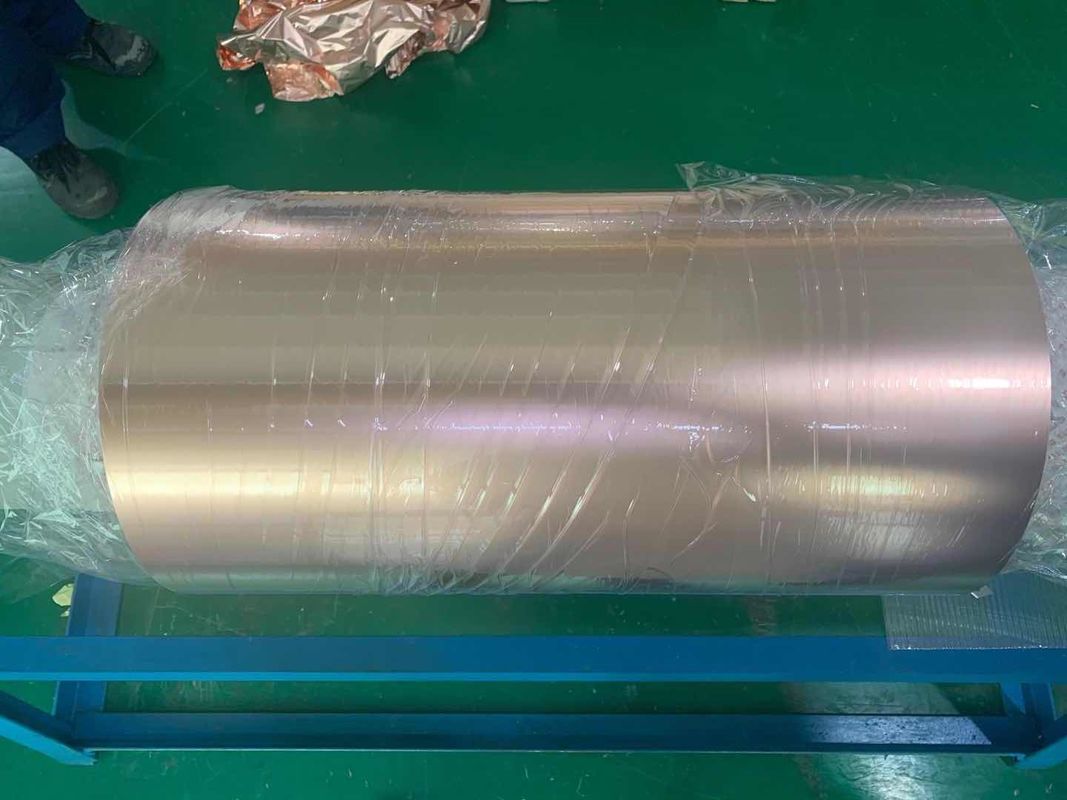

Rolled Copper Foil For Conductive Tape , Custom Inner Diameter Copper Foil Sheet Roll

Rolled Copper Foil For Conductive Tape , Custom Inner Diameter Copper Foil Sheet Roll

    • Rolled Copper Foil For Conductive Tape , Custom Inner Diameter Copper Foil Sheet Roll
  • Rolled Copper Foil For Conductive Tape , Custom Inner Diameter Copper Foil Sheet Roll

    Product Details:

    Place of Origin: china
    Brand Name: JIMA
    Certification: SGS, ISO,Reach, RoHS
    Model Number: RACULP

    Payment & Shipping Terms:

    Minimum Order Quantity: 150kg
    Price: Negotiation
    Packaging Details: wooden carton
    Delivery Time: 5- days
    Payment Terms: T/T, L/C
    Supply Ability: 1500 Ton per month
    Contact Now
    Detailed Product Description
    Color: Red Application:: Mobile Phone Material
    Thickness: 0.012mm 12um,6um,7um,8um,9um Standard: IPC-4562,IPC9TM-650
    Stype: Foil,roll Width Range: 100~620mm
    High Light:

    copper foil tape

    ,

    conductive copper foil

    6um 7um 8um 9um 0.012mm 12um thin rolled copper foil for samsung mobile material/ Conductive Tape

    Quickly Introduction

    Thickness 6um,7um,8um,9um, 0.012mm ,12um thin coll copper foil For samsung mobile material
    Width range 100~620 mm
    Length 500-5000 Meter
    Features



    Excellent uniformity and infiltration.

    double shiny side ,superior rupture endurance.


    Packing wooden box
    Cu Content (%) above99.8%
    Inner Diameter 76/152/ custom
    Stype roll ,foil
    Application

    1.Samsung mobile​

    2.hybrid-electric vehicle.(HEV)

    3.Excellent uniformity and infiltration.




    Compare between CA copper foil and ED copper foil
    . Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
    . Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

    Technical data sheet of RA rolled copper foil

    Thickness

    6/7/8/9/10/12/15/20um

    Width ≤620mm
    Item Unit Parameter
    Thickness MM 0.009 0.01 0.012 0.015 0.02
    Grade C1100 C1100 C1100 C1100 C1100
    Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
    Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
    Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
    State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
    State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
    Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
    High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified

     Remark: we can accept customization as per your request, Standard Width,620(±1)mm



    FAQ:
    Q1: What's your guarantee?
    A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
    Q2: What's your delivery time ?
    A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
    Q3: What's your minimum order quantity?
    A: The MOQ is 150 kg.
    Q4: Can you supply the sample?
    A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
    Q5. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.
    Q6. what is your standard width?
    A: 520mm and 620mm,we accept customization for the width. we can cut it into any siz

    Keep the dry environment,and is better use it in 30days.
