| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | EDCUSTD |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | usd 15-20 kg |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Supply Ability: | 1000 Ton per month |
| Purity: | Above 99.8% | Thickness: | 3oz，105um，105micron，0.1mm |
|---|---|---|---|
| Tensile Strength: | ≥ 150 MPa | Peel Strength: | ≥ 1 N/mm |
| Surface Treatment: | Side Raw + One Side Polished | Splice: | Under 2 |
| Application: | Shielding Cooper Foil | ||
| High Light: | adhesive copper foil,copper shielding tape |
||
Max width Electromagnetic electrodeposited electrolytic ED copper foil 0.1mm for Shielding applications (Standard IPC 4562)
| Features | 1.the treated foil in gray or red |
| 2.High peel strength | |
| 3.Good etch ability | |
| 4.Excellent adhesion to etching resist |
| 1.Phenolic resin board | |
| Application: | 2.Epoxy board |
| 3.shielding application |
Typical properties of Standard copper foil for phenolic resin board and epoxy board.
|
Classification
|
Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥220 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 | ≥4 | ≥4 | ≥4 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | ||||||||||||
1. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
2. Standard Width,1295(±1)mm,May according to the customer request tailor.

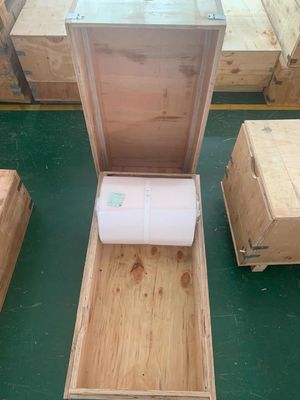

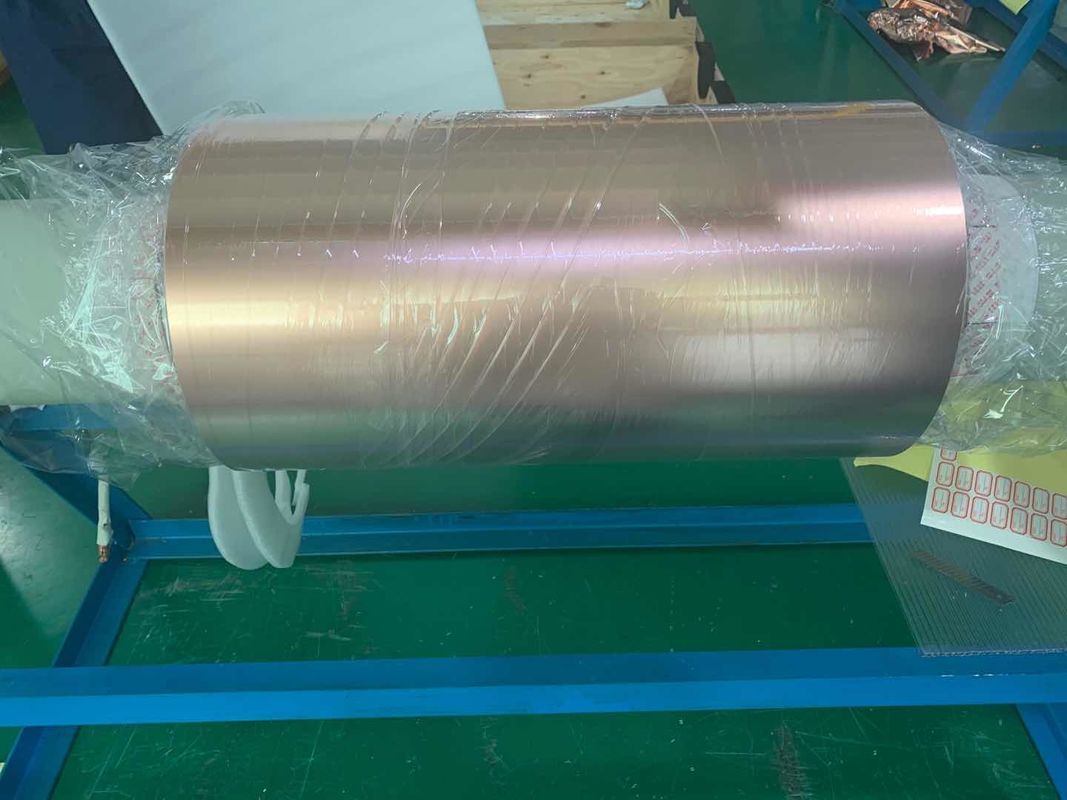

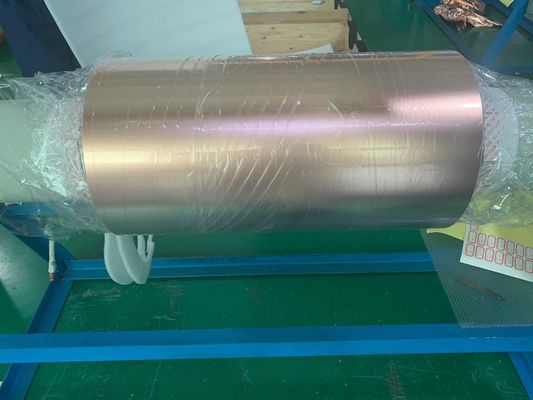

Packing and Mark of ED Shielding copper foil :
