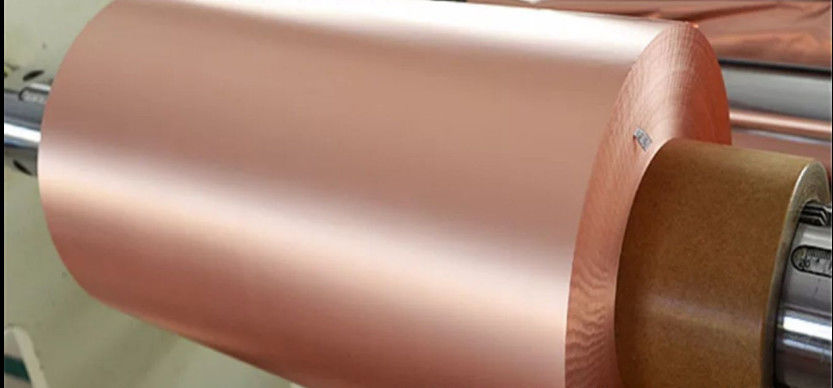

​1380mm Conductive Copper Foil for FCCL High Temperature Resistance

​1380mm Conductive Copper Foil for FCCL High Temperature Resistance

  • ​1380mm Conductive Copper Foil for FCCL High Temperature Resistance
​1380mm Conductive Copper Foil for FCCL High Temperature Resistance
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree
Color: Red Or Black Elongation: ≥ 1.5%
Application:: FCCL,FPC Length Per Roll: 500 - 5000 Meter
High Light:

99.95% thin copper sheet

,

1380mm copper foil tape

,

FCCL Thin Copper Foil

​Width 1380mm Conductive Copper Foil For FCCL High Temperature Resistance



Specification Reference



  • T: 10mic.
  • W: 1380 mm,factory standard width is 1290mm.
  • Internal Diameter : 76 mm/152 mm.
  • Color:Red or back.



Applicable of LP Copper Foil.

  • Casting and lamination type Flexible Copper Clad Laminate.
  • Super fine pattern FPC.



Low Profile Copper Foil Feature.

  • High strength.
  • High elongation.



Different Between CA Copper Foil and ED Copper Foil.

  1. RA copper foil (Rolling process),ED copper foil (Electrodeposition process).
  2. Ra copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.



FAQ:

Q1: Is it the Fumigation carton box?

A1:Yes ,it is .



Q2: Can you cut into small size?

A2:Yes, we can.



Q3:Is the copper foil Floating in box?

A3:Yes, it is .



LP/Low Profile Copper Foil of Properties.

Classification

Unit Requirement Test Method
Foil Designation /   1 H M 1 IPC-4562A
Nominal thickness / 10um 12um 1/2 OZ(18um) 3/4 OZ(25um) 1 OZ(35um) IPC-4562A
Area Weight g/㎡ 98±4 107±4 153±5 228±8 285±10

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side(Ra) սm ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5

IPC-TM-650

2.3.17

Matte side(Rz) um ≤4.0 ≤4.5 ≤5.5 ≤6.0 ≤8.0
Tensile Strength R.T.(23℃) Mpa ≥260 ≥260 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

H.T.(180℃) Mpa ≥180 ≥180 ≥180 ≥180 ≥180
Elongation R.T.(23℃) ≥5 ≥6 ≥8 ≥10 ≥12

IPC-TM-650

2.3.18

H.T.(180℃) ≥5 ≥6 ≥7 ≥8 ≥8
Peel Strength(FR-4) N/mm 0.7 0.8 1.0 1.1 1.2

IPC-TM-650

2.4.8

Ibs/in 4 4.6 5.7 6.3 6.9
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) 180days /
H.T.(200℃) 60 Minutes /

Standard Width 1290mm,max width 1380(±1)mm,May according to the customer request.
