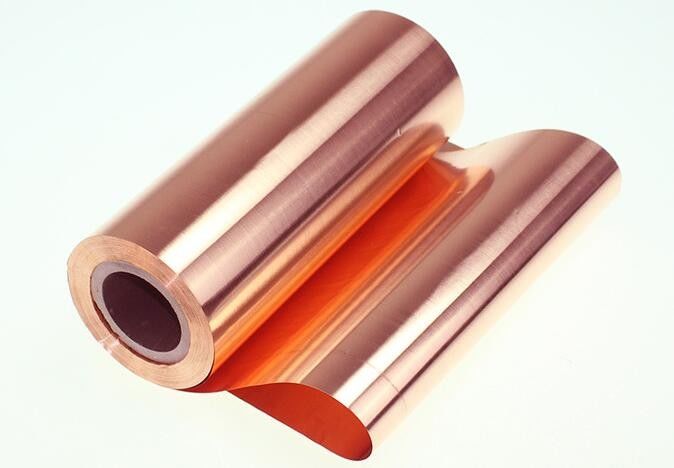

10um Lithium Battery Copper Foil Roll , RA Double Shiny Thin Copper Foil

10um Lithium Battery Copper Foil Roll , RA Double Shiny Thin Copper Foil

  • 10um Lithium Battery Copper Foil Roll , RA Double Shiny Thin Copper Foil
  • 10um Lithium Battery Copper Foil Roll , RA Double Shiny Thin Copper Foil
10um Lithium Battery Copper Foil Roll , RA Double Shiny Thin Copper Foil
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree Thickness: 1/2 Oz,3/4 Oz,1 Oz,2 Oz,
Color: Red Or Black Elongation: ≥ 1.5%
Tensile Strength: ≥ 160 MPa
Highlight:

copper foil sheet

,

copper sheet roll

RA double Shiny 0.010mm (10um) Rolled Copper Foil for Lithium Batteries of Notebook PC



Quickly Details

  • Thickness: 10um

  • Width: 620 mm

  • ID: 3 inch,3 inch

  • Alloy:C11000

  • Temper: H

Features:


  • Suitable for high capacity rechargeable battery as the Stable properties.

  • Eco-friendly products and processes.


Application:


  • Lip: mobile phone
  • XEV: hybrid-electric vehicle.(HEV)
  • Lib: notebook PC, mobile phone.


Compare between CA Copper Foil and ED Copper Foil


  1. Strength toughness: Rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

  2. Width: roll copper foil width ≤ 620mm, ED copper foil width ≤ 1380mm



Packaging: wooden carton
10um Lithium Battery Copper Foil Roll , RA Double Shiny Thin Copper Foil 0

FAQ:
Q1: What's your minimum order quantity?
A1: The MOQ is 150 kg.


Q2: Can you supply the sample?
A2: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q3. Do you test all your goods before delivery?
A3: Yes, we have 100% test before delivery.



TDS of Roll Copper Foil Lithium Battery

Thickness

9/10/12/15/20um

 Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade － C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) － Qualified Qualified Qualified Qualified Qualified


Remark: 620MM is the Standard Width
