Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene

Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene

  • Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene
Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene
Product Details:
Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: RACULP-S-B/G/R
Payment & Shipping Terms:
Minimum Order Quantity: 100kg
Price: Negotiation
Packaging Details: Standard Export Wooden Carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Products Name: Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene Thickness: 6um 9um 12um 18um 35um 50um 70um
ID: 76MM,152MM Sample: Can Supply
High Light:

160MPa electrodeposited copper foil

,

2N/mm electrodeposited copper foil

,

C1100 copper metal sheets

Red 12um Thin Graphene Copper Roll , RoHS Approval Copper Metal Sheets

Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene

 Compare between CA copper foil and ED copper foil
. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.


Quickly details
Foil Thickness: 1/3oz
Width: Max 620 mm
Length: 500-5000 M
Cu Alloy: C1100

Features:
1. double shiny side ,superior rupture endurance.
2. Excellent uniformity and infiltration.

Application:
. hybrid-electric vehicle.(HEV)
. Parallel hybrid electric vehicle(PHEV)
. Lib: mobile phone.

Details Package: wooden box

FAQ:
Q1: delivery time ?
A: Common delivery time 35 working days.


Q2: What's your minimum order quantity?
A: The MOQ is 150 kg.

Q3. what is your standard width?

A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.


Technical data sheet of RA rolled copper foil for battery.

Thickness

9/10/12/15/20um

Width ≤620mm
Item Unit Parameter
Thickness MM 0.009 0.01 0.012 0.015 0.02
Grade C1100 C1100 C1100 C1100 C1100
Copper content % ≥99.95 ≥99.95 ≥99.95 ≥99.95 ≥99.95
Area Weight g/㎡ 80±3 95±3 107±4 134±4 178±6
Double-sided(Ra) Um ≤0.17 ≤0.17 ≤0.17 ≤0.17 ≤0.17
State Normal Mpa ≥380 ≥400 ≥400 ≥400 ≥400
State Normal % ≥1.2 ≥1.4 ≥1.5 ≥1.5 ≥1.6
Conductivity 20℃ IACS ≥95% ≥95% ≥95% ≥95% ≥95%
High temperature oxidation resistance(180℃ 1hour) Qualified Qualified Qualified Qualified Qualified


Remark: accept customization, Standard Width,620(±1)mm.

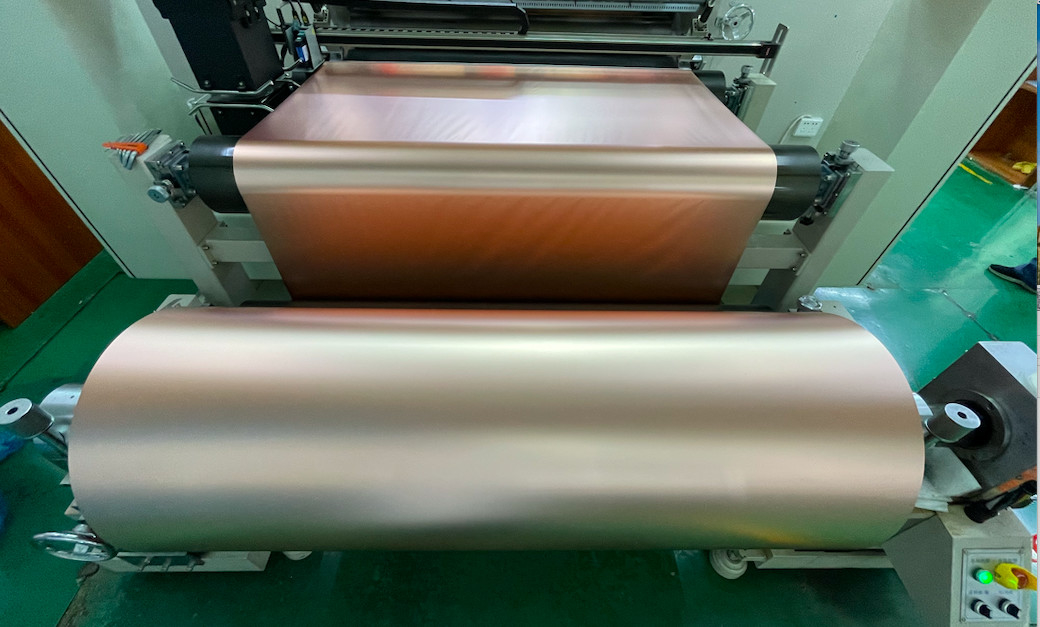

Copper Foil Photos Show :

Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene 0

Electrodeposited Copper Foil 12um , C1100 Rolled Copper Foil For Graphene 1
