| Place of Origin: | CHINA |
| Brand Name: | JIMA |
| Certification: | YS/T 1039-2015 |
| Model Number: | THB112 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden box |
| Delivery Time: | 10~30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 120000 m2/month |
| Name: | Blackened Rolled Copper Foil-THB111Y | Package: | Standard Wooden Box |
|---|---|---|---|
| Width: | 520mm 630mm | Features1: | High Flexibility |
| Features2: | Low Roughness | Aoplication: | Manufacturing Flexible PCB |
| High Light: | 520mm Rolled Copper Foil,630mm Rolled Copper Foil,Blackened sheet metal copper |
||

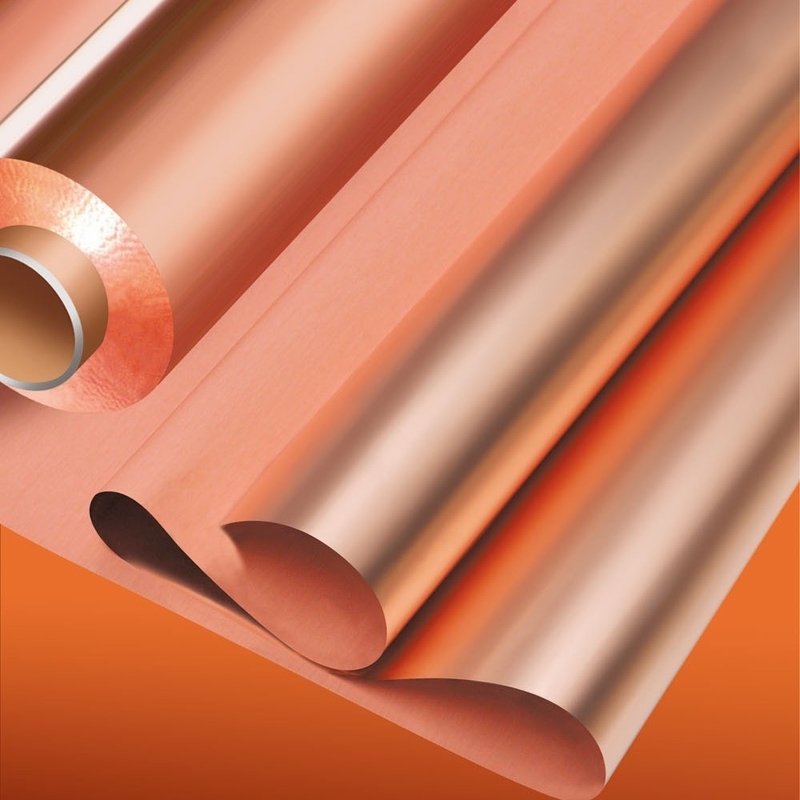

Blackened Rolled Copper foil With black matte side70um 35um used in Flexible Copper Clad Laminate
The company has imported a complete set of international advanced level production equipments and experiment instrument for electronic rolled copper foil.Black rolled copper foil with good surface treatment,Very suitable for FPC applications.
For FPC
Low Roughness,High Flexibility
Excellent Etching Performance
|
Item |
Unit |
Requirement |
Test Method |
|||||||
|
18um |
9um |
22um |
12um |
50um |
35um |
70um |
||||
|
Basic Weight |
g/㎡ |
144.9-158.6 |
80+/-2 |
196+/-4 |
107+/-3 |
445+/-5 |
289.8-317.2 |
579.5-634.4 |
GB/T29847-2013 |
|
|
Width Accuracy |
mm |
±1.0 |
GB/T 26303 |
|||||||
|
Purity |
% |
≥99.97 |
GB/T 5121 |
|||||||
|
Surface |
S Side(Ra) |
um |
≤0.30 |
max.0.2 |
max.0.2 |
max.0.2 |
max.0.2 |
≤0.30 |
≤0.30 |
GB/T29847-2013 |
|
M Side(RZ) |
um |
≤2.0 |
0.8-1.5 |
0.8-1.5 |
0.8-1.5 |
0.8-1.5 |
≤2.0 |
≤2.0 |
||
|
Tensile |
Rm Normal |
N/m㎡ |
≧370 |
|
|
|
|
≧370 |
≧370 |
GB/T29847-2013 |
|
Rm 180℃×30min |
N/m㎡ |
170-190 |
160-180 |
180-210 |
160-180 |
200-220 |
≧170 |
≧170 |
||
|
Elongation |
A50 Normal |
% |
≧1.0 |
|
|
|
|
≧1.0 |
≧1.0 |
GB/T29847-2013 |
|
R50 180℃×30min |
% |
≧8 |
≧7 |
≧9 |
≧8 |
≧13 |
≧11 |
≧12 |
||
|
Peel Strength |
N/mm |
≧1.0 |
≧0.8 |
≧1.0 |
≧0.8 |
≧1.4 |
≧1.2 |
≧2.0 |
GB/T29847-2013 |
|
|
Pinhole & Soakge Point |
Pcs |
Non |
GB/T29847-2013 |
|||||||
|
Oxidation |
Room |
day |
180 |
/ |
||||||
|
200℃ |
min |
60min. |
GB/T29847-2013 |
|||||||
My company produces the FPC materials, Need to contact us,
look forward to serving you.
