| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | RACULP-S-B/G/R |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | Negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Ton per month |
| Elongation: | ≥ 5% | Tensile Strength: | ≥ 150MPa |
|---|---|---|---|
| Roughness: | RA≤0.2μm | Application:: | Mylar Tape |
| High Light: | 150MPa Rolled Copper Foil,SGS Rolled Copper Foil,EMI shielding copper sheet roll |
||

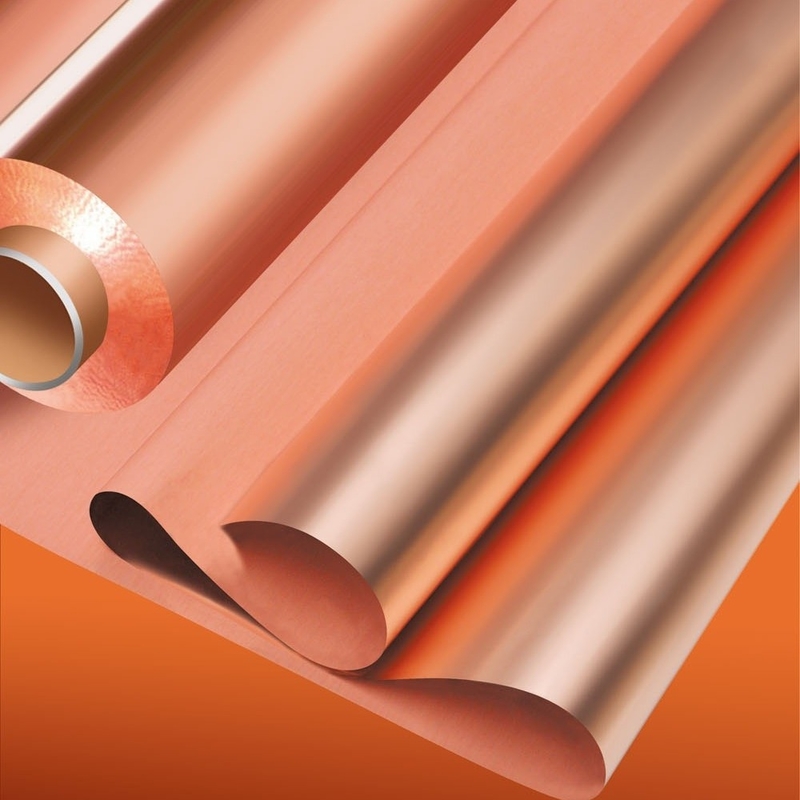

Color Uniformity Copper Flashing Rolls , ISO RA Annealed Soft Copper Foil
ID: 40mm,76 mm,152 mm
Length: ≤ 5000 meter
Alloy: T2
Temper: O
Application: EMI tape
Details Packaging : wooden box
Compare between CA copper foil and ED copper foil
Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
Q1: If provide free sample?
A: We can supply A4 free sample.
Q2. If provide test report before delivery?
A: Yes, we will be.
Q3. What is your standard width?
A: Common 620mm,we accept customization for the width.
|
Thickness |
0.009-0.09mm |
Width≤620mm |
||||||||
|
Item |
Unit |
Parameter |
|
|
|
|||||
|
Thickness |
MM |
0.009 |
0.012 |
0.020 |
0.035 |
0.07 |
0.09 |
|||
|
Grade |
－ |
C1100 |
C1100 |
C1100 |
C1100 |
C1100 |
C1100 |
|||
|
Copper content |
% |
≥99.95 |
≥99.95 |
≥99.95 |
≥99.95 |
≥99.95 |
≥99.95 |
|||
|
Area Weight |
g/㎡ |
80±2 |
107±4 |
178±6 |
311±10 |
623±19 |
801±24 |
|||
|
Roughness |
(RA) |
Um |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||
|
Tensile Strength |
Temper soft (O) |
Mpa |
150-180 |
160-200 |
180-220 |
200-230 |
210-240 |
220-260 |
||
|
Elongation(%) |
Temper soft (O) |
% |
≥5 |
≥6 |
≥8 |
≥15 |
≥20 |
≥25 |
||
|
Inter diameter |
mm |
3in,6in,80mm |
||||||||
|
Storage condition |
－ |
T≤25℃,RH≤60%,180 days |
||||||||
Remark: Accept customized
