70um C1100 Soft Copper Foil 400mm Width Rolled Ccopper Foil For Precision Electronics

70um C1100 Soft Copper Foil 400mm Width Rolled Ccopper Foil For Precision Electronics

  • High Light

    expanded copper foil

    ,

    soft copper sheet

    ,

    rolled ccopper foil for electronics

  • Application
    Transformer, PCB, Battery, Precision
  • Cu(Min)
    99.95%
  • Model Number
    T2 /Cu-ETP/C11000/ C1100/R-Cu57/C101
  • Width Range
    50 To 520mm
  • Roll Weight
    100-350kgs
  • Temper
    Soft,O,annealed
  • Thickness Range
    70um
  • Item
    70um C1100 Soft Copper Foil 400mm Width,Rolled Ccopper Foil C1100-Soft
  • Place of Origin
    Shanghai China
  • Brand Name
    JIMA
  • Certification
    SGS, ISO,Reach, RoHS,CQC
  • Model Number
    RCU001
  • Minimum Order Quantity
    100Kg
  • Price
    Negotiations
  • Packaging Details
    Wooden carton
  • Delivery Time
    7-15 days
  • Supply Ability
    5000Ton per month

70um C1100 Soft Copper Foil 400mm Width Rolled Ccopper Foil For Precision Electronics

70um C1100 Soft Copper Foil 400mm Width,Rolled Ccopper Foil C1100-Soft



Detail

 Item 70um C1100 Soft Copper Foil 400mm Width,Rolled Ccopper Foil C1100-Soft
Copper foil thickness 70um
Copper type C1100,rolled copper foil,annealed Rolled copper foil
Copper content ≥ 99.9%
Bobbin inner diameter 76mm
package Wooden box
Cut roll width 5mm - 520mm,typical thickness :400mm
Coil length and weight as per request
Jumbo roll size Width can be cutting as request
MOQ 100 Kgs
Characteristics no oiling, no rolling emulsion, dry, degreased
Flatness good flatness close to 100%, without stress or others that can influence the production
Application transformer, PCB, battery, precision electronics, electrical appliances



C1100-Soft Copper Copper Foil Technical Data

Thickness

(mm)

Square Meter

(m2/g)

Weight

(g/m2)

Tensil Strength (Mpa)

Elongation

(%)

0.018 0.0063 160.2 220 - 300 6 - 20
0.025 0.0045 222.5
0.030 0.0037 267
0.035 0.0032 311.5
0.040 0.0028 356
0.043 0.0026 382.7
0.050 0.0022 445 300 - 400 20 - 30
0.060 0.0019 534
0.075 0.0015 667.5
0.100 0.0011 890 30 - 40
0.130 0.0009 1157
0.150 0.0007 1335



FAQ



Q3.Information needed if I want a quotation?



A Name, Standard, Material Grade(Chemical Composition), Size Quantity & application



Q4. Can we visit your company/factory before place the order?



A. Yes. Welcome anytime



Q5: How does your factory do regarding quality control?



A. Quality is priority. We always attach great importance to quality controlling from beginning to end.

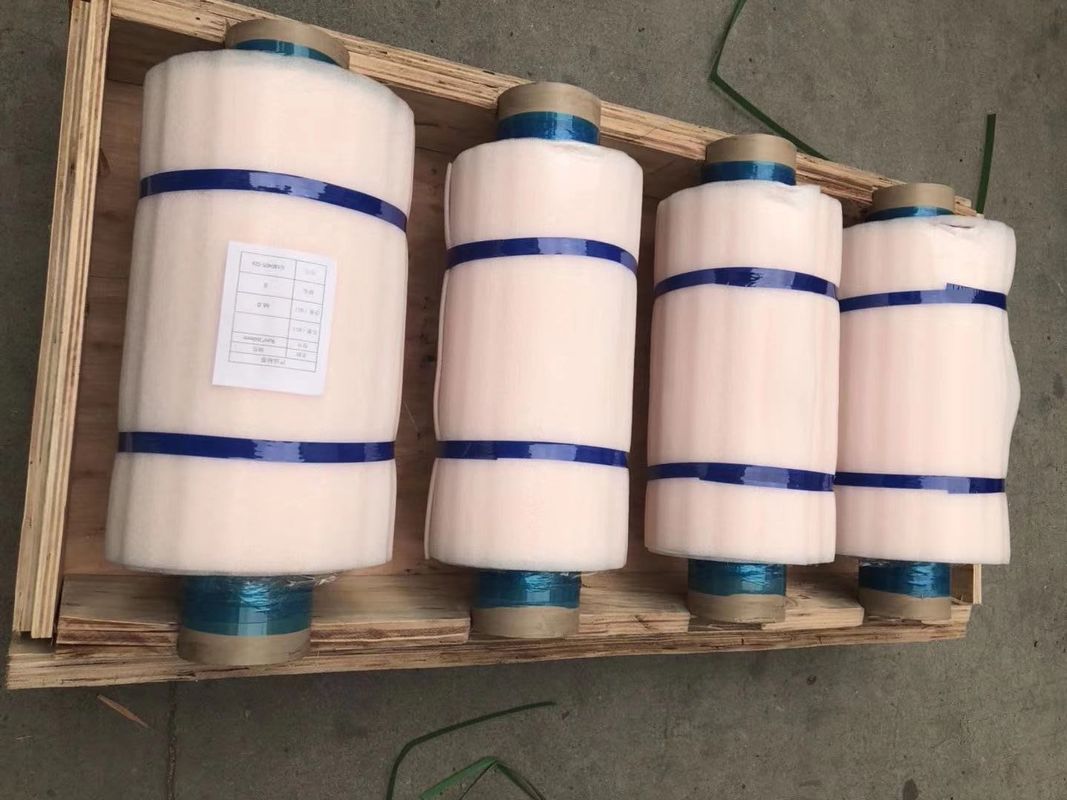

Wooden Box Package Photos

70um C1100 Soft Copper Foil 400mm Width Rolled Ccopper Foil For Precision Electronics 0

70um C1100 Soft Copper Foil 400mm Width Rolled Ccopper Foil For Precision Electronics 1
