| Place of Origin: | CHINA |
| Brand Name: | JIMA |
| Certification: | ISO9001：2008,ISO14001:2004，T28001-2011 |
| Model Number: | EDSCP |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | wooden box |
| Delivery Time: | 10~20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 6000MT per year |
| Name: | Shielding Copper Foil 140um Thick 1350mm Width For Mri Room Shielding | Standard: | GB/T5230-1995，IPC-456 |
|---|---|---|---|
| Package: | Standard Wooden Box | Sample MOQ: | Negotiations |
| Coil ID: | 76MM | Cu Content: | 99.98% |
| High Light: | adhesive copper foil,copper shielding tape |
||

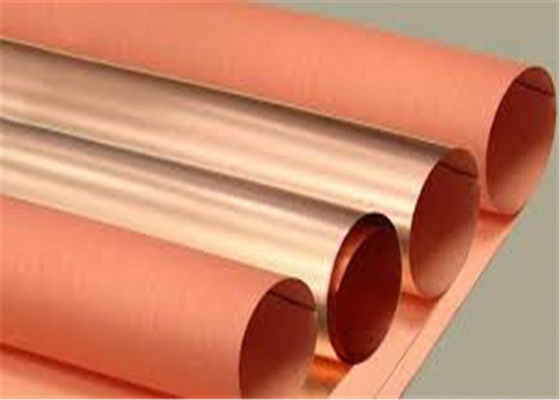

Shielding Electrolytic ED Copper Foil 140um thick 1350mm width for Mri Room Shielding
Copper Foil for Shielding Products Description:
1. Common Thickness:140um,
2. Typical Width:1290mm,1300mm,1350mm, MAX.1380mm,Can be customized.
3. Typical application:Sheilding
4. Standard: IPC-456
5. Cu content:99.98%
6. Splice:0-2pieces ,based on quantity.
Electrolytic Copper Shielding Foil Properties
|
Classification
|
Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥220 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥2 | ≥3 | ≥3 | ≥4 | ≥4 | ≥4 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | / | |||||||||||
FAQ:
Q2: What's your delivery time ?
A: The common delivery time is 10-15 days. based on your quantity and item.
Q3: The sample can be supply?
A: Yes.
Q5. Do you test all your goods before delivery?
A: Yes, we QC team have 100% test before delivery.
Q6. What is your standard width?
A: 1290mm,can be customization as per request
Q7:What is the Internal diameter?
A: 76MM
Package &specificaton Detail: Standard wooden box.
