Electrolyte Carbon Coated Aluminum Foil For Capacitor Conductive Glycol Based

China Electrolyte Carbon Coated Aluminum Foil For Capacitor Conductive Glycol Based supplier

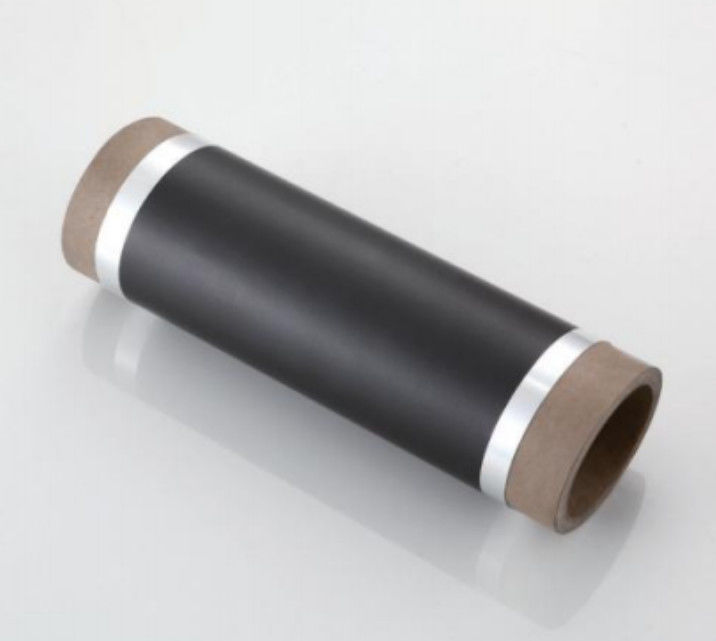

Large Image :  Electrolyte Carbon Coated Aluminum Foil For Capacitor Conductive Glycol Based

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Model Number: CWA2

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 26 per kg
Packaging Details: wooden box
Delivery Time: 20-30 days
Supply Ability: 100 ton per month
Contact Now
Detailed Product Description
Basis Materials Thickness: 0.012-0.040 Mm Coating Density: 1.0 -2.5g/m2
Coating Thickness: Above 500nm Treated Color: Black

Conductive glycol based electrolyte carbon coated aluminium foil for super capacitor.



Product Type:CAW2.



Quickly details.



Basis Materials:aluminum foil.

Density:1.0 -2.5g/m2.

Treatment: coated.

substrate Materials: Al foil.



Features:



1. Improve the surface tension.

2. Increase the adhesion between the aluminium foil and the active material.

3. Decrease the using amount of binder for the electrode.





Application:



(LFP.LMO.NCM.NCA.LNM.LTO):for electric vehicles
(LFP.LMO.NCM.NCA.LNM.LTO):energy storage





Physical and chemical properties (MTC of CAW2).



Planar density
(Both side)
1.0g/m2
1.0±0.2mg/cm2
1.5g/m2
1.5±0.3mg/cm2
2.0g/m2
2.0±0.3mg/cm2
2.5g/m2
2.5±0.3mg/cm2
Covering rate min.80% min.90% Min.100% min.100
Conductivity ~30S/cm ~30S/cm ~30S/cm ~30S/cm
Peeling Strength 2.0N 2.0 N 2.5N 2.5N
Corrosion resistance No exfoliation No exfoliation No exfoliation No exfoliation



Important Matters:



Electrolyte Carbon Coated Aluminum Foil For Capacitor Conductive Glycol Based



Usage and storage note:



Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 40-60℃ for 2 hours under vacuum ,then kept in the cabinet filled with nitrogen at room temperature.



Package:wooden carton.



Electrolyte Carbon Coated Aluminum Foil For Capacitor Conductive Glycol Based





FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.





Q2. what is your standard width?



A: 1000 mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.

.



Q3. what is the Requirements for the use of dust in the environment?



A: Avoid using the product under dust, The dust purification should be over 0.1M.
