Home ProductsCarbon Coated Aluminum Foil

Black Carbon Coated Aluminum Foil For Lithium Ion Batteries 0.1 - 1.2m Width

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

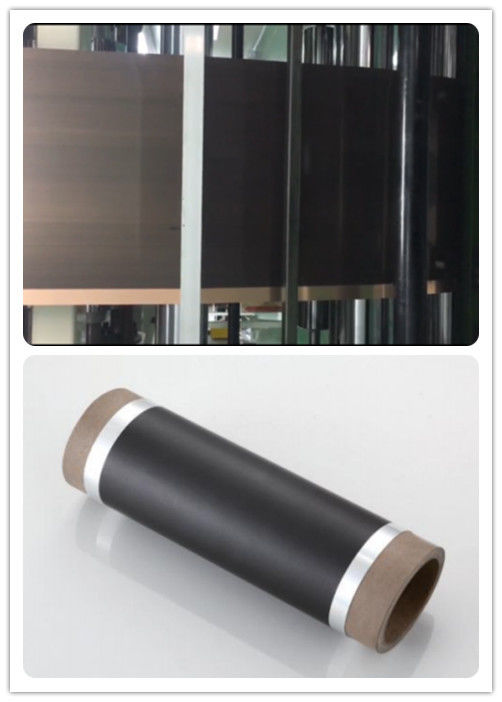

Black Carbon Coated Aluminum Foil For Lithium Ion Batteries 0.1 - 1.2m Width

China Black Carbon Coated Aluminum Foil For Lithium Ion Batteries 0.1 - 1.2m Width supplier

Large Image :  Black Carbon Coated Aluminum Foil For Lithium Ion Batteries 0.1 - 1.2m Width

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Model Number: CWA2

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 26 per kg
Packaging Details: wooden box
Delivery Time: 20-30 days
Supply Ability: 100 ton per month
Contact Now
Detailed Product Description
Basis Materials: Pure Aluminum Foil Basis Materials Thickness: 0.012-0.040 Mm
Roll Width: 0.1-1.2m Roll Length: 100-8000 Meter
Roll ID: 7.6 Cm,15.2 Cm Purity: 99.9%
Coating Density: 1.0 -2.5g/m2 Roll Treatment: Coating
Coating Materials:: Conventional Carbon Coating Thickness: Above 500nm
Packing: Wooden Box Treated Color: Black

Black carbon coated aluminum foil for Lithium-ion batteries of electric vehicles and energy storage.



Product Type:CAW2.



Quickly details.



Basis Materials:aluminum foil.

Basis Materials Thickness: 0.012-0.040 mm.

Width: 100-1000 mm.



Features:



1. Improve the surface tension.

2. Increase the adhesion between the aluminium foil and the active material.

3. Decrease the using amount of binder for the electrode.





Application:



.(LFP.LMO.NCM.NCA.LNM.LTO)for electric vehicles and energy storage.



Physical and chemical properties (MTC of CAW2).



Planar density
(Both side)
1.0g/m2
1.0±0.2mg/cm2
1.5g/m2
1.5±0.3mg/cm2
2.0g/m2
2.0±0.3mg/cm2
2.5g/m2
2.5±0.3mg/cm2
Covering rate min.80% min.90% Min.100% min.100
Conductivity ~30S/cm ~30S/cm ~30S/cm ~30S/cm
Peeling Strength 2.0N 2.0 N 2.5N 2.5N
Corrosion resistance No exfoliation No exfoliation No exfoliation No exfoliation



Important Matters:

a.>Use the product under the temperature of 20-25℃ and humidity of ≤20%RH.

b.>The coating layer is highly Hydrophilic, handle it under personal protection.



Usage and storage note:

★.Use the product in the workshop with humidity of ≤20%RH and a high dust purification.

★.Store the product below 35℃, do not open the vacuum package before use .after use ,the left product should be dried at 40-60℃ for 2 hours under vacuum ,then kept in the cabinet filled with nitrogen at room temperature.



Package:wooden carton.



Black Carbon Coated Aluminum Foil For Lithium Ion Batteries 0.1 - 1.2m Width





FAQ:



Q1: What's your delivery time ?



A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.



Q2: What's your minimum order quantity?



A: The MOQ is 150 kg.



Q3: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
