ISO 25um Electrolytic Copper Foil More Than 1 N / Mm Peel Strength

China ISO 25um Electrolytic Copper Foil More Than 1 N / Mm Peel Strength supplier

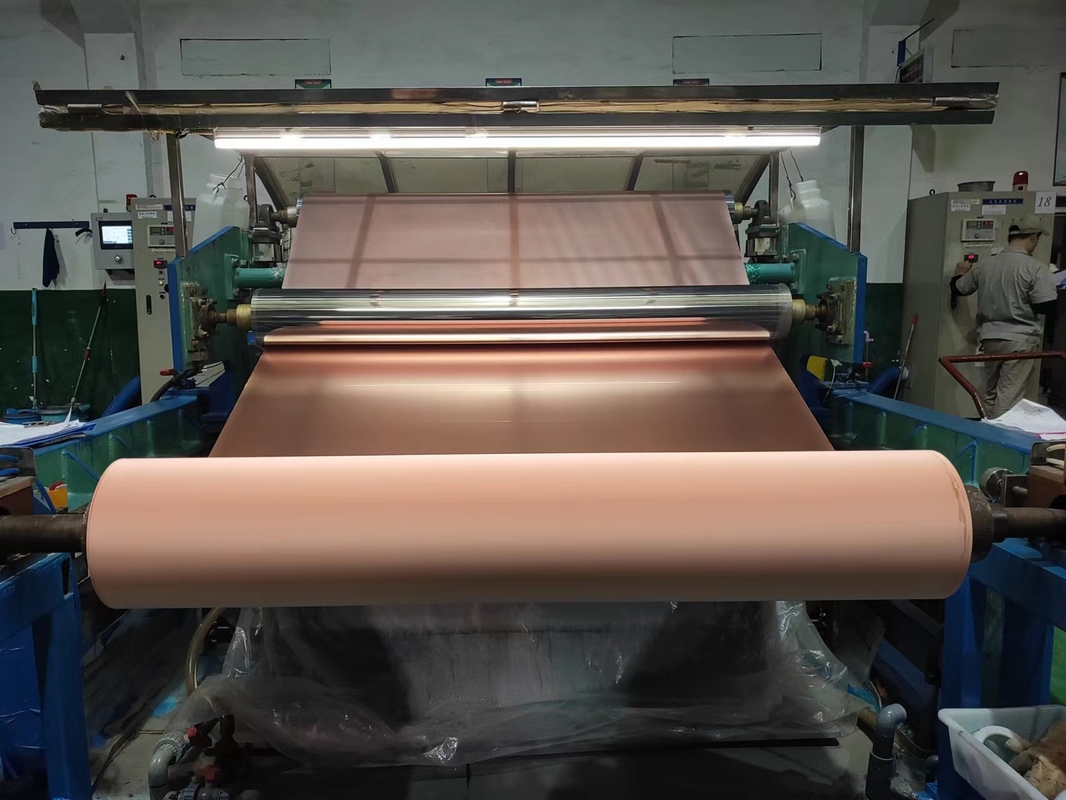

Large Image :  ISO 25um Electrolytic Copper Foil More Than 1 N / Mm Peel Strength

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Anti Oxidation: 180 Degree 60 Minutes, 180 Days 23 Degree
Color: Red Or Black Elongation: ≥ 1.5%
Peel Strength: ≥ 1 N/mm Length Per Roll: 500 - 5000 Meter

Standard thickness 25mic electrolytic ED copper foil for PCB



Introduction

The roll shape (from 1/3oz to 2oz thickness)width. In usual, it is from 500mm to 1295mm, the max width could reach to 1370mm.

The normal sheet size is 1295mm*1295mm, 1295mm*1092mm, 1295mm*990mm. it also can be cut to the size as customer’s requirement.

1/3oz, 1/2oz, 1oz, 3oz, 12oz, 14oz are popular thickness, and we can also provide surface treatment service.



Features:

1. the treated foil in gray or red

1. High peel strength

3. Good etch ability

4. Excellent adhesion to etching resist



Application:

1. Phenolic resin board

2. Epoxy board



Compare between CA copper foil and ED copper foil



1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)

2. Strength toughness: rolled copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.

3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm

4. Density: rolled copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.

5. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



Package:wooden carton











FAQ:



Q1: What's your guarantee?



A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.

Q2: What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.


Q3: What's your minimum order quantity?


A: The MOQ is 150 kg.



Q4: Can you supply the sample?



A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.



Q5. Do you test all your goods before delivery?


A: Yes, we have 100% test before delivery.



Q6. what is your standard width?



A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.



Typical properties of Standard copper foil for phenolic resin board and epoxy board.



Classification



Unit Requirement Test Method
Foil Designation / T H M 1 2 3 IPC-4562A
Nominal thickness / 12um 1/2 OZ 3/4 OZ

1

OZ

2

OZ

3

OZ

IPC-4562A
Area Weight g/㎡ 107±4 153±5 228±8 285±10 580±15 860±20

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) սm ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4

IPC-TM-650

2.3.17

Matte side(Rz) um ≤6 ≤8 ≤10 ≤10 ≤15 ≤20
Tensile Strength

R.T.(23℃)



Mpa ≥150 ≥220 ≥235 ≥280 ≥280 ≥280

IPC-TM-650

2.3.18

Elongation

R.T.(23℃)



≥2 ≥3 ≥3 ≥4 ≥4 ≥4

IPC-TM-650

2.3.18

Subject Ω.g/㎡ ≤0.170 ≤0.166 ≤0.162 ≤0.162 ≤0.162 ≤0.162

IPC-TM-650

2.5.14

Peel Strength(FR-4) N/mm ≥1.0 ≥1.3 ≥1.6 ≥1.6 ≥2.1 ≥2.1

IPC-TM-650

2.4.8

Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 180 /
H.T.(200℃) Minutes 60 /

1. Standard Width,1295(±1)mm,May according to the customer request tailor.

2. We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
