High Purity Carbon Coated Aluminum Foil 100 - 8000 Meter Roll Length

China High Purity Carbon Coated Aluminum Foil 100 - 8000 Meter Roll Length supplier

Large Image :  High Purity Carbon Coated Aluminum Foil 100 - 8000 Meter Roll Length

Product Details:

Place of Origin: CHINA
Brand Name: JIMA
Model Number: CWA2

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: usd 26 per kg
Packaging Details: wooden box
Delivery Time: 20-30 days
Supply Ability: 100 ton per month
Contact Now
Detailed Product Description
Basis Materials: Pure Aluminum Foil Basis Materials Thickness: 0.012-0.040 Mm
Roll Width: 0.1-1.2m Roll Length: 100-8000 Meter
Roll ID: 7.6 Cm,15.2 Cm Purity: 99.9%
Coating Density: 1.0 -2.5g/m2 Roll Treatment: Coating
Coating Materials:: Conventional Carbon Coating Thickness: Above 500nm
Packing: Wooden Box Treated Color: Black

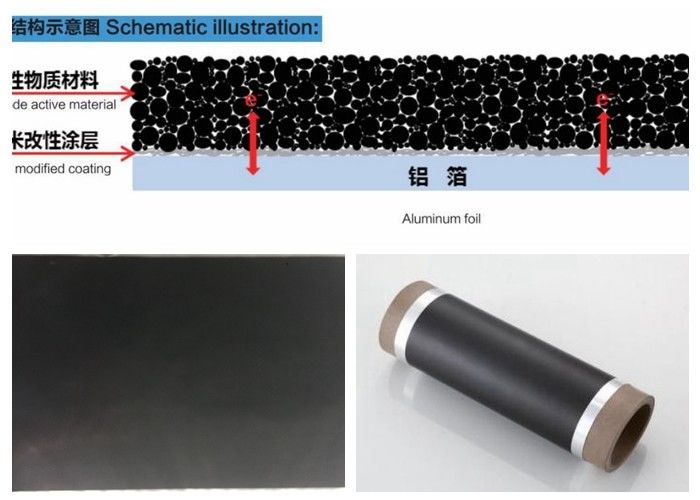

Carbon coated aluminum foil for Battery positive materials and energy storage Lithium-ion batteries.



Product Type:CAW2.



CAW2 is one of the highest-quality “CA” series product, it took five years for the research and development of the product ,conventional carbon-coated Al foil with excellent performance is produced and used as raw material for the functional coating. Due to high conductivity and small size of the conventional carbon,the obtained functional coating is very thin and highly conductive. The thickness of the functional coating is APPROX.400nm,resulting in improvement of both energy density and power density .we have independent intellectual property for this technology.



Quickly details.



Coated materials: conventional carbon-coated.

Coated thickness:min 500nm,A: 4~6um B: 2~3um.

Packing detail:Wooden box.



Features:



1. Reduce interface resistance.

2. Increase the consistency of the cell.

3. Increase the cycling life of the cell and lower the cost of the production.





Application:



. Battery positive materials and energy storage Lithium-ion batteries.



Physical and chemical properties (MTC of CAW2 ).



Planar density
(Both side)
1.0g/m2
1.0±0.2mg/cm2
1.5g/m2
1.5±0.3mg/cm2
2.0g/m2
2.0±0.3mg/cm2
2.5g/m2
2.5±0.3mg/cm2
Covering rate min.80% min.90% Min.100% min.100
Conductivity ~30S/cm ~30S/cm ~30S/cm ~30S/cm
Peeling Strength 2.0N 2.0 N 2.5N 2.5N
Corrosion resistance No exfoliation No exfoliation No exfoliation No exfoliation



Important Matters:



High Purity Carbon Coated Aluminum Foil 100 - 8000 Meter Roll Length



Package:wooden carton.



High Purity Carbon Coated Aluminum Foil 100 - 8000 Meter Roll Length



FAQ:





Q1: What's your MOQ?

A: The MOQ is 50 kg.



Q2. what is the Length per roll?

A:1000-10000 meter



Q3. what is the ID?

A: 3 and 6 inch also accept custom
