Max width 1360mm Shielding Electromagnetic electrodeposited electrolytic ED copper foil 105mic for Shielding application
| Features |
1. the treated foil in gray or red |
| |
2.High peel strength |
| |
3.Good etch ability |
| |
4. Excellent adhesion to etching resist |
| Max width |
1360mm,1290mm,1380mm |
| Thickness |
105um,105micron,3oz,0.105mm |
| Internal Diameter |
76/152,or custom |
| Length per roll |
500-5000meter |
| Standard |
IPC 4562,IPC-TM-650 |
| |
1.Phenolic resin board |
| Application: |
2.Epoxy board |
| |
3.shielding copper foil |
MTC of Shielding Electromagnetic Copper Foil
|
Classification
|
Unit |
Requirement |
Test Method |
| Foil Designation |
/ |
T |
H |
M |
1 |
2 |
3 |
IPC-4562A |
| Nominal thickness |
/ |
12um |
1/2 OZ |
3/4 OZ |
1
OZ
|
2
OZ
|
3
OZ
|
IPC-4562A |
| Area Weight |
g/㎡ |
107±4 |
153±5 |
228±8 |
285±10 |
580±15 |
860±20 |
IPC-TM-650
2.2.12.2
|
| Purity |
％ |
≥99.8 |
IPC-TM-650
2.3.15
|
| Foil Profile |
Shiny side (Ra) |
սm |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
≤0.4 |
IPC-TM-650
2.3.17
|
| Matte side(Rz) |
um |
≤6 |
≤8 |
≤10 |
≤10 |
≤15 |
≤20 |
| Tensile Strength |
R.T.(23℃)
|
Mpa |
≥150 |
≥220 |
≥235 |
≥280 |
≥280 |
≥280 |
IPC-TM-650
2.3.18
|
| Elongation |
R.T.(23℃)
|
％ |
≥2 |
≥3 |
≥3 |
≥4 |
≥4 |
≥4 |
IPC-TM-650
2.3.18
|
| Subject |
Ω.g/㎡ |
≤0.170 |
≤0.166 |
≤0.162 |
≤0.162 |
≤0.162 |
≤0.162 |
IPC-TM-650
2.5.14
|
| Peel Strength(FR-4) |
N/mm |
≥1.0 |
≥1.3 |
≥1.6 |
≥1.6 |
≥2.1 |
≥2.1 |
IPC-TM-650
2.4.8
|
| Pinholes&porosity |
Number |
No |
IPC-TM-650
2.1.2
|
| Anti-oxidization |
R.T.(23℃) |
day |
180 |
/ |
| H.T.(200℃) |
Minutes |
60 |
|
1.Standard Width,1295(±1)mm,Max width is 1380mm,May according to the customer request tailor.

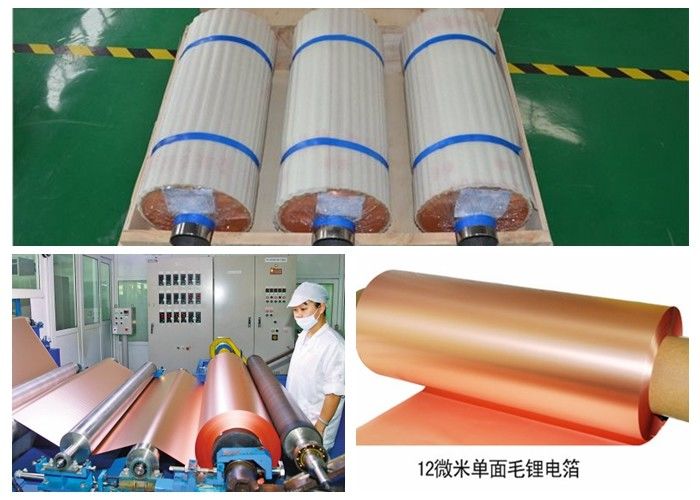

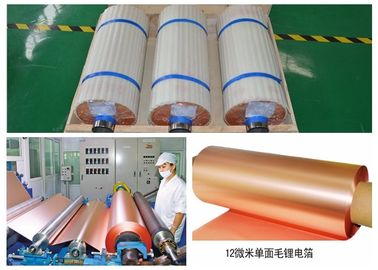

Packing and Mark of Electromagnetic Shielding copper foil :
FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: The MOQ is 150 kg.
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width and Max width?
A: 1290mm and 1380mm,we accept customization for the width. we can cut it into any size as per your request.
Q9.Are the package suitable For export ?
Yes , it is suitable for export.
Q11. Can you provide COA?
Yes , we can.
Q13. Can we come to China visit factory ?
Yes ,you can .
Q14. Can you cut into small size?
Yes, we can.
Q16. How to save after the box opened?
Keep the dry environment,and is better use it in 30days.
