Conductive Thin Copper Foil High Conductivity 99.8% Cu Content Purity

Certification
Good quality Rolled Copper Foil for sales
Good quality Rolled Copper Foil for sales
I'm Online Chat Now

Conductive Thin Copper Foil High Conductivity 99.8% Cu Content Purity

China Conductive Thin Copper Foil High Conductivity 99.8% Cu Content Purity supplier

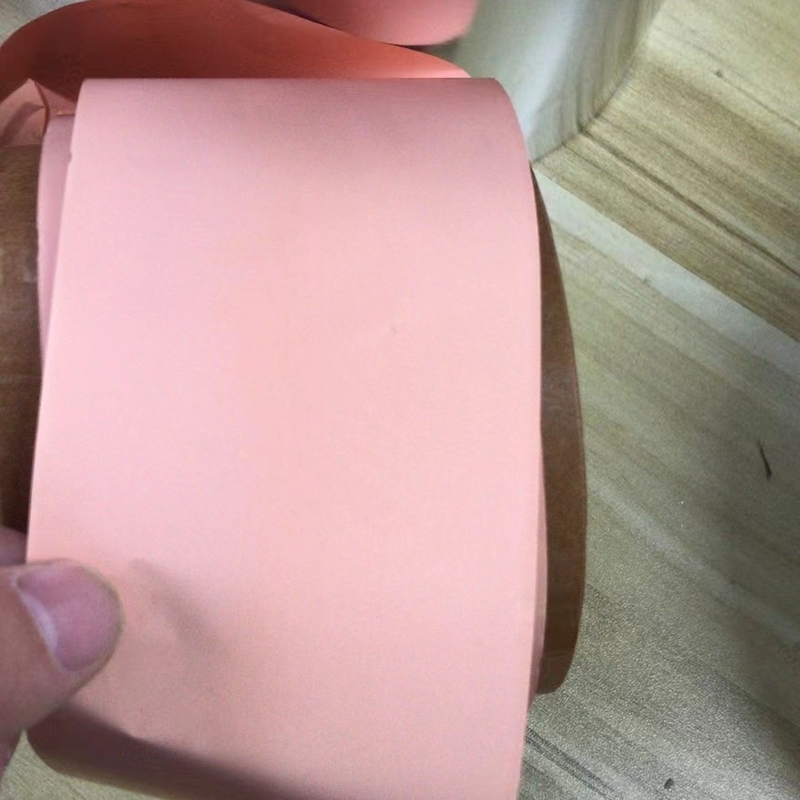

Large Image :  Conductive Thin Copper Foil High Conductivity 99.8% Cu Content Purity

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Thickness: 0.012mm Color: Red Or Black
Foil Profile: RA≤0.15μm,Rz≤1.7μm Application:: FCCL,FPC
Length Per Roll: 500 - 5000 Meter

VLP jumbo coil 0.012mm high conductivity ED electrodeposited copper foil for LED layer of HDI





Introduction.



1. back/red, Thickness Range: 12um,

2. Width: 5-1380 mm,standard width:1290mm

3. Cu Content: 99.8%

4. Package:wooden carton



Characteristic.



Very Low profile enables to make fine circuit pattern,Good folding endurance,High conductivity,Zinc-free.



VLP copper foil use:



1. Automotive FCCL.

2. Electrical FPC.



RFQ:



Q1. Can we come to China visit factory ?

Yes ,you can .



Q2. Can you cut into small size?

Yes, we can.



Q3.is the copper foil Floating in box?

Yes, it is .





Packaging: Wooden pacakge



Typical properties of VLP-S-B/R copper foil(for FPC or inner layer of HDI).



Classification



Unit Requirement Test Method
Foil Designation /   1 H M 1 IPC-4562A
Nominal thickness / 10um 12um 1/2 OZ (18um) 3/4 OZ(25um) 1 OZ(35um) IPC-4562A
Area Weight g/㎡ 98±4 107±4 153±5 228±8 285±10

IPC-TM-650

2.2.12.2

Purity ≥99.8

IPC-TM-650

2.3.15

Foil Profile Shiny side(Ra) սm ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5

IPC-TM-650

2.3.17

Matte side(Rz) um ≤2.5 ≤2.5 ≤2.5 ≤2.5 ≤2.5
Tensile Strength R.T.(23℃) Mpa ≥300 ≥300 ≥300 ≥300 ≥300

IPC-TM-650

2.3.18

H.T.(180℃) Mpa ≥200 ≥200 ≥200 ≥200 ≥200
Elongation R.T.(23℃) ≥4 ≥5 ≥6 ≥8 ≥10

IPC-TM-650

2.3.18

H.T.(180℃) ≥5 ≥6 ≥7 ≥8 ≥8
Peel Strength(FR-4) N/mm ≥0.8

IPC-TM-650

2.4.8

Ibs/in ≥4.6
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) 180days /
H.T.(200℃) 60 Minutes /



Standard Width 1295mm,max width 1370(±1)mm,May according to the customer request tailor.We test the peel strength with PI ,please reconfirm with your pp.
