| Place of Origin: | china |
| Brand Name: | JIMA |
| Certification: | SGS, ISO,Reach, RoHS |
| Model Number: | EDCU-HC |
| Minimum Order Quantity: | 100kg |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 Ton per month |
| Pinholes: | None | Thickness: | 1/2 Oz,3/4 Oz,1 Oz,2 Oz, |
|---|---|---|---|
| Elongation: | ≥ 1.5% | Tensile Strength: | ≥ 160 MPa |
| Peel Strength: | ≥ 1 N/mm | Length Per Roll: | 500 - 5000 Meter |
| Inter Diameter: | 76 Mm，152 Mm， 3 Inch，6 Inch | ||
| High Light: | thin copper sheet,conductive copper foil |
||

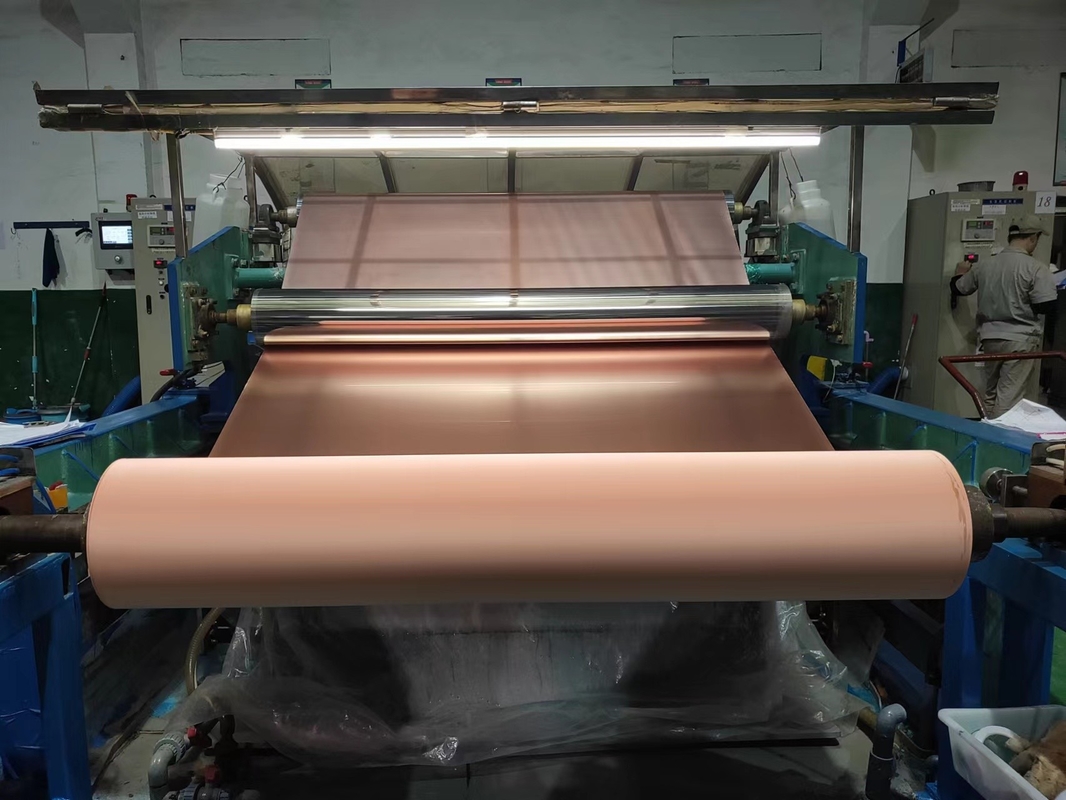

3/4oz High ductility electrolytic copper foil for Epoxy board
Specifications:
We provide the 1/4oz/ft²to 3oz/ft²(nominal thickness 12μm~70μm)very-low-profile, high temperature elongation, and heavy (VLP-THE-HF)ED copper foils, they are coil products; and the max width is 520mm. They have the perfect physical characteristics of the fine and uniform crystal structure, the low profile, the high intensity, and high elongation, and they also have the PCB manufacturing performances of the high peel strength, no copper powder movement, the clear figure. They can be used in production of the extreme current PCBs which are used in the extremer circuits of the electric power and the motor vehicles.
Thickness: 1/3OZ～2OZ(12µm～70µm)
Features:
1. Color red,High peel strength
2. Good etch ability and Excellent adhesion to etching resist
Application:
1. Polyimide board
2. Epoxy board
Difference between CA copper foil and ED copper foil
. Density: RA copper foil higher density, the surface is relatively smooth, conducive to the production of printed circuit board after the rapid transmission of the signal, so high-frequency high-speed transmission, fine lines printed circuit board also used some calendering copper Foil.
. Surface treatment width:RA copper foil be limited by Surface treatment widest effective width of 520mm.
Package:wooden carton
FAQ:
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q3. Can you provide COA?
Yes , we can.
Q4. Is it the Fumigation carton box?
Yes ,it is .
Typical properties of high ductility copper foil
|
Classification
|
Unit | Requirement | Test Method | |||||||||||
| Foil Designation | / | T | H | M | 1 | 2 | 3 | IPC-4562A | ||||||
| Nominal thickness | / | 12um | 1/2 OZ | 3/4 OZ |
1 OZ |
2 OZ |
3 OZ |
IPC-4562A | ||||||
| Area Weight | g/㎡ | 107±4 | 153±5 | 228±8 | 285±10 | 580±15 | 860±20 |
IPC-TM-650 2.2.12.2 |
||||||
| Purity | ％ | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||||||||
| Foil Profile | Shiny side (Ra) | սm | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
IPC-TM-650 2.3.17 |
|||||
| Matte side(Rz) | um | ≤6 | ≤8 | ≤10 | ≤10 | ≤15 | ≤20 | |||||||
| Tensile Strength |
R.T.(23℃)
|
Mpa | ≥150 | ≥150 | ≥235 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
|||||
| Elongation |
R.T.(23℃)
|
％ | ≥5 | ≥5 | ≥10 | ≥10 | ≥15 | ≥15 |
IPC-TM-650 2.3.18 |
|||||
| Subject | Ω.g/㎡ | ≤0.170 | ≤0.166 | ≤0.162 | ≤0.162 | ≤0.162 | ≤0.162 |
IPC-TM-650 2.5.14 |
||||||
| Peel Strength(FR-4) | N/mm | ≥1.0 | ≥1.3 | ≥1.6 | ≥1.6 | ≥2.1 | ≥2.1 |
IPC-TM-650 2.4.8 |
||||||
| Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||||||||
| Anti-oxidization | R.T.(23℃) | day | 180 | / | ||||||||||
| H.T.(200℃) | Minutes | 60 | / | |||||||||||
3. Standard Width,1380(±1)mm,May according to the customer request tailor.
We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.
