ISO Approval Battery Copper Foil Sheet , LB Single Shiny Copper Sheet Roll

China ISO Approval Battery Copper Foil Sheet , LB Single Shiny Copper Sheet Roll supplier

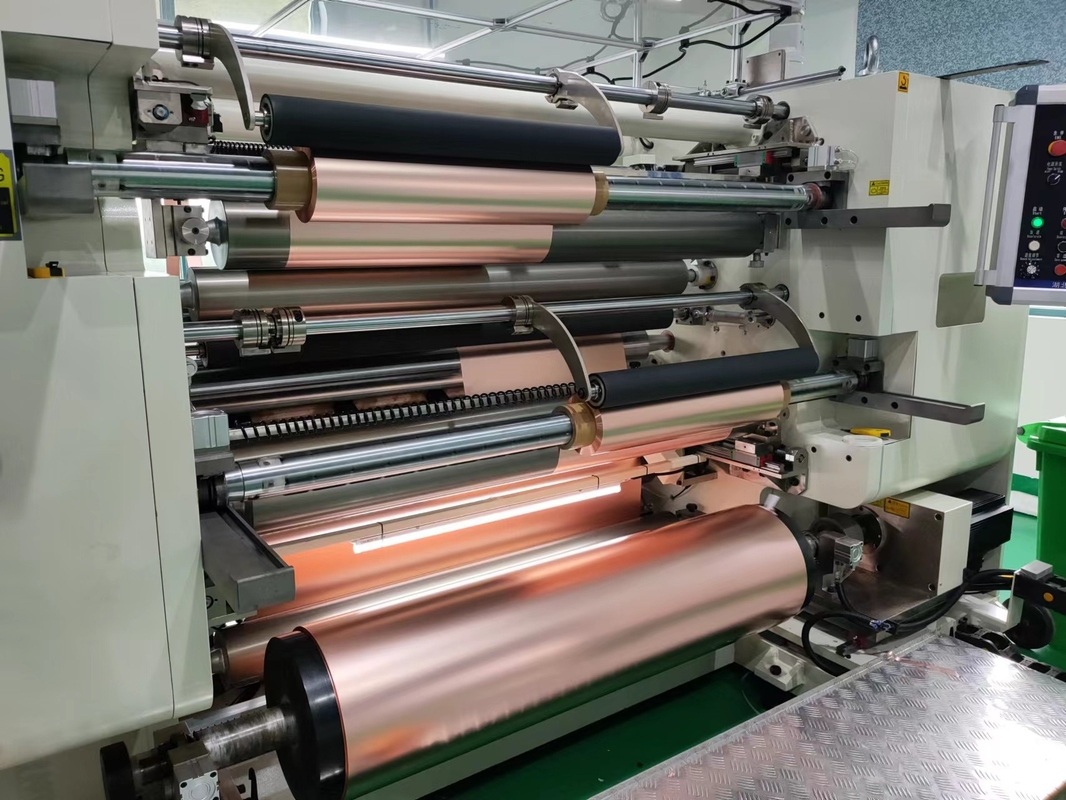

Large Image :  ISO Approval Battery Copper Foil Sheet , LB Single Shiny Copper Sheet Roll

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Pinholes: None
Tensile Strength: ≥ 160 MPa Peel Strength: ≥ 1 N/mm
Length Per Roll: 500 - 5000 Meter Inter Diameter: 76 Mm,152 Mm, 3 Inch,6 Inch

Battery copper foil 10 mic LB single shiny ED copper foil Parallel hybrid electric vehicle (PHEV)



Overview:

Available Thickness:0.010mm

Available Width: 5-520 mm

Available Length: 500-5000 M

Available ID: 76 mm,152 mm

Li Ion Battery Anode Current Collector, Electrolytic Rolled Copper Foil

1. Width: According to customer's request.

2. Application: Lithium ion battery current collector materials



Package:wooden box





FAQ:



1. Quality guarantee?



A: All our products have 6 months guarantee after received goods.


2. What's your delivery time ?


A: The common delivery time is 5-35 working days. The specific delivery time depends on the items and the quantity of your order.



3. what is your standard width?



A: we accept customization for the width. Common is 1380mm



Typical properties of electrolytic ED copper foil lithium battery

Classification Unit Requirement   Test Method
Foil Designation /               IPC-4562A
Nominal thickness / 6um 7um 8um 9/10um 12um 15um 20um IPC-4562A
Area Weight g/㎡ 54±1 63±1.25 72±1.5 89±1.8 107±2.2 133±2.8 178±3.6

IPC-TM-650

2.2.12.2

Purity ≥99.9

IPC-TM-650

2.3.15

Foil Profile Shiny side (Ra) um 0.1-0.4

IPC-TM-650

2.3.17

Matte side(Rz) um 0.8-2.0
Tensile Strength R.T.(23℃) Mpa >280

IPC-TM-650

2.3.18

H.T.(180℃) >200
Elongation R.T.(23℃) >5

IPC-TM-650

2.3.18

H.T.(180℃) >3
Pinholes&porosity Number No

IPC-TM-650

2.1.2

Anti-oxidization R.T.(23℃) day 90   /
H.T.(160℃) Minutes 15   /

6. Max Width,1295(±1)mm,May according to the customer request tailor.
