Place of Origin: | china |
Brand Name: | JIMA |
Certification: | SGS, ISO,Reach, RoHS |
Model Number: | EDCU-HC |
Minimum Order Quantity: | 100kg |
---|---|
Price: | negotiation |
Packaging Details: | wooden carton |
Delivery Time: | 5-15 days |
Payment Terms: | T/T, L/C |
Supply Ability: | 1000 Ton per month |
Purity: | 99.95% | Pinholes: | None |
---|---|---|---|
Anti Oxidation: | 180 Degree 60 Minutes, 180 Days 23 Degree | Inter Diameter: | 76 Mm,152 Mm, 3 Inch,6 Inch |
Name: | Low Profile 10 Mic Copper Foil Roll , SGS Matt Treated Copper Foil 10um | ||
High Light: | SGS 10Mic copper foil tape,76Mm conductive copper foil,152Mm conductive copper foil |

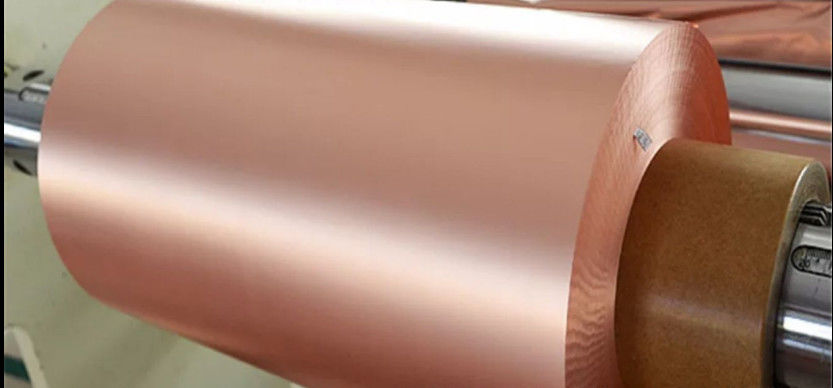

Low Profile 10 Mic Copper Foil Roll ,10um Electrolytic Copper Foil for FCCL
low profile enables to make fine circuit pattern.
Casting and lamination type FCCL.
Classification |
Unit | Requirement | Test Method | |||||
Foil Designation | / | 1 | H | M | 1 | IPC-4562A | ||
Nominal thickness | / | 10um | 12um | 1/2 OZ(18um) | 3/4 OZ(25um) | 1 OZ(35um) | IPC-4562A | |
Area Weight | g/㎡ | 98±4 | 107±4 | 153±5 | 228±8 | 285±10 |
IPC-TM-650 2.2.12.2 |
|
Purity | % | ≥99.8 |
IPC-TM-650 2.3.15 |
|||||
Foil Profile | Shiny side(Ra) | սm | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 | ≤2.5 |
IPC-TM-650 2.3.17 |
Matte side(Rz) | um | ≤4.0 | ≤4.5 | ≤5.5 | ≤6.0 | ≤8.0 | ||
Tensile Strength | R.T.(23℃) | Mpa | ≥260 | ≥260 | ≥280 | ≥280 | ≥280 |
IPC-TM-650 2.3.18 |
H.T.(180℃) | Mpa | ≥180 | ≥180 | ≥180 | ≥180 | ≥180 | ||
Elongation | R.T.(23℃) | % | ≥5 | ≥6 | ≥8 | ≥10 | ≥12 |
IPC-TM-650 2.3.18 |
H.T.(180℃) | % | ≥5 | ≥6 | ≥7 | ≥8 | ≥8 | ||
Peel Strength(FR-4) | N/mm | 0.7 | 0.8 | 1.0 | 1.1 | 1.2 |
IPC-TM-650 2.4.8 |
|
Ibs/in | 4 | 4.6 | 5.7 | 6.3 | 6.9 | |||
Pinholes&porosity | Number | No |
IPC-TM-650 2.1.2 |
|||||
Anti-oxidization | R.T.(23℃) | 180days | / | |||||
H.T.(200℃) | 60 Minutes | / |
Standard Width 1290mm,max width 1380(±1)mm,May according to the customer request.
Q1: What's your guarantee?
A: All our products have 6 months guarantee after received goods, if any quality problem can contact us.
Q2: What's your minimum order quantity?
A: The MOQ is 50 kg.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
