Good Anti Oxidation Performance 2 OZ Sheet Metal Copper , ED RTF Copper Foil

China Good Anti Oxidation Performance 2 OZ Sheet Metal Copper , ED RTF Copper Foil supplier

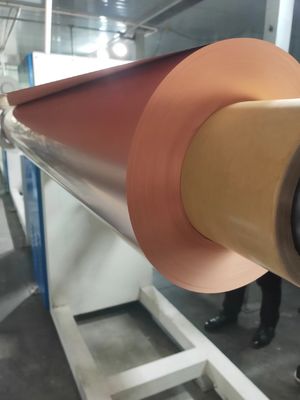

Large Image :  Good Anti Oxidation Performance 2 OZ Sheet Metal Copper , ED RTF Copper Foil

Product Details:

Place of Origin: china
Brand Name: JIMA
Certification: SGS, ISO,Reach, RoHS
Model Number: EDCU-HC

Payment & Shipping Terms:

Minimum Order Quantity: 100kg
Price: negotiation
Packaging Details: wooden carton
Delivery Time: 5-15 days
Payment Terms: T/T, L/C
Supply Ability: 1000 Ton per month
Contact Now
Detailed Product Description
Purity: 99.95% Thickness: 1/2 Oz,3/4 Oz,1 Oz,2 Oz,
Peel Strength: ≥ 1 N/mm Foil Profile: RA≤0.15μm,Rz≤1.7μm
Application:: CCL,PCB Length Per Roll: 500 - 5000 Meter

CEM-3 Good etch ability 2oz single gray HTE ED copper foil for Polyimide board





Application:



1. Polyimide board.

2. Epoxy board.

3. PCB and antenna PCB.



Specification:



1. Single side side treatment low profile foil in gray.

2. Thickness: 0.070 mm.

3. Width: 5-1380 mm,standard width:1290mm.

4. .zinc-free.

5. high conductivity.



Feature



. High temperature anti-oxidization performance.

. High temperature elongation performance.

. Environment friendly production.





Compare between CA copper foil and ED copper foil.



1. Process: rolled copper foil (Rolling process),ED copper foil (Electrodeposition process)



2. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm



3. Surface treatment width:rolled copper foil be limited by Surface treatment widest effective width of 520mm.



HTE ED copper foil



Thickness um 9 12 18 25 35 70

IPC 4562

4.6.3.1



Area weight g/m² 80±1 107±3 153± 215±5 285±5 585±8

IPC 4562

4.6.3.2

Roughness (RA) μm 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4 0.2-0.4

IPC 4562

4.6.9

(RZ) μm <6.0 <6.5 <8.0 <9.0 ≤10.0 <15



Copper≧

% 99.8

IPC 4562

4.6.3.1



Tensile Strength state normal Mpa >300 >300 >300 >300 >300 >280

IPC 4562

4.6.4

state temper (180℃) Mpa >15.0 >18.0 >18.0 >18.0 >18.0 >18.0
ElongationI state normal % >3.0 >3.0 >5.0 >6.0 >10.0 >10.0

IPC 4562

3.5.3

state temper (180℃) % >2.0 >2.5 >2.5 >3.0 >5.0 >5.0
Peel strength N/mm >1.0 >1.05 >1.35 >1.70 >1.8 >2.0

IPC 4562

4.6.7

High temperature oxidation resistance(200℃,

40min)

No color change Standard
Solderability Good Standard
Solderability Good

IPC 4562

4.6.12

3. Standard Width,1295(±1)mm,May according to the customer request tailor.

We test the peel strength with FR-4(Tg140) prepreg ,please reconfirm with your pp.



Package:wooden carton





FAQ:



Q10. Is it possible be zinc free copper foil?

Yes ,it is possible.



Q11. Can you provide COA?

Yes , we can.



Q12. Is it the Fumigation carton box?

Yes ,it is .
